Product description

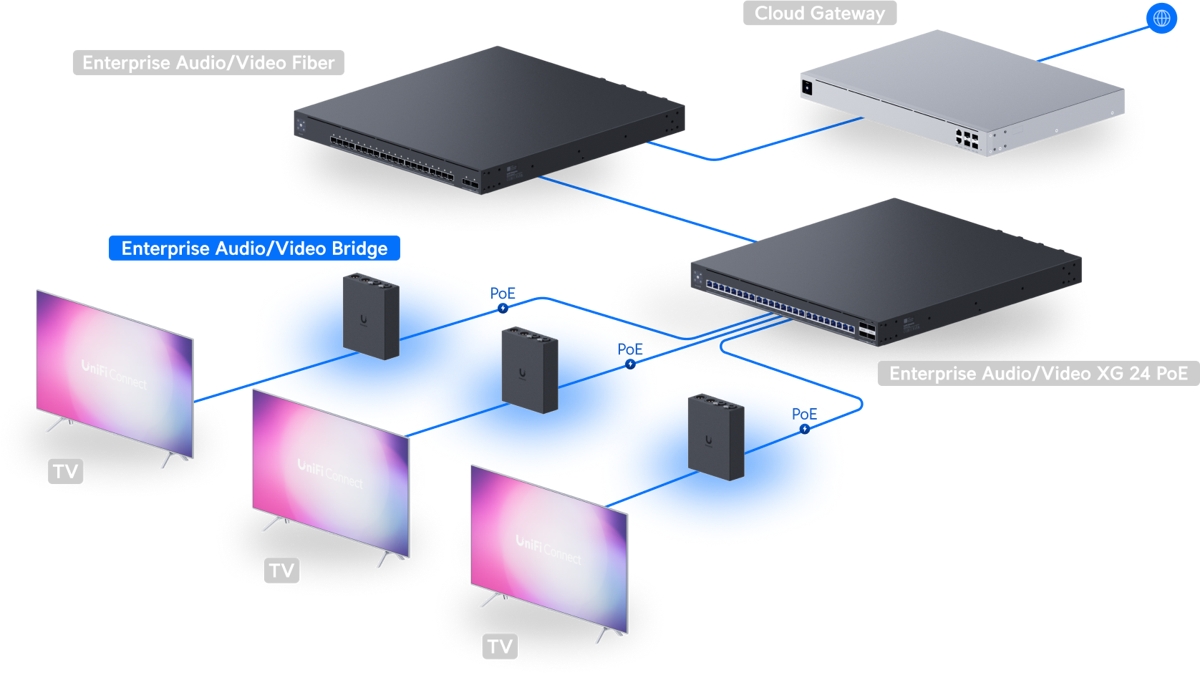

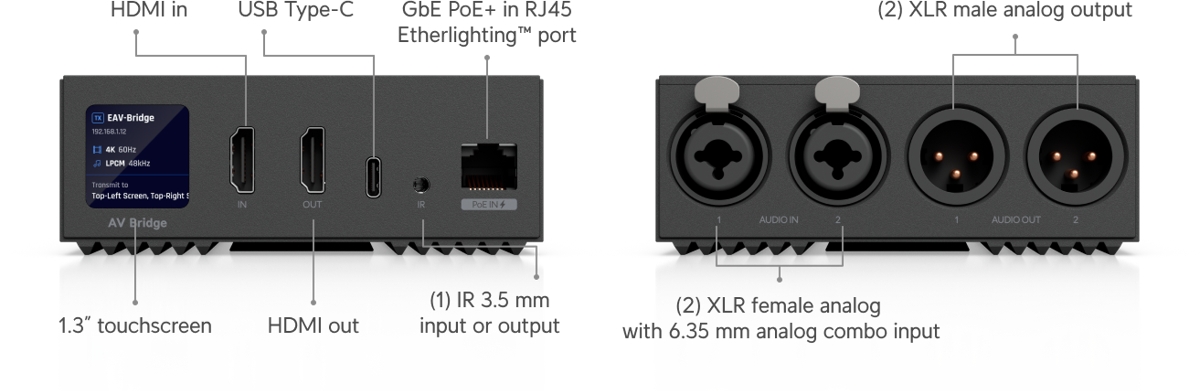

The Ubiquiti Enterprise Audio/Video Bridge is an AV-over-IP transceiver for transmitting 4K60 HDMI 2.0 video and XLR audio. It operates as both a source and a receiver, supports 1-to-1 and 1-to-N streaming and enables video wall configurations up to 8x8 screens. Power and data transmission are provided via a 1Gbps PoE+ port.

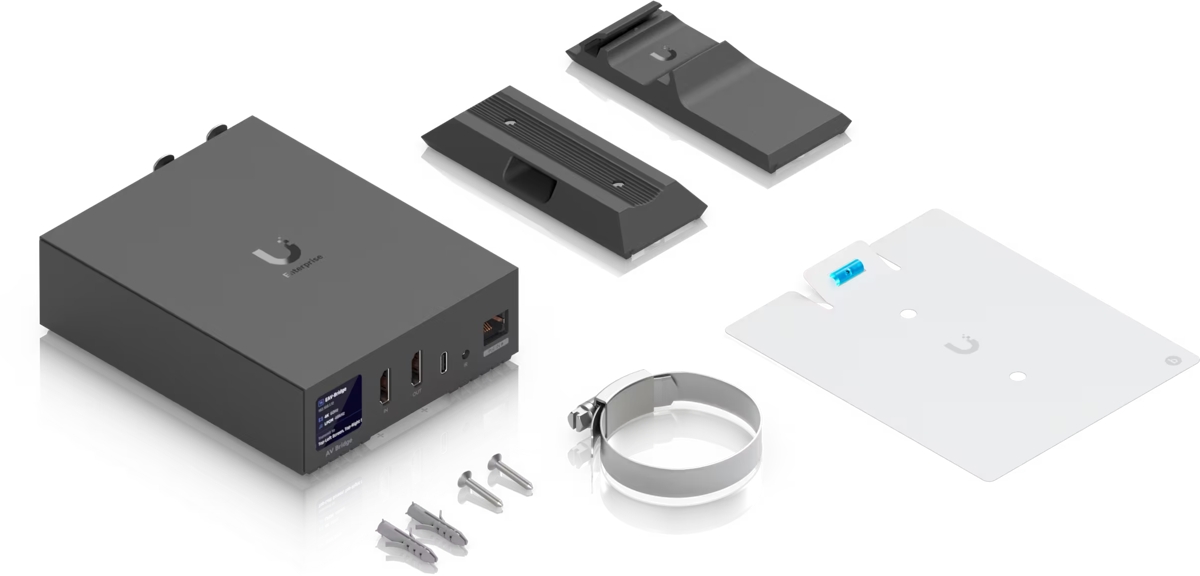

Package contents
- Device
- Wall, pole or DIN rail mounting kit
Technical parameters
LAN ports
Power over Ethernet
802.3at
Designed for mast diameter [mm]
38 up to 50
Design
On the wall, On the mast, DIN rail
USB-C ports
1
Management
UniFi Network
HDMI interface (resolution) [pixels]
4096 x 2160 (4K UHD)

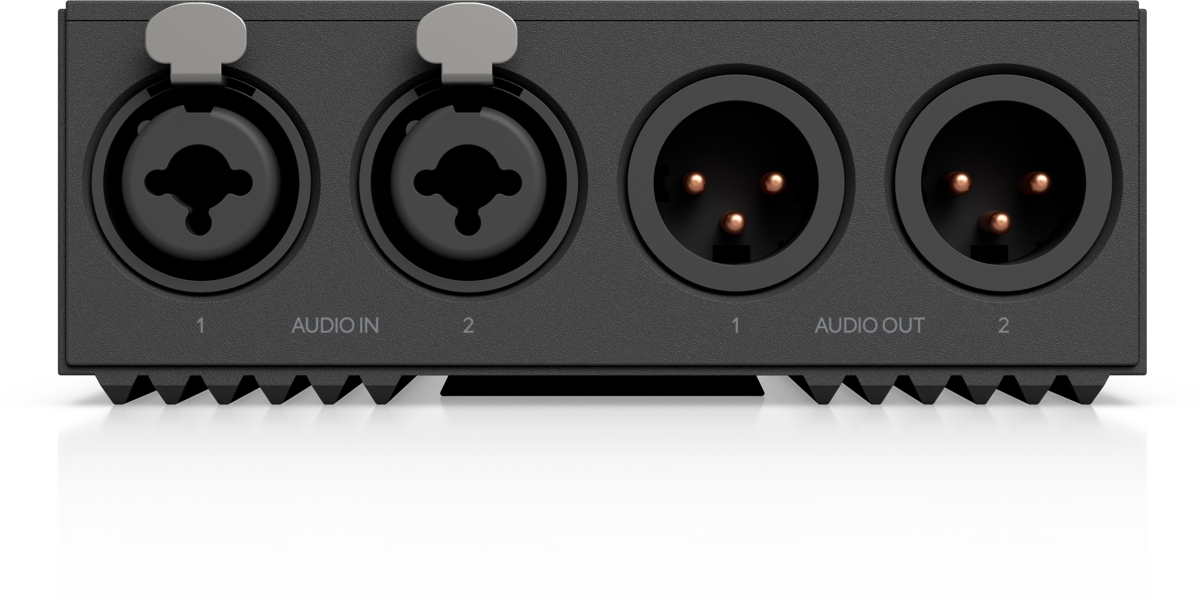

Audio
2 inputs, 2 outputs
Power type
PoE
LAN speed
(1) 10/100/1000Mbps
Max. power consumption [W]
14
Buttons
Reset
Operating temperature [°C]
-5 up to 40
Weight [g]
560

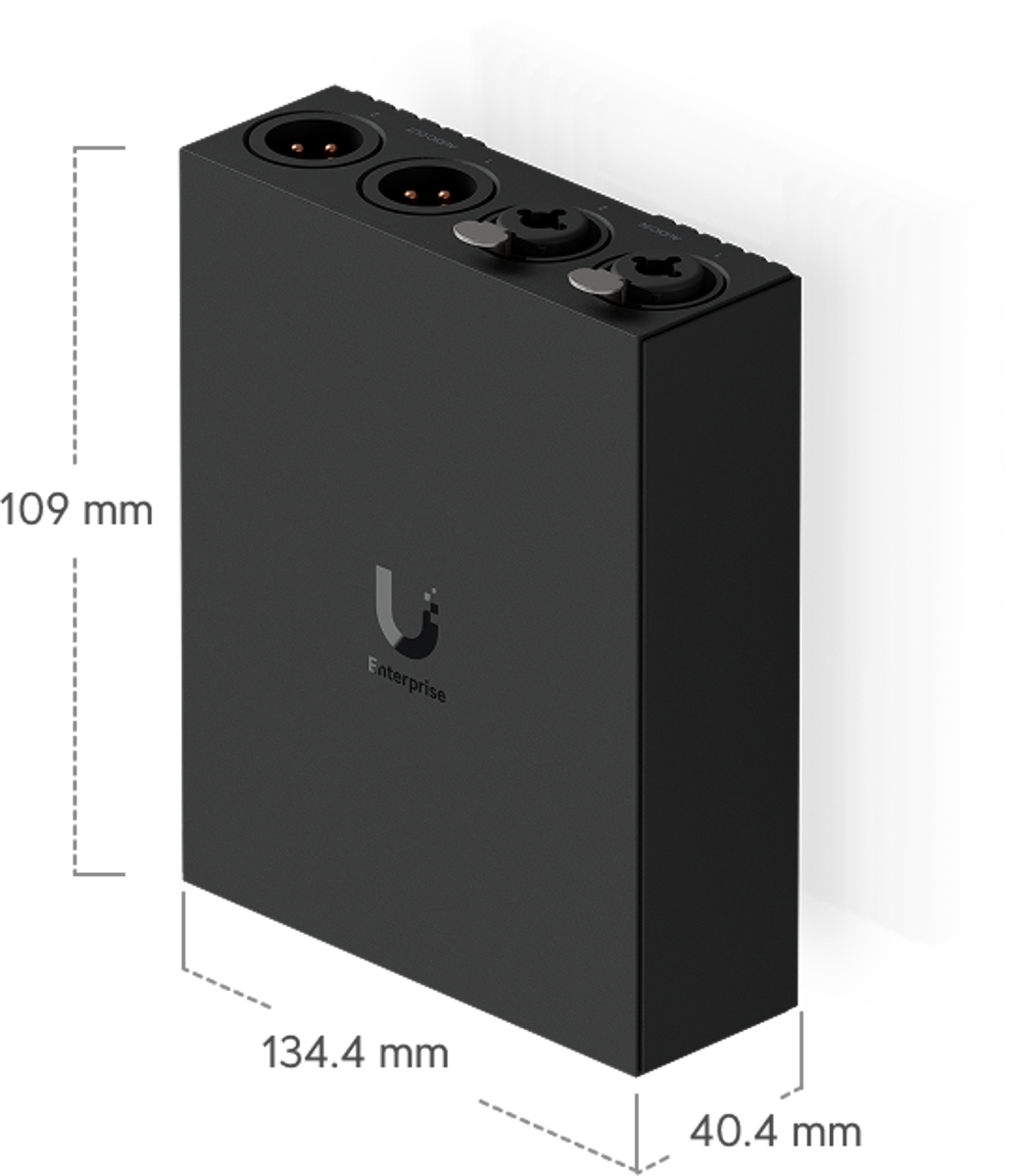

Width [mm]
134
Height [mm]
40
Depth [mm]
109
HDMI interface
Yes
Other features
Touchscreen
