Product description

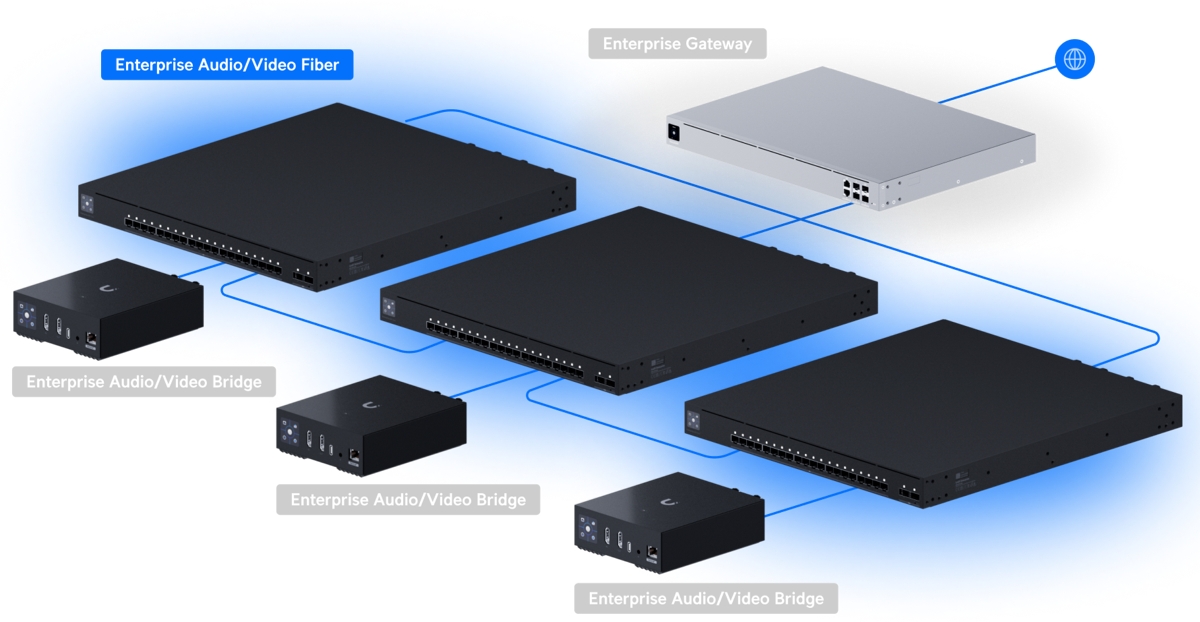

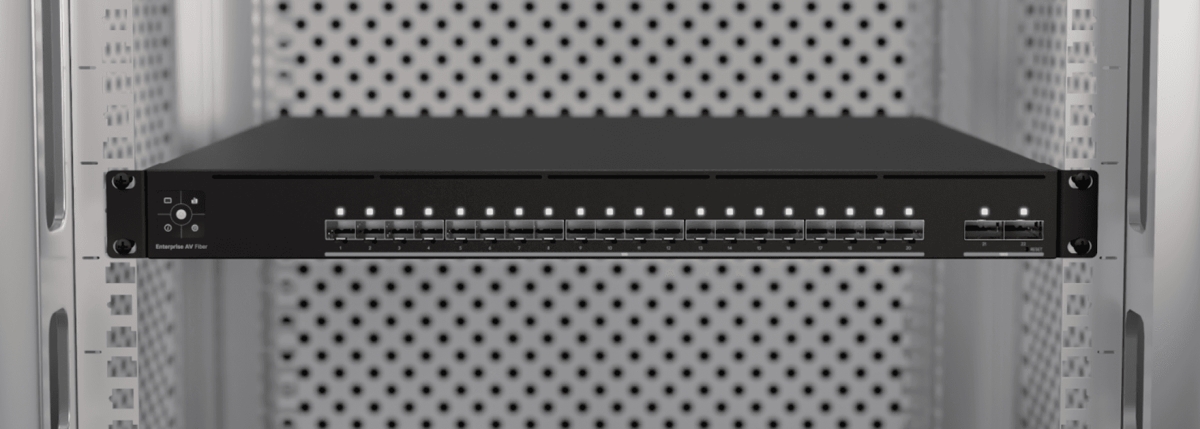

The Ubiquiti Enterprise Audio/Video Fiber is a high-end UniFi optical L3 switch designed for professional A/V installations, offering (20) SFP+ slots, (2) QSFP28 uplink slots, (1) SMA input for time synchronization via GPS clocks and redundant hot-swap power supplies and fans.
Key features

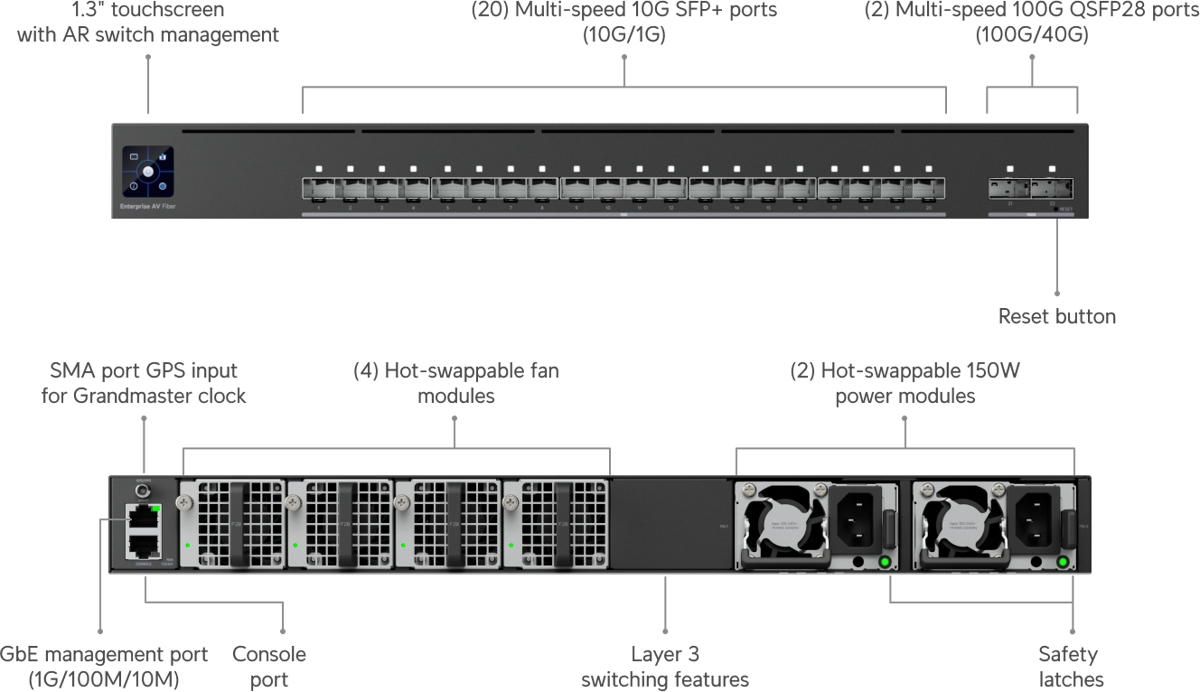

- (20) SFP+ slots, (2) QSFP28 uplink slots, (1) 1Gbps management port and (1) RJ45 console port
- GPS time synchronization - precise alignment of audio and video streams for smooth playback and minimal latency
- Wide range of supported AV protocols - SMPTE ST 2110, SDVoE, Dante, AES67 and others

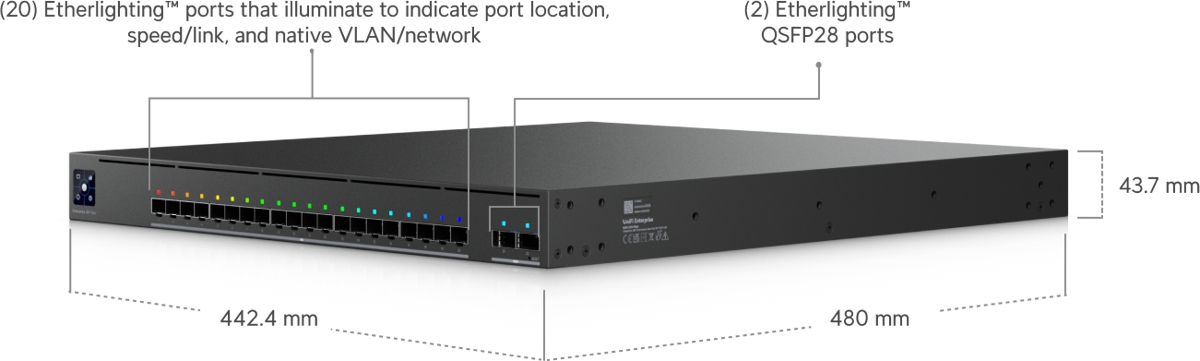

- Etherlighting - visual indication of port status and additional information

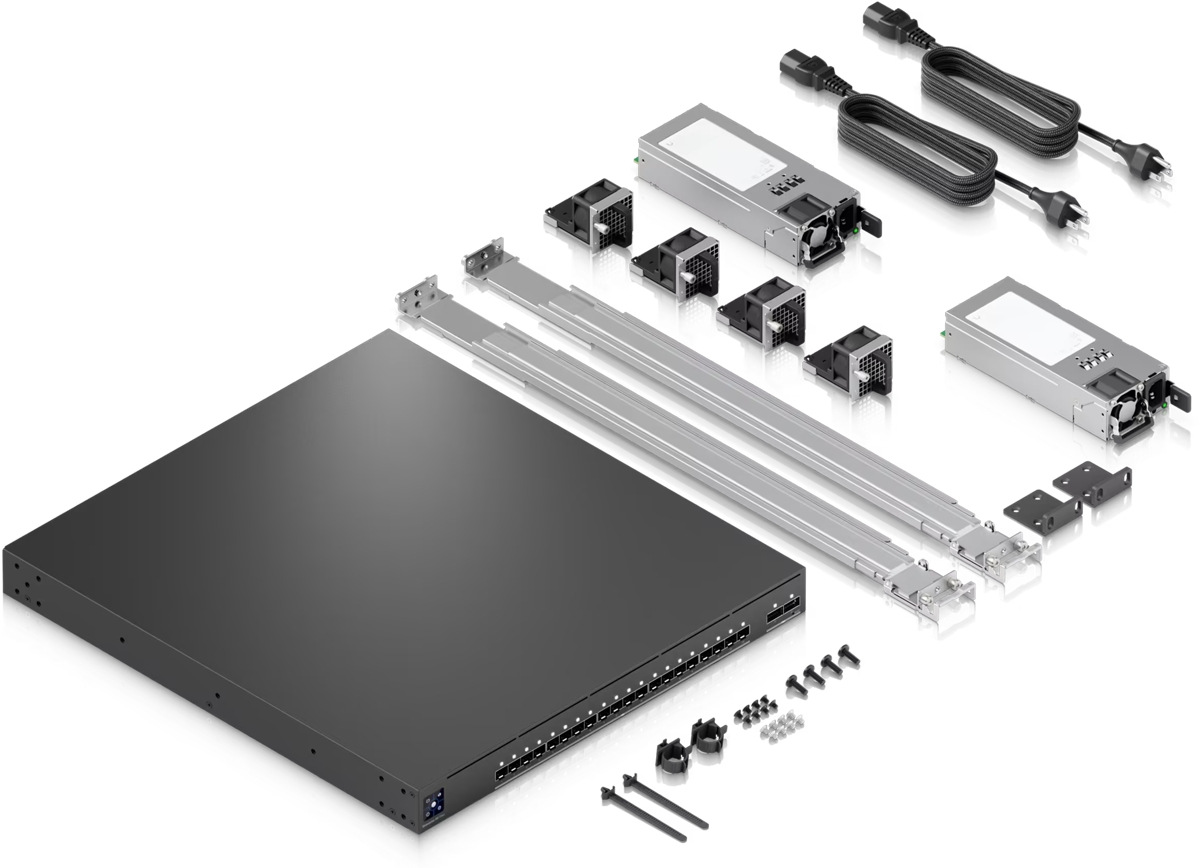

Package contents
- Device
- (2) Power supplies

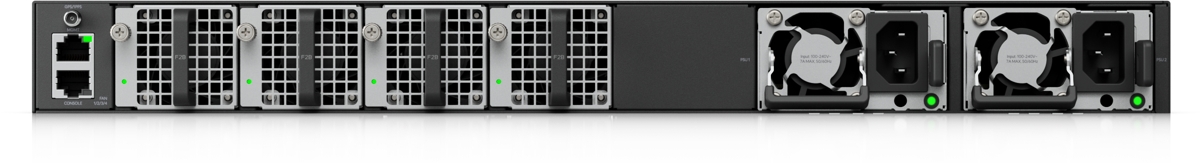

- (4) Hot-swap fans

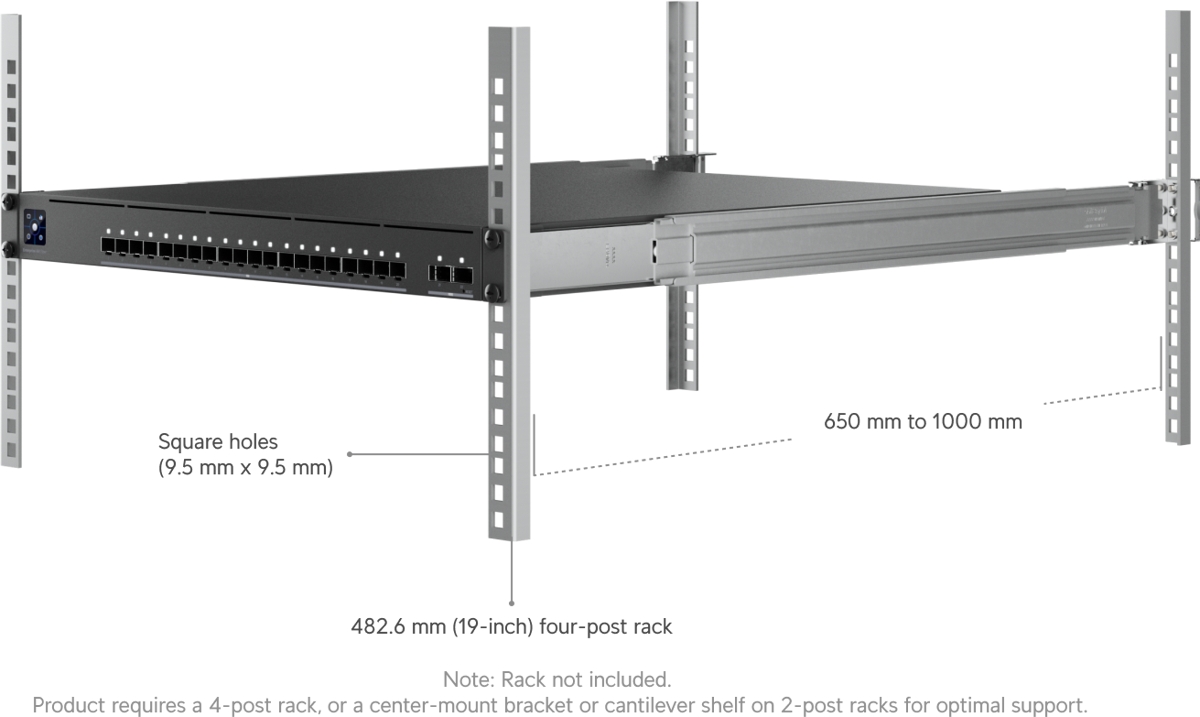

- Rack mounting kit
Download
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
800
MAC address table
32000
Packet forwarding rate [Mpps]
595
Management
UniFi Network
Features
DHCP snooping, QoS, VLAN, L3
Power type
Mains power (230V)
Fans
Yes
Management LAN
Yes
RJ45 ports 1G
1
SFP+ cages
20
QSFP28 cages
2
Optical interfaces
(20) 1G/10G + (2) 40G/100G
Redundant power supply
Yes
Max. power consumption [W]
150
Serial port
RJ45
Chassis design
Metal
Buttons
Reset
Operating temperature [°C]
-5 up to 40
Width [mm]
442
Height [mm]
44
Depth [mm]
480
Other features
Touchscreen
