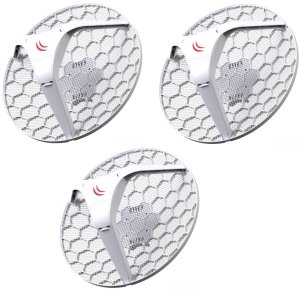

MikroTik RouterBOARD RBLHG-5nD-3, LHG 5 Tripack, 3 pack
Your price incl. VAT (20.0%)
167.76 EUR
✅ In Stock 90+ Бр.
Planned Delivery Date by Courier to you 30-04-2025
8.08 EUR excl. VAT
Product description

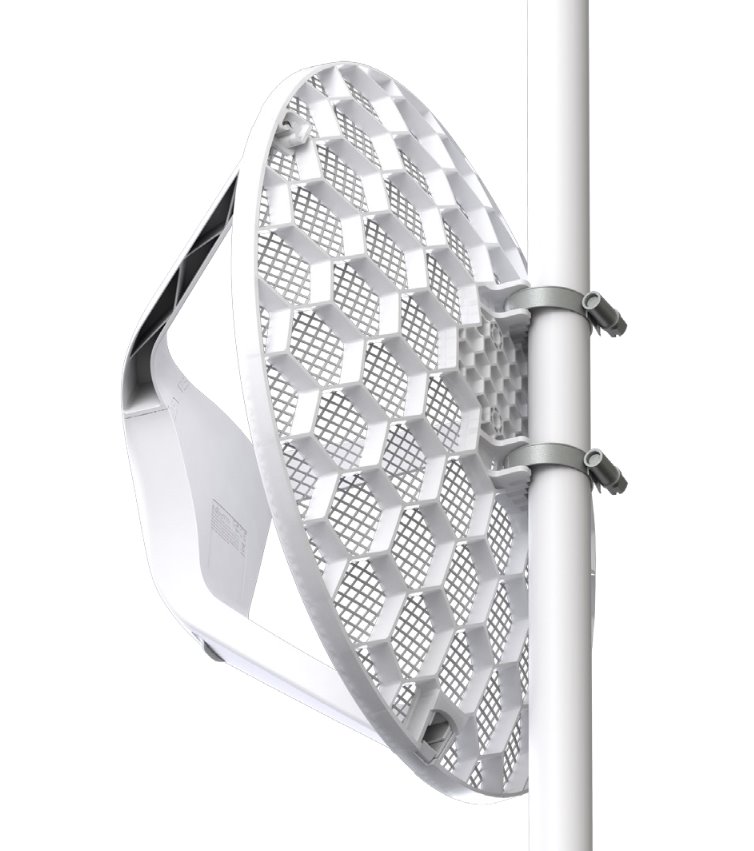

The Light Head Grid (LHG) is a compact and light wireless device with an integrated 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.

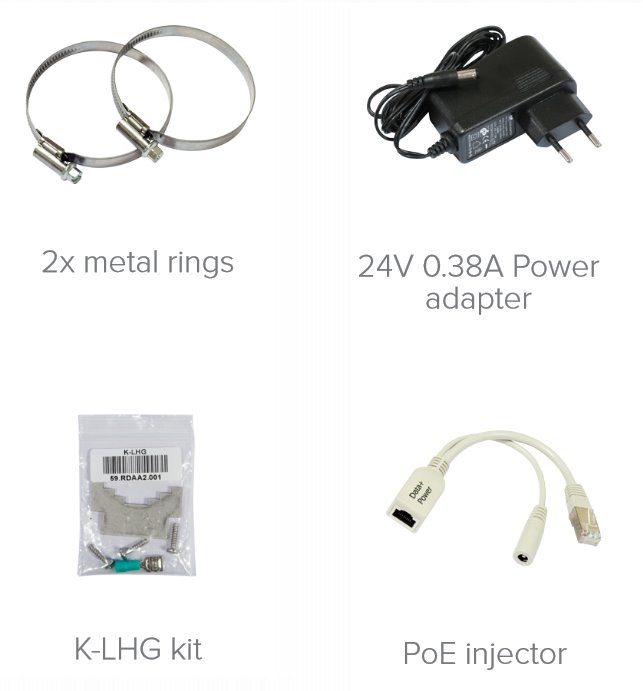

Package contains
- (3) Device
- (3) Power adapter
- (3) PoE injector
- (6) metal rings
- (3) K-LHG kit for antenna tilt
Download
Technical parameters
LAN ports
Power over Ethernet
11 .. 30V DC
Tx power [dBm]
25
F/B ratio [dB]
25
Wireless frequency
5 GHz
WiFi standards
802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]
300
Elevation beam width (-6dB) [°]
7
Azimuth beam width (-6dB) [°]
7
Type of antenna
Built-in
Antenna gain [dBi]
25
Power type
PoE
Operating system
RouterOS - L3
LAN ports
1
LAN speed
(1) 10/100Mbps
Max. power consumption [W]
6
Operating temperature [°C]
-40 up to 70
Width [mm]
391
Height [mm]
391
Depth [mm]
222
CPU
AR9344
Default IP address
192.168.88.1
RAM [MB]
64
Default login and password
admin / -
