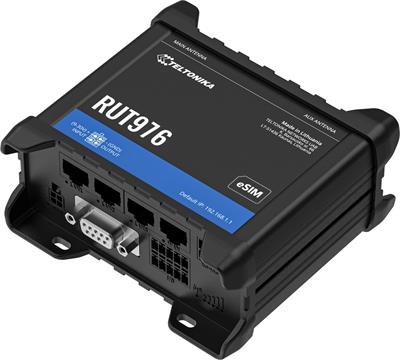

Teltonika RUT976, Industrial 5G RedCap Wi-Fi 4 router, eSIM
Your price incl. VAT (20.0%)
379.39 EUR
Ordered for stock
No confirmed delivery date
You have a choice of 2 variants
Product description
The Teltonika RUT976 is an industrial 5G RedCap (Reduced Capability) Wi-Fi 4 router with WAN and SIM failover, (4) 10/100Mbps ports (3x LAN, 1x WAN), 2.4GHz Wi-Fi 4 delivering throughput of up to 300Mbps, (1) RS232 and (1) RS485 serial interfaces, (1) 10-pin I/O terminal block, (3) SMA female connectors for (2) external 5G antennas and (1) GNSS antenna, (2) RP-SMA female connectors for external Wi-Fi antennas, (2) mini SIM slots and eSIM support.
The router is equipped with a modem supporting 5G RedCap and 4G, with data rates of up to 223Mbps downlink and 123Mbps uplink. Power can be supplied via the 4-pin DC connector (9-30 V) or passive PoE (9-30 V) on the LAN1 port.
Package contents
- Device
- (2) Mobile antennas
- (2) Wi-Fi antennas
- GNSS antenna
- SIM adapter kit
- Patch cable, 1.5m
- Power adapter 9V/1A
- Terminal blocks
Download
Technical parameters
LAN ports
Power over Ethernet
9 .. 30V DC
Design
Industry
Max. WAN speed
100M
Operating mode
AP Router, Cellular router
Wireless frequency
2.4 GHz, LTE, GNSS, 5G (GSM)
WiFi standards
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]
300
Tx power 2.4GHz [dBm]
20
Security
WPA, WPA2, WPA3, OWE
2.4GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
5
RF connectors
(3) SMA female, (2) RP-SMA female
Integrated 4G/LTE radio part
Yes
Power type
PoE, 4-pin automotive
4G/LTE bands support
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (4) 1700 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (12) 700 MHz, (42) 3500 MHz, (43) 3700 MHz, (17) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (39) 1900 MHz, (28) 700 MHz, (66) 1700 MHz, (71) 600 MHz, (13) 700 MHz, (18) 850 MHz, (19) 850 MHz, (34) 2000 MHz, (14) 700 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n79) 4700 MHz, (n66) 1700 MHz, (n71) 600 MHz, (n26) 850 MHz, (n2) 1900 MHz, (n12) 700 MHz, (n13) 700 MHz, (n14) 700 MHz, (n18) 850 MHz, (n25) 1900 MHz, (n30) 2300 MHz, (n48) 3500 MHz, (n70) 2000 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN speed
(4) 10/100Mbps
LAN ports 100M
4
PoE type
PoE-In (only)
Max. power consumption [W]
7
Serial port
RS-232, RS-485
USB ports 2.0
1
Power via connector/terminal
9 .. 30V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
295
Width [mm]
110
Height [mm]
50
Depth [mm]
100
CPU frequency [MHz]
580
SIM slot
Yes
SIM slots quantity
2
USB
Yes
IPv6 support
Yes
Default IP address
192.168.1.1
Internal storage [MB]
32
RAM [MB]
128
Default login and password
admin / (preset password, see label/engraving)
GPS modul
Yes
