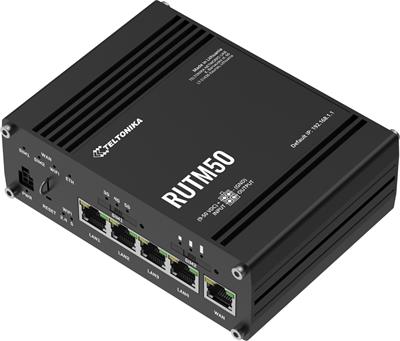

Teltonika RUTM50, Industrial 5G Wi-Fi 5 router
Your price incl. VAT (20.0%)
568.37 EUR
Ordered for stock
No confirmed delivery date
Product description
The Teltonika RUTM50 is an industrial 5G Wi-Fi 5 router with WAN and SIM failover, (5) 1Gbps ports (4x LAN, 1x WAN), dual-band Wi-Fi 5 operating simultaneously in the 2.4GHz and 5GHz bands, delivering throughput of up to 1.17Gbps, (5) SMA female connectors for (4) external 5G antennas and (1) GNSS antenna, (2) RP-SMA female connectors for external Wi-Fi antennas and (2) mini SIM slots.
The router is equipped with a modem supporting 5G, 4G and 3G, with data rates of up to 3400Mbps downlink and 900Mbps uplink. Power can be supplied via the 4-pin DC connector (9-50 V) or passive PoE (9-50 V) on the LAN1 port.
Package contents
- Device
- (4) Mobile antennas
- (2) Dual-band Wi-Fi antennas
- GNSS antenna
- SIM adapter kit
- Patch cable, 1.5m
- Power adapter 12V/1.5A
Download
Technical parameters
LAN ports
Power over Ethernet
9 .. 50V DC
Design
Industry
Max. WAN speed
1G
Operating mode
AP Router, Cellular router
Wireless frequency
2.4 + 5 GHz (dual band), LTE, GNSS, 3G (GSM), 5G (GSM)
WiFi standards
802.11n, 802.11ac, 802.11b/g, 802.11ac - wave2
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
866
Transmission speed - 2.4GHz [Mb/s]
300
Tx power 2.4GHz [dBm]
20
Tx power 5GHz [dBm]
23
Security
WPA, WPA2, WPA3, OWE
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
7
RF connectors
(2) RP-SMA female, (5) SMA female
Integrated 4G/LTE radio part
Yes
Power type
PoE, 4-pin automotive
4G/LTE bands support
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (28) 700 MHz, (71) 600 MHz, (32) 1500 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n71) 600 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN speed
(5) 10/100/1000Mbps
LAN ports 1G
5
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
11,5
USB ports 2.0
1
Power via connector/terminal
9 .. 50V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
520
Width [mm]
132
Height [mm]
44
Depth [mm]
95
CPU
MIPS1004Kc
CPU frequency [MHz]
880
SIM slot
Yes
SIM slots quantity
2
USB
Yes
IPv6 support
Yes
Default IP address
192.168.1.1
Internal storage [MB]
256
RAM [MB]
256
Default login and password
admin / (preset password, see label/engraving)
GPS modul
Yes
