Grandstream GWN7302, 5GHz PtP+PtMP bridge
New
Your price incl. VAT (20.0%)
96.78 EUR
✅ Availability in an external Partner
Planned Delivery Date by Courier to you 24-06-2026
8.77 EUR excl. VAT
Product description

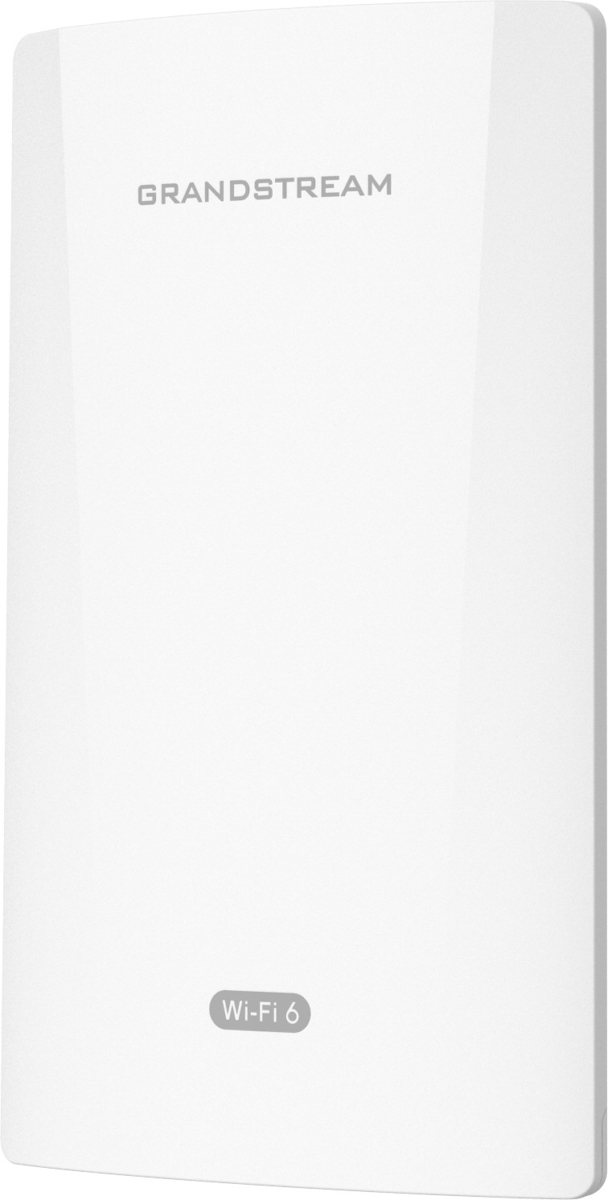

The Grandstream GWN7302 is an outdoor 5GHz Wi-Fi 6 PtP/PtMP wireless bridge with throughput of up to 2.4Gbps over distances of up to 5km, (2) 1G ports (1x PoE-In, 1x PoE-Out), 2x2:2 MIMO with TDMA technology and integrated high-gain 13.5dBi antennas with 30° beamwidth. In PtMP it can support up to 4 clients. It supports management via a local web interface, GDMS cloud management and GWN Manager.
Key features
- 5GHz bridge for PtP/PtMP links over distances of up to 5km with throughput up to 2.4Gbps
- PoE-Out budget up to 25W when powered via 24V/2A, up to 13W when powered via PoE+
- Supports up to 4 client units in PtMP mode
- IP66 rated enclosure resistant to harsh weather conditions
- Powered via 802.3af/at PoE or 24V DC terminal block
Package contents
- Device

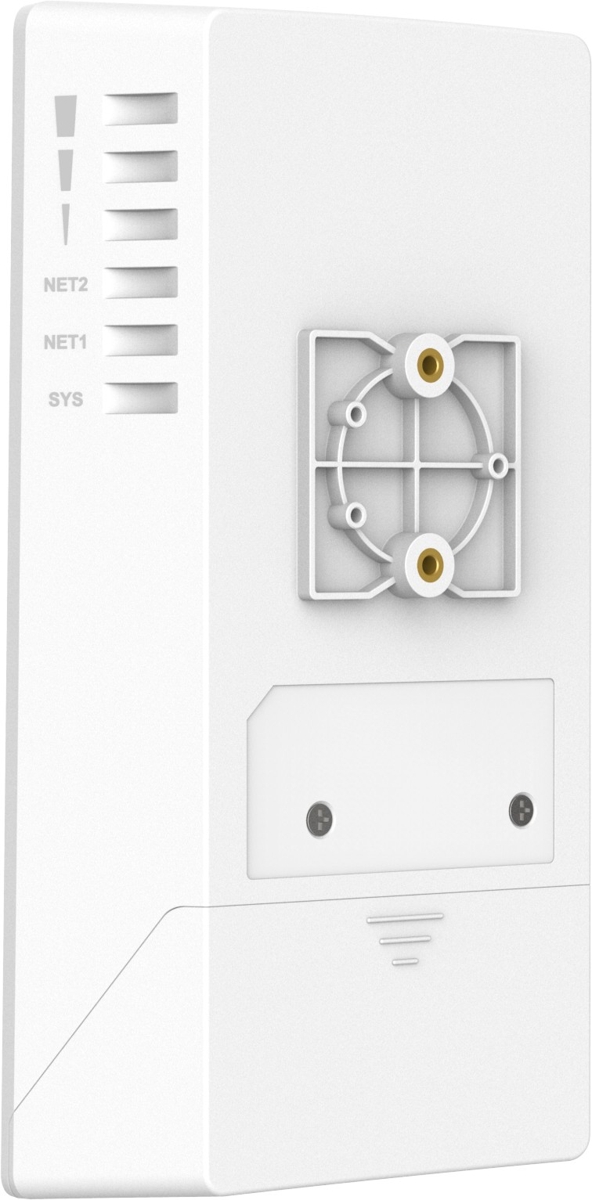

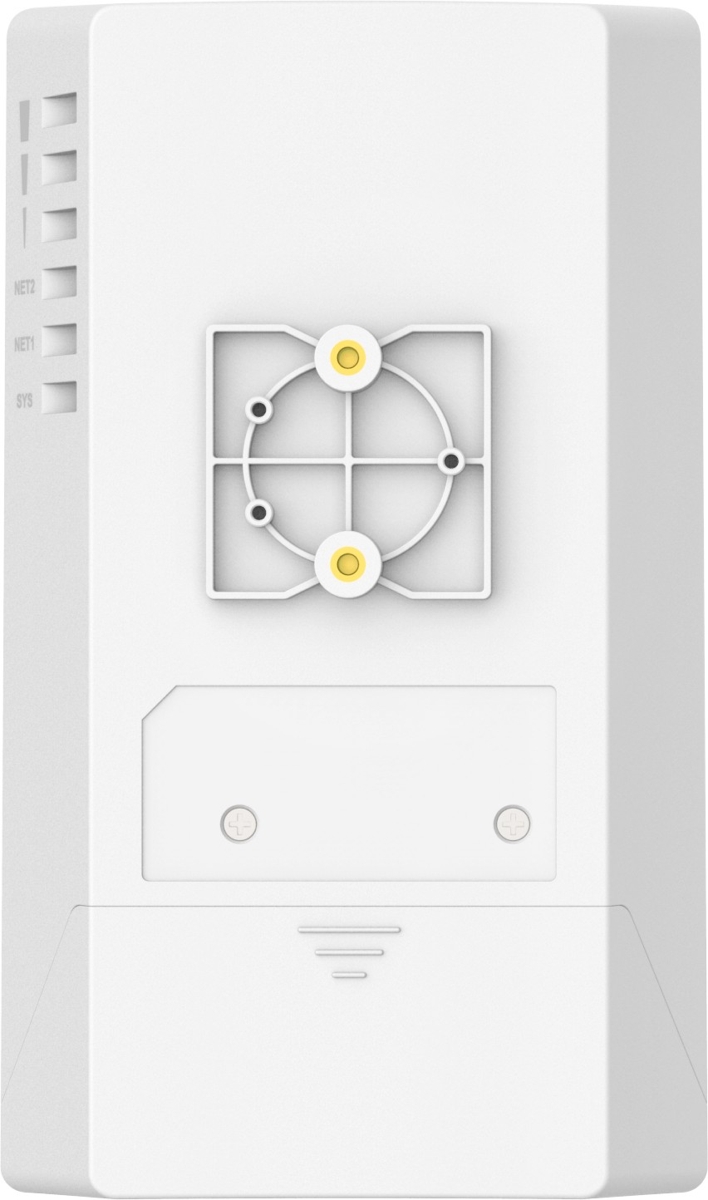

- Wall/pole mount
- Mounting accessories
Download
Technical parameters
LAN ports
Power over Ethernet
802.3af, 802.3at
Sensitivity [dBm]
-92
Protection class
IP66
Operating mode
Bridge
Wireless frequency
5 GHz
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11ax
Transmission speed - 5GHz [Mb/s]
2402
Tx power 5GHz [dBm]
26
Azimuth beam width (-6dB) [°]
30
Elevation beam width (-6dB) [°]
30
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
13,5
LAN ports
2
LAN speed
(2) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-Out + PoE-In
RJ45 ports 1G
2
Max. power consumption [W]
13
Power via connector/terminal
24V DC
Buttons
Reset, Pair
Operating temperature [°C]
-30 up to 60
Weight [g]
410
Depth [mm]
38
Height [mm]
180
Width [mm]
102
IPv6 support
Transparent (bridge mode)
