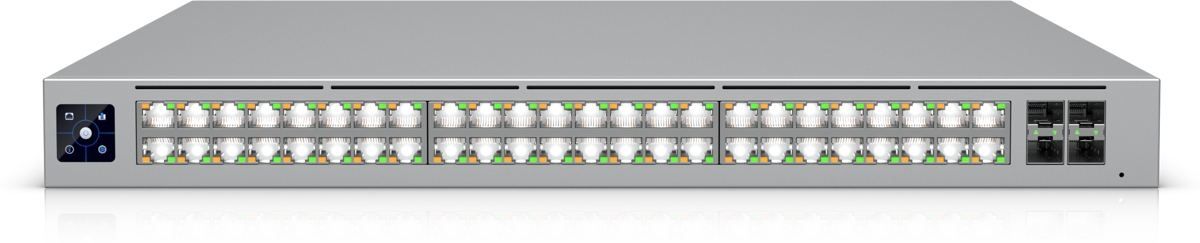

Ubiquiti Enterprise Campus 48S PoE switch
Your price incl. VAT (20.0%)
4,741.00 EUR
Ordered for stock
No confirmed delivery date
You have a choice of 2 variants
151.18 EUR excl. VAT
58.15 EUR excl. VAT
Ubiquiti UACC-OM-QSFP28-LR4 - Optical module, Single-Mode, 100 Gbps, LC UPC DuplexUACC-OM-QSFP28-LR4
252.69 EUR excl. VAT
Product description
The Ubiquiti Enterprise Campus 48S PoE is a high-end UniFi PoE L3 stackable switch offering (16) 10G PoE+++ ports, (32) 2.5G PoE+++ ports, a PoE budget of 2150W, (4) SFP28 slots, (2) QSFP28 stacking slots and redundant hot-swap power supplies and fans.
Key features

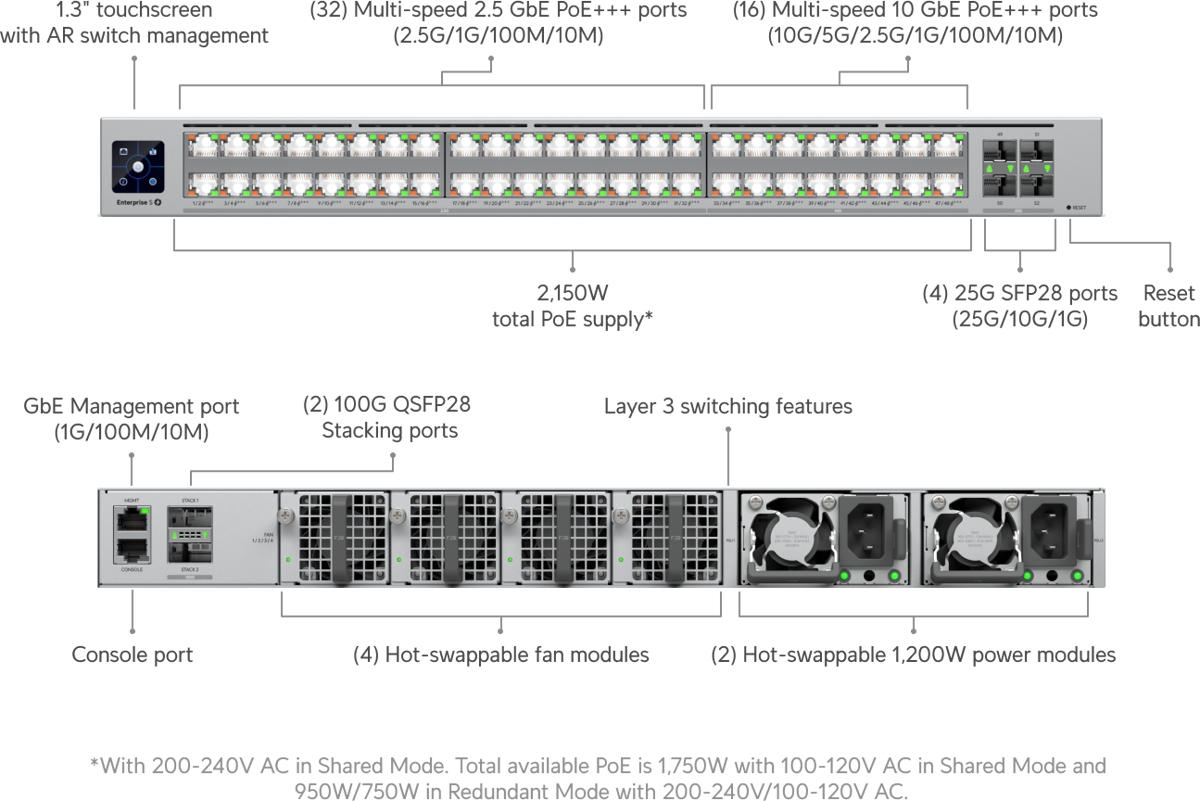

- (16) 10Gbps PoE+++ ports, (32) 2.5Gbps PoE+++ ports, (4) SFP28 slots, (2) QSFP28 stacking slots, (1) 1Gbps management port and (1) RJ45 console port
- 802.3af/at/bt PoE+++ with up to 90W/port and a total PoE budget of up to 2150W (950W with power supply redundancy)

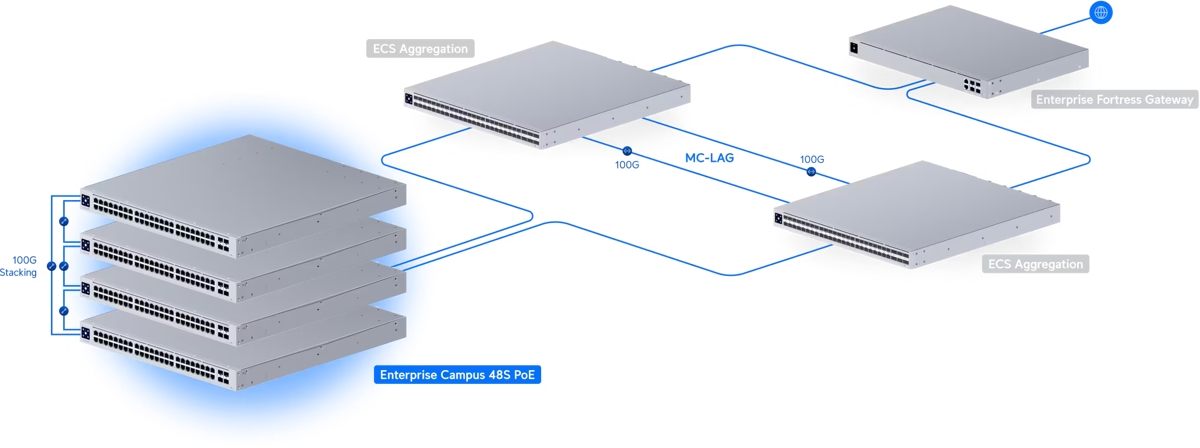

- QSFP28 stacking - connecting multiple switches into a single unit

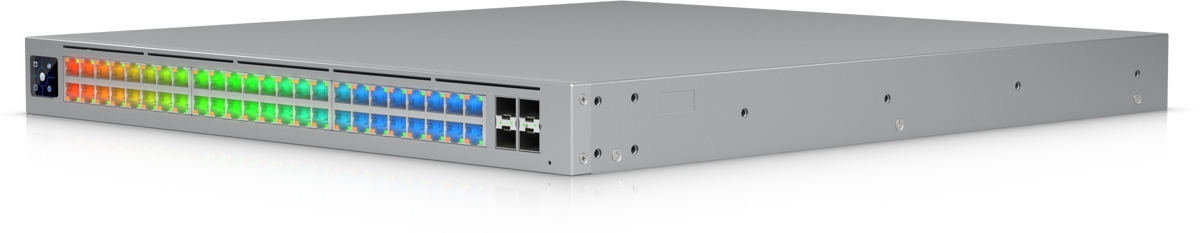

- Etherlighting - visual indication of port status and additional information
Download
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
680
MAC address table
32000
Packet forwarding rate [Mpps]
506
Management
UniFi Network
Features
DHCP snooping, QoS, Physical stacking, VLAN, L3
Power type
Mains power (230V)
Fans
Yes
LAN speed
(32) 100M/1G/2.5G + (16) 100M/1G/2.5G/5G/10G
LAN ports 1G
1
LAN ports 2.5G
32
LAN ports 10G
16
Management LAN
Yes
PoE type
PoE-Out (only)
RJ45 ports 1G
1
RJ45 ports 2.5G
32
RJ45 ports 10G
16
SFP28 cages
4
QSFP28 cages
2
Optical interfaces
(4) 1G/10G/25G + (2) 100G
PoE-Out standards
802.3af, 802.3at, 802.3bt

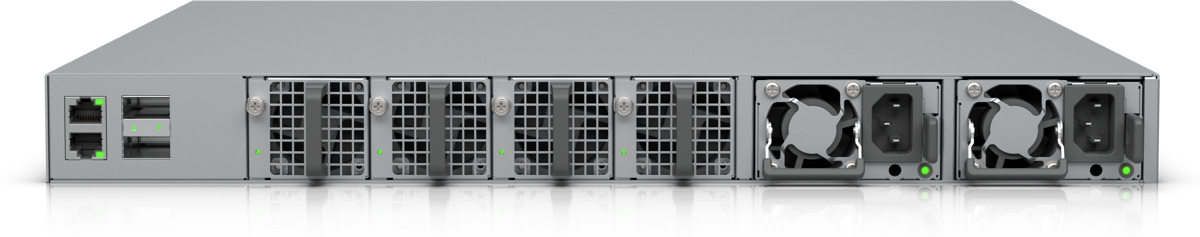

Redundant power supply
Yes
PoE Out ports
48
PoE budget [W]
2150
Max. power consumption [W]
2400
Serial port
RJ45
Chassis design
Metal
Buttons
Reset
Operating temperature [°C]
-5 up to 40

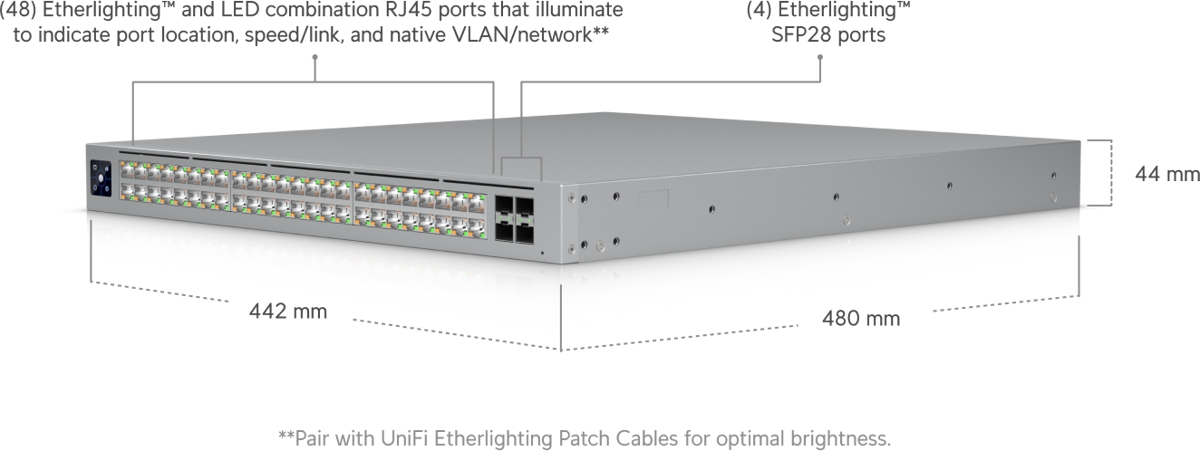

Width [mm]
442
Height [mm]
44
Depth [mm]
480
Other features
Touchscreen
