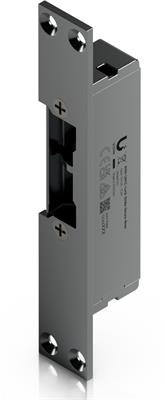

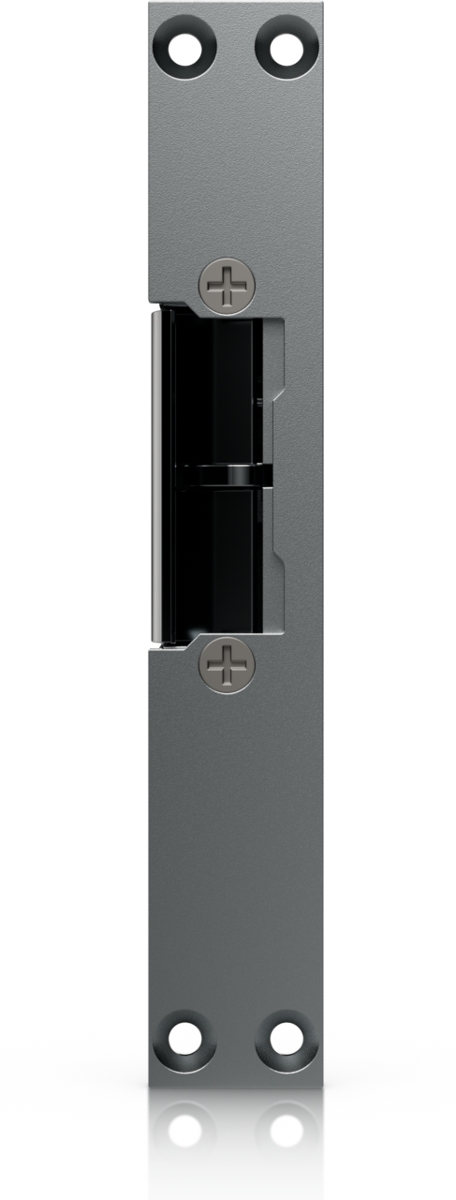

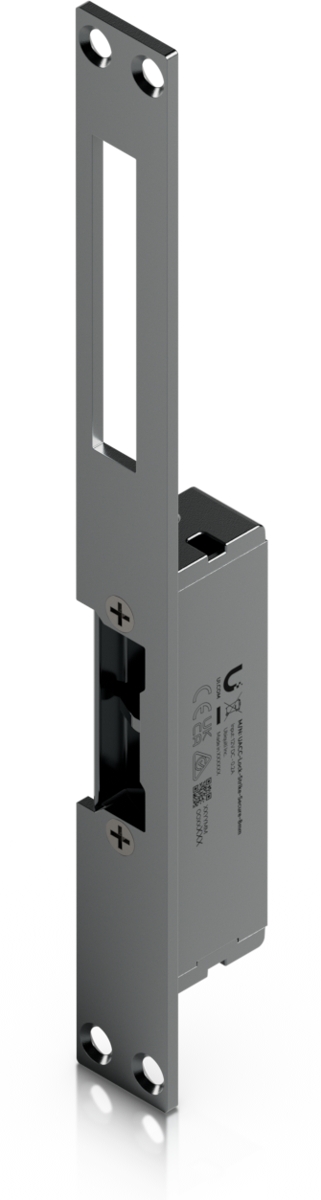

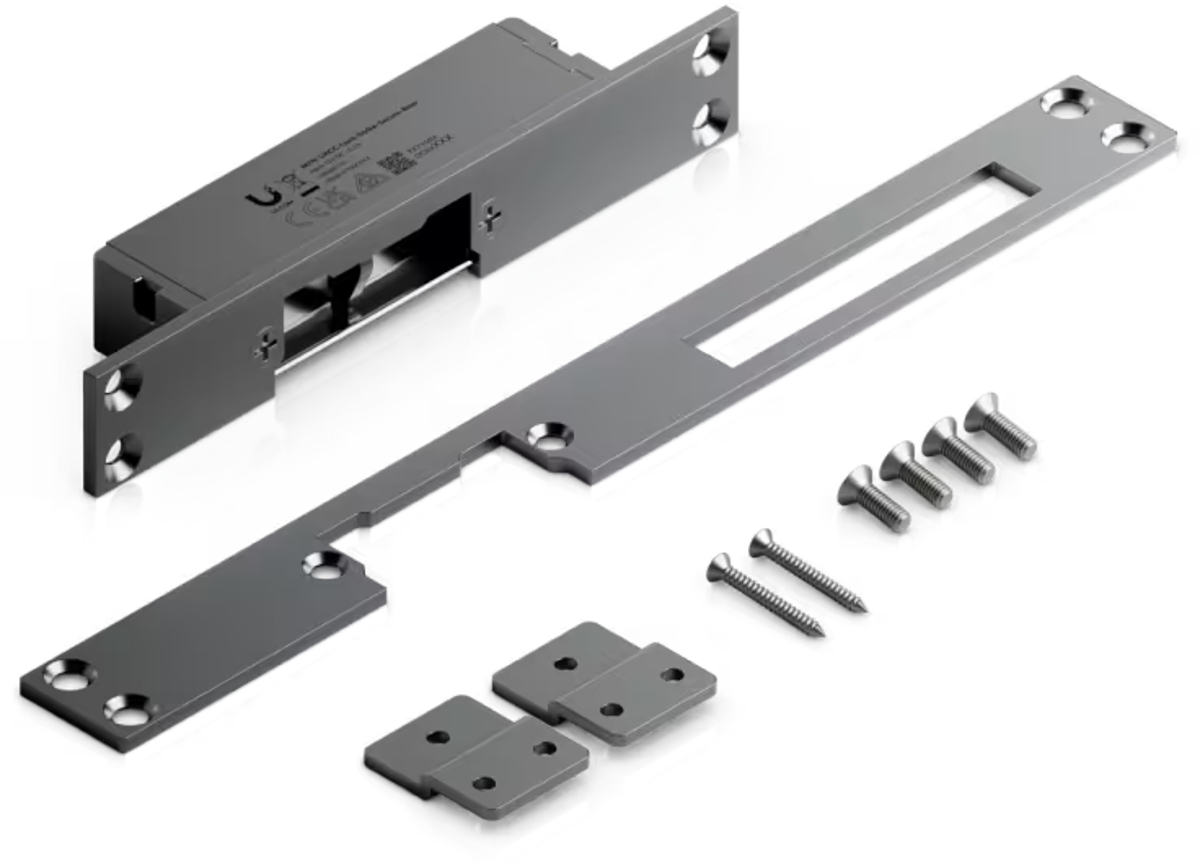

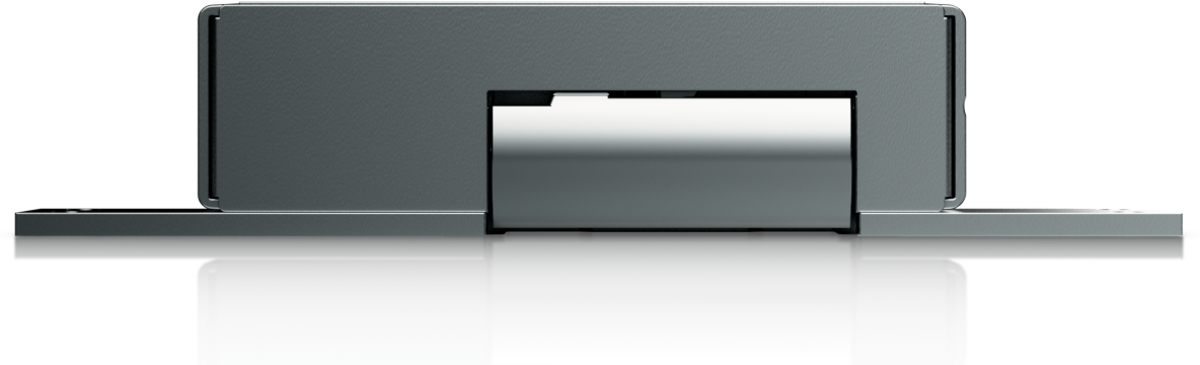

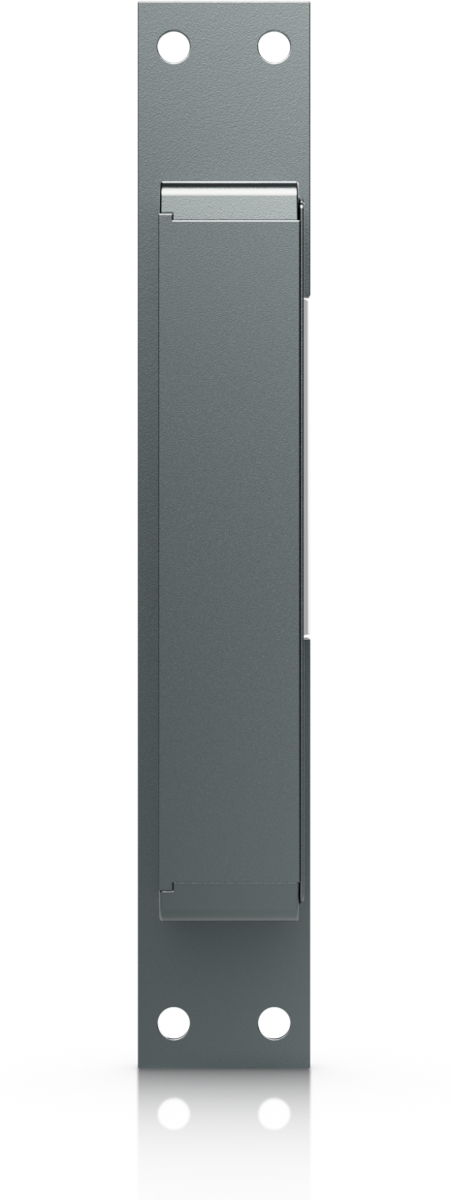

Ubiquiti UACC-Lock-Strike-Secure-8mm, Electric fail-secure strike lock
Your price incl. VAT (20.0%)
94.42 EUR
Ordered for stock
No confirmed delivery date
Manufacturer
Product number
UACC-Lock-Strike-Secure-8mm
Product Code
RL030.618
Warranty
24 months
You have a choice of 2 variants
Ubiquiti UACC-Cable-DoorLockRelay-1P - UniFi Access connecting cable, 1 pairUACC-Cable-DoorLockRelay-1P
110.75 EUR excl. VAT
Ubiquiti UACC-Cable-DoorLockRelay-2P - UniFi Access connecting cable, 2 pairUACC-Cable-DoorLockRelay-2P
144.32 EUR excl. VAT
Product description

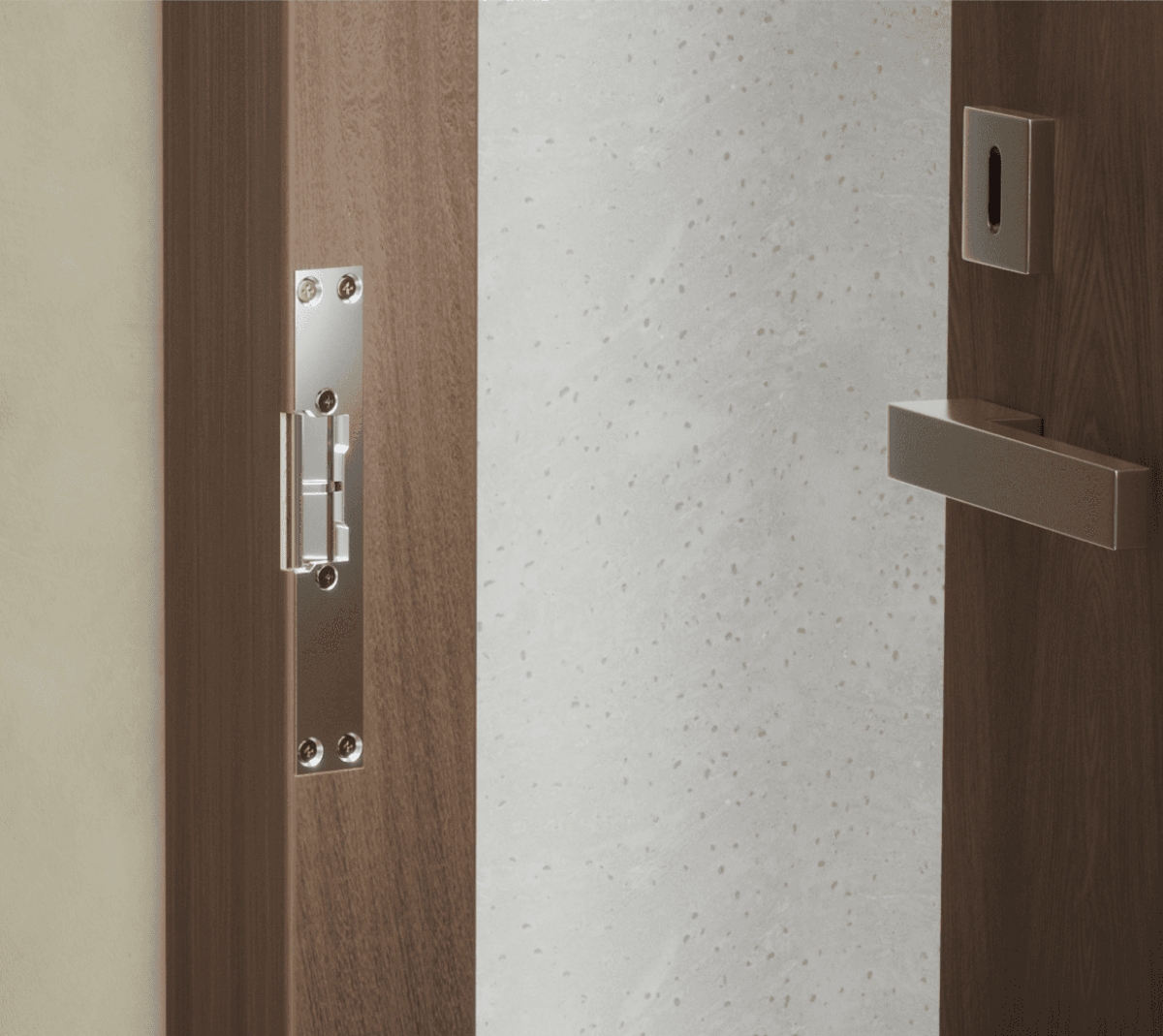

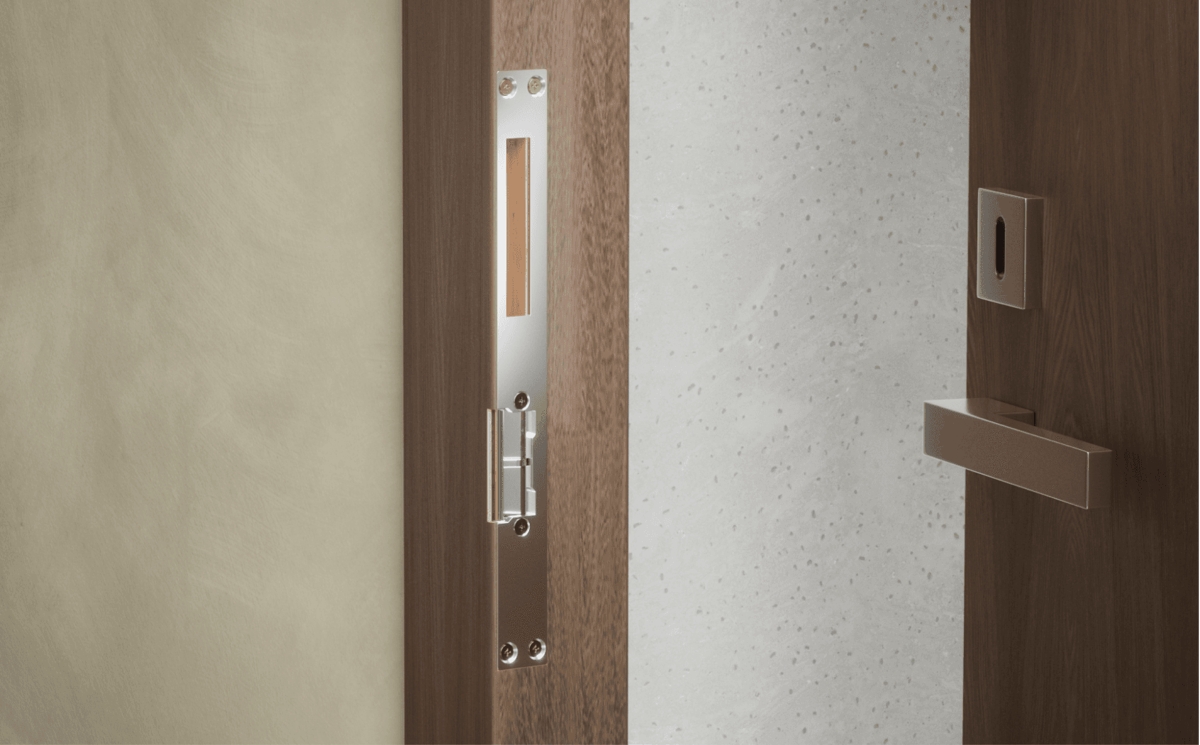

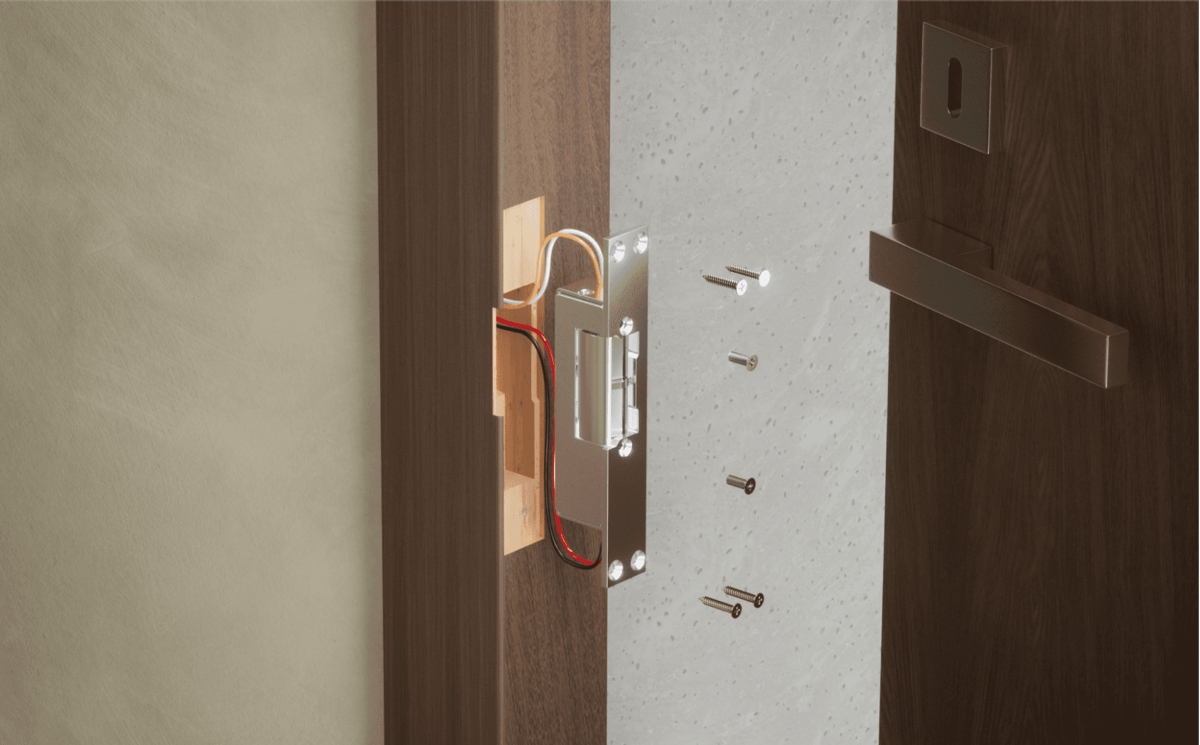

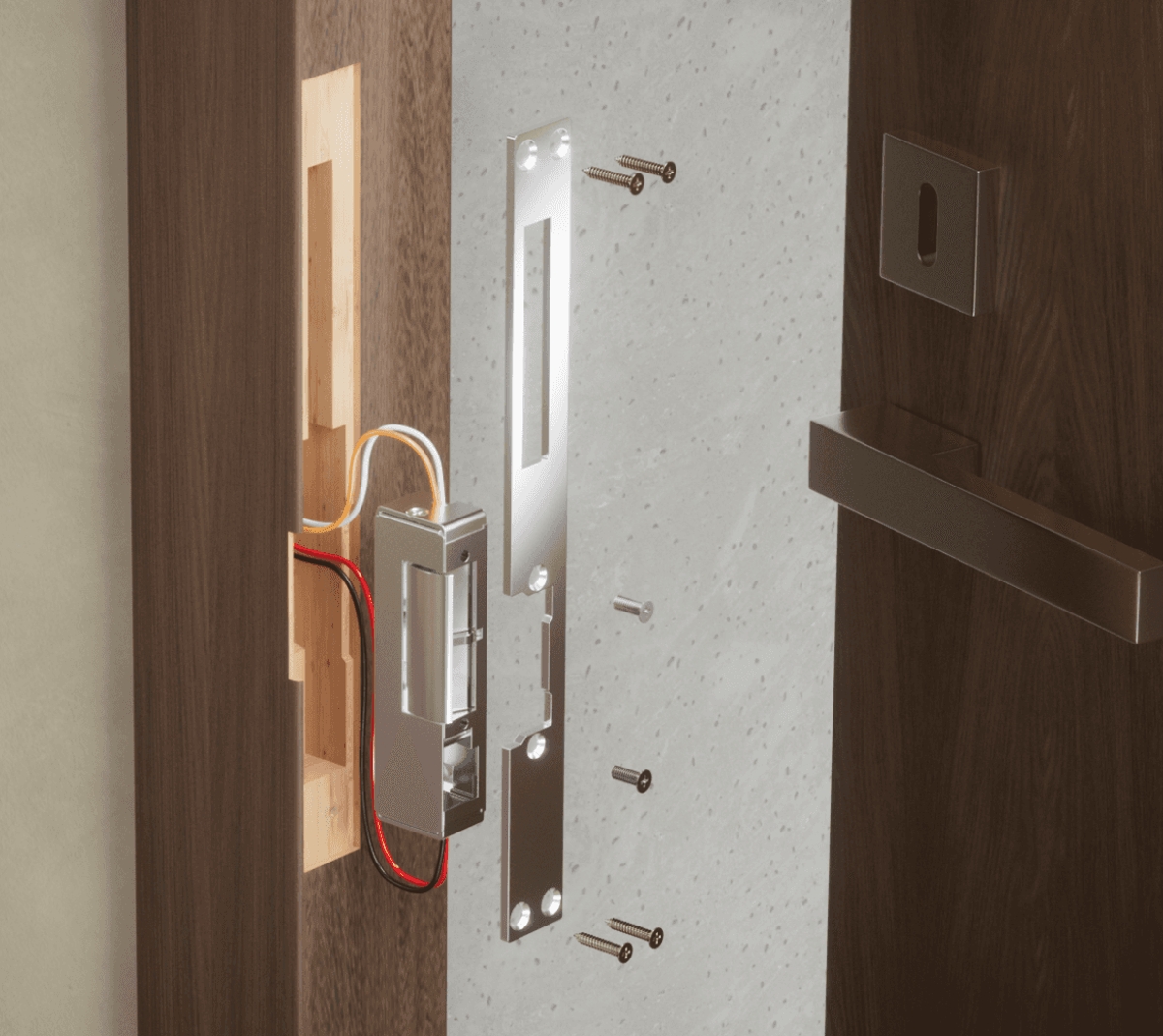

The UACC-Lock-Strike-Secure-8mm is an electric strike lock that connects to a UniFi Access Hub. The lock is fail-secure, remaining locked in the event of failure. It can be installed in wooden, steel, and aluminum frames. The device features a built-in DPS (door position sensor), allowing monitoring of the door open/closed status, and has a holding force of up to 227 kg. Power is supplied via a two-wire terminal block 12V/200mA.

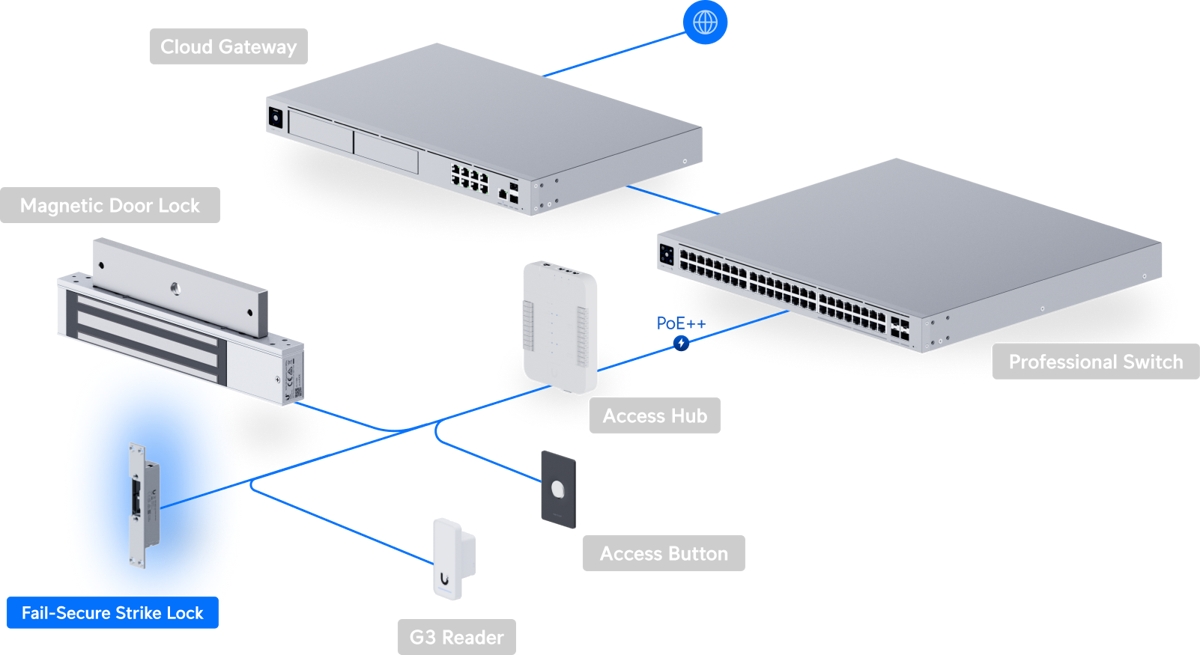

Compatibility
- UA-Hub-Door
- UA-Hub-Door-Mini
- UA-Hub-Gate
- EAH-8
- UA-Ultra
Technical parameters
LAN ports
Recommended load [kg]
227
Material
Zinc alloy, Stainless steel
Power type
DC terminal
Max. power consumption [W]
2,4
Power via connector/terminal
12V DC
Operating temperature [°C]
-10 up to 60
Weight [g]
200

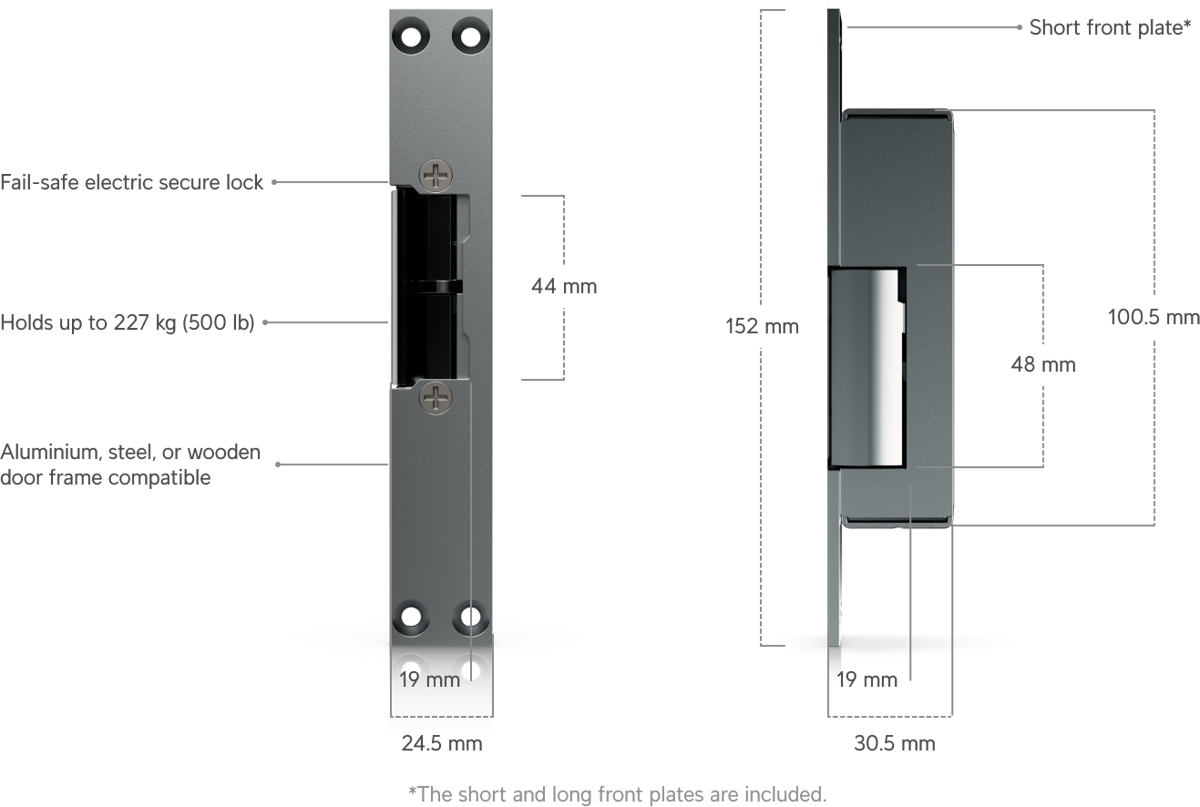

Width [mm]
25
Height [mm]
152
Depth [mm]
31
