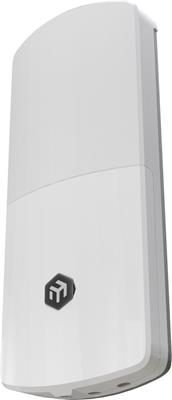

MikroTik FTC21-ups, Media converter with backup battery
Your price incl. VAT (20.0%)
88.60 EUR
Ordered for stock
Planned Delivery Date by Courier to you 15-04-2026
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDMML-S3155-20
4.67 EUR excl. VAT
4.77 EUR excl. VAT
4.67 EUR excl. VAT
Product description
The MikroTik FTC21-ups is an optical-metallic converter equipped with a switch chip, a backup battery for short-term power outages, SwOS Lite management (supporting VLAN, LAG, IGMP, SNMP, ACL, traffic shaping, etc.), in an outdoor enclosure with IP67 protection.

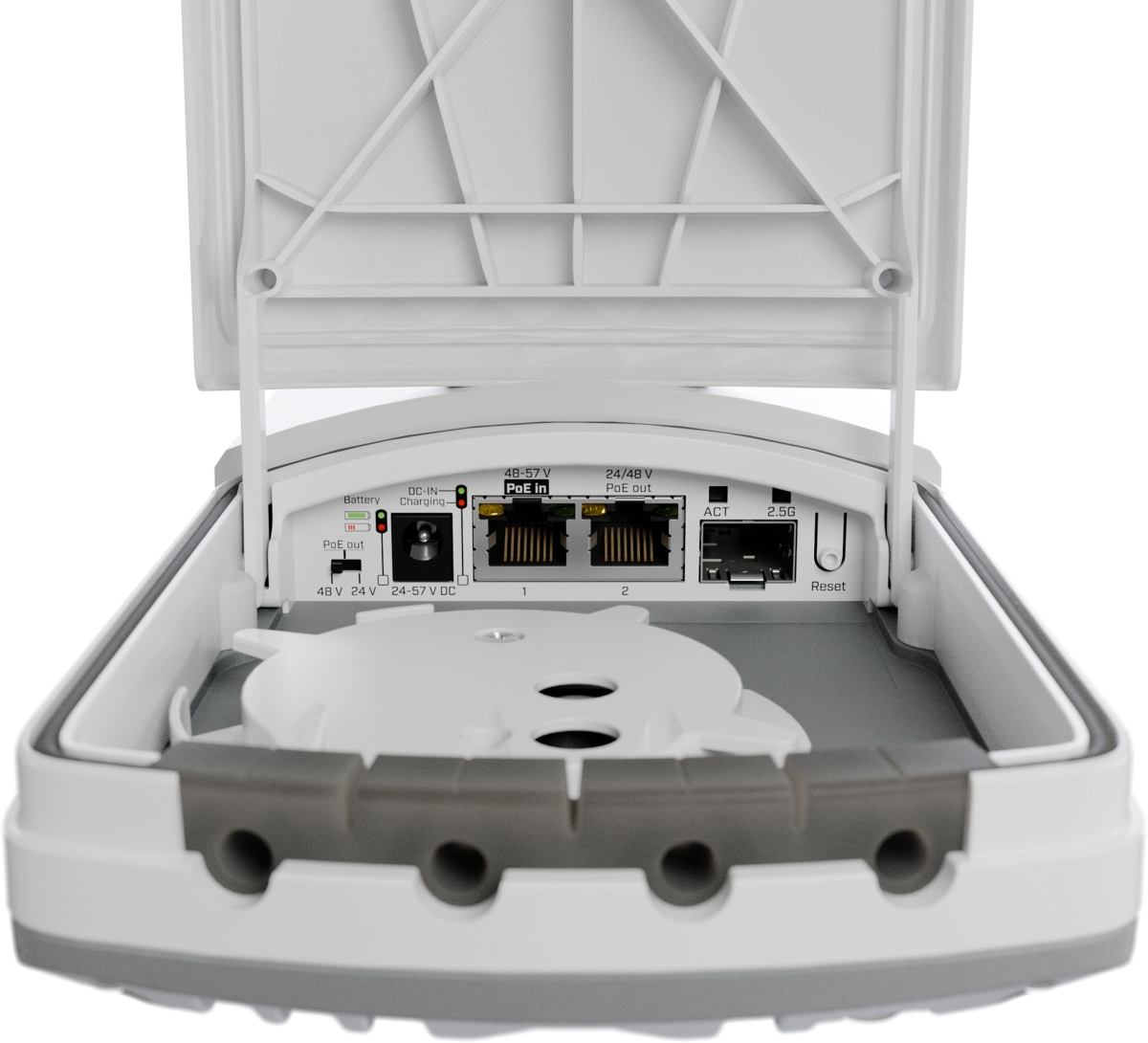

This converter features (2) 1Gbit ports (1x PoE-In, 1x PoE-Out) and (1) 2.5G SFP slot. The passive PoE-Out port can be switched between 24V and 48V. The converter supports multiple power supply methods, including active PoE standards (802.3af/at), passive PoE (48-57V) and DC connector (24-57V).
Package contents
- Device
- Power adapter 48V/0.95A
- Gigabit PoE injector
- Mounting accessories
Technical parameters
LAN ports
Power over Ethernet
802.3af, 802.3at, 48 .. 57V DC
Protection class
IP67
Battery capacity [mAh]
2500
Power type
PoE, DC connector
Operating system
SwOS
LAN speed
(2) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-Out + PoE-In
RJ45 ports 1G
2
SFP cages
1
Optical interfaces
(1) 1G/2.5Gbps
PoE-Out standards
Passive 24V, Passive 48V
PoE Out ports
1
Max. power consumption [W]
28
Power via connector/terminal
24 .. 57V DC
Operating temperature [°C]
-40 up to 70
Width [mm]
113
Height [mm]
268
Depth [mm]
44

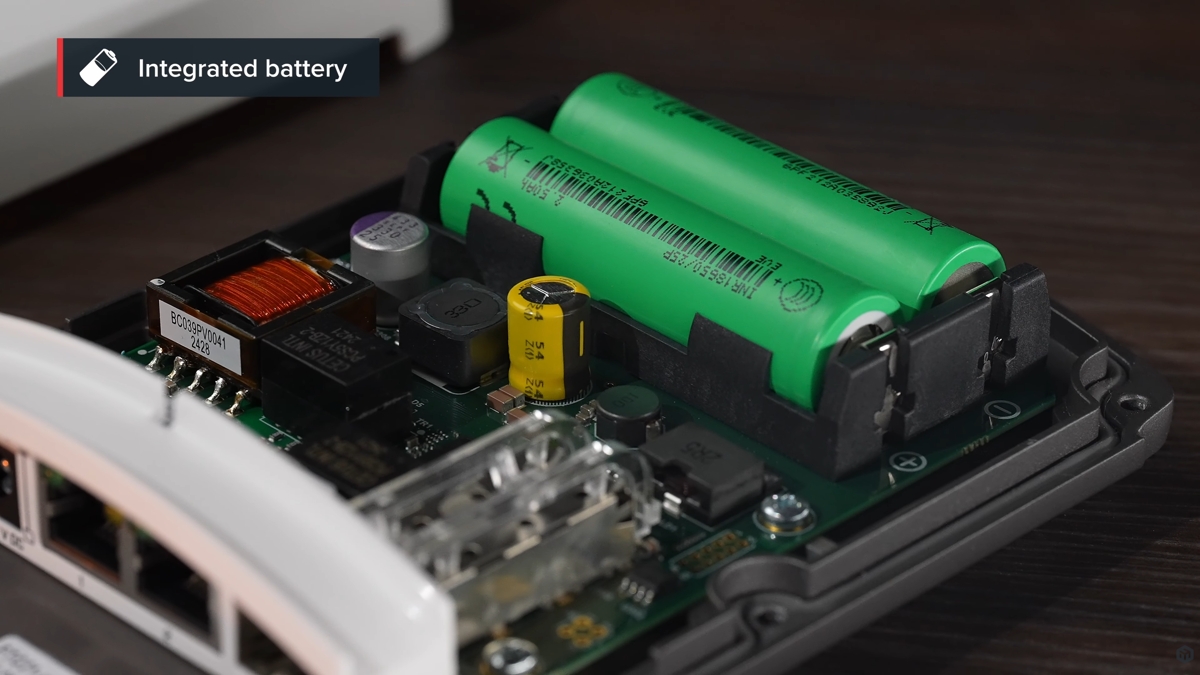

Integrated battery
Yes
