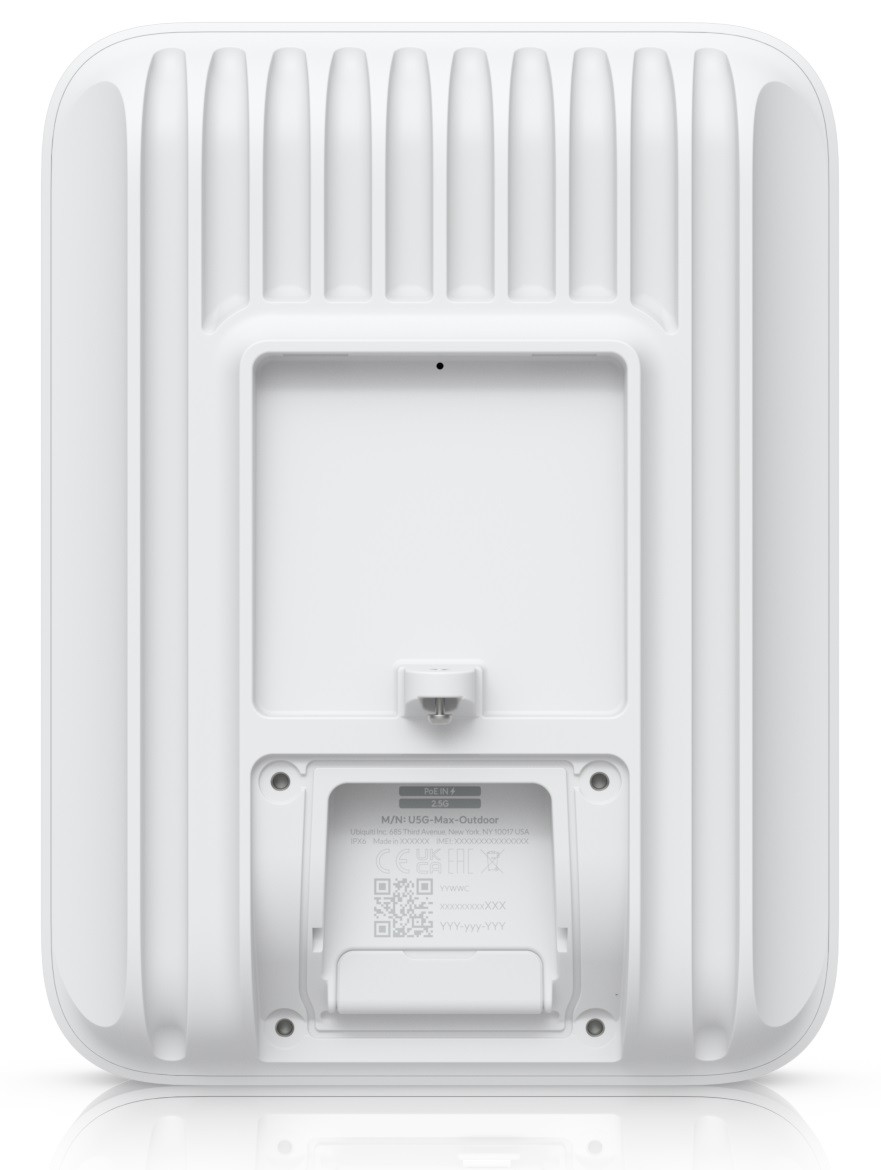

Ubiquiti UniFi 5G Max Outdoor

Ubiquiti UniFi 5G Max Outdoor
Your price incl. VAT (20.0%)
415.14 EUR
Ordered for stock
Delivery No confirmed delivery date
Ubiquiti
Manufacturer
Product number
U5G-Max-Outdoor
Product Code
RL030.432
Warranty
24 months

Product description

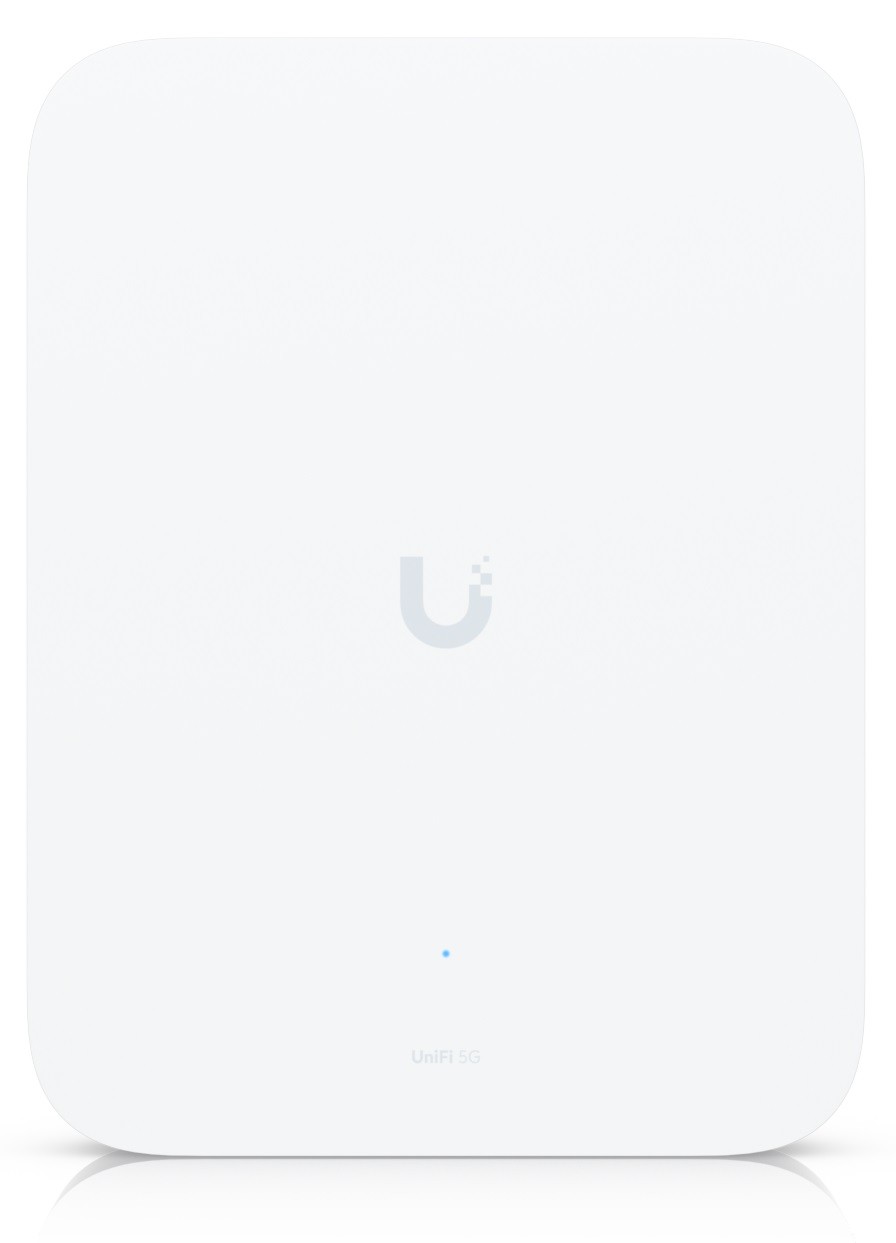

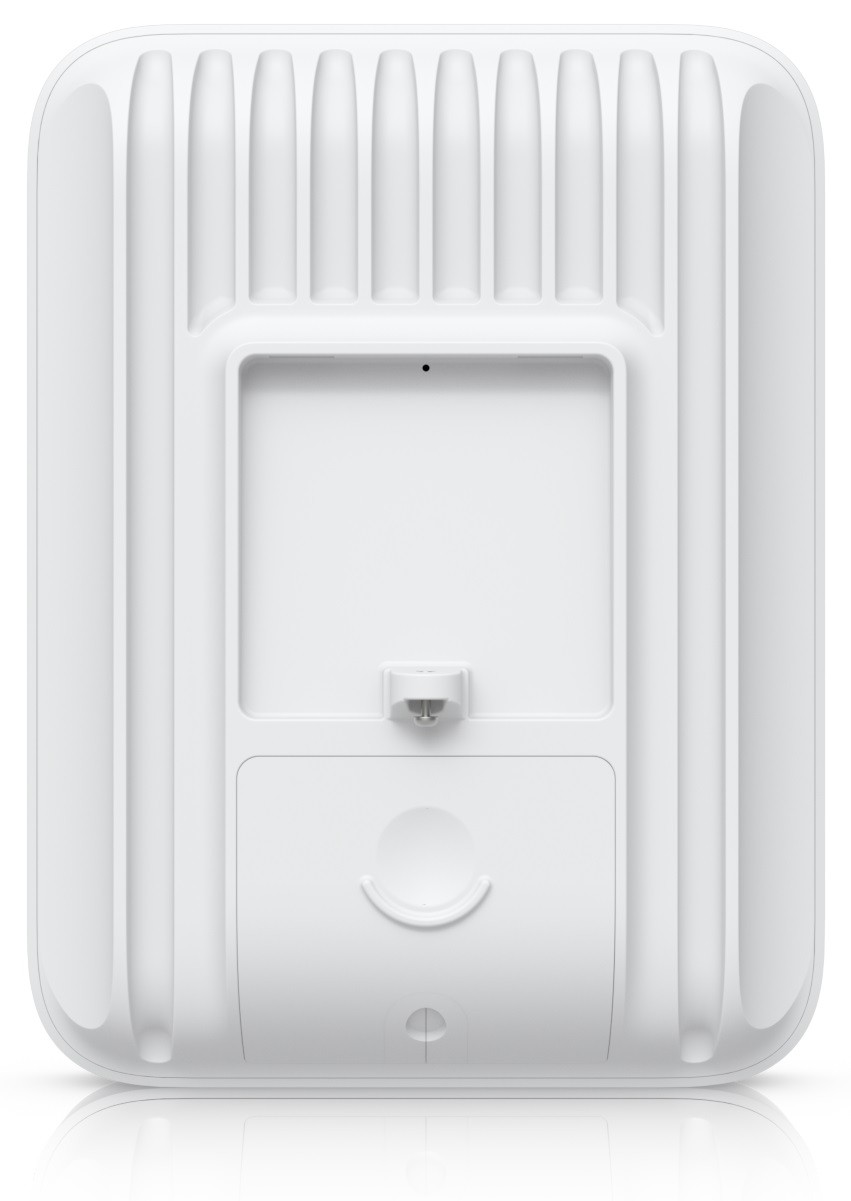

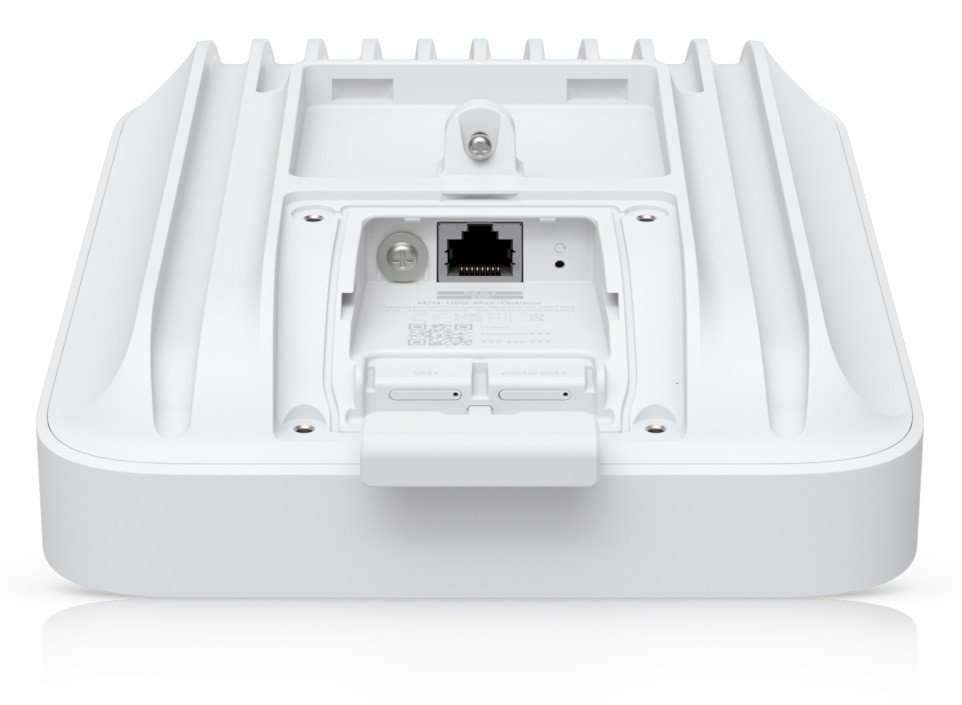

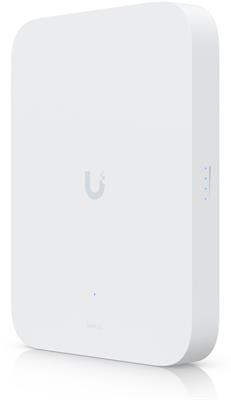

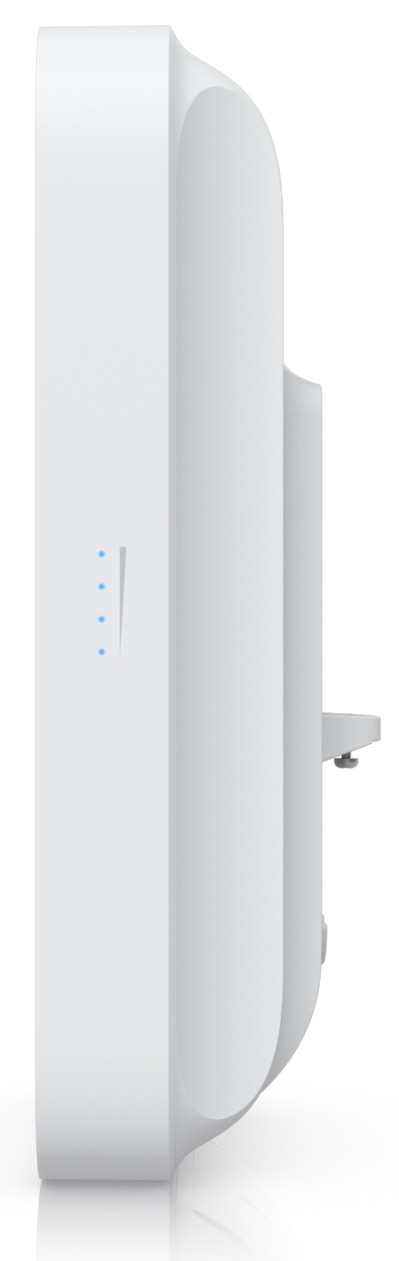

UniFi 5G Max Outdoor is a high-performance 5G solution specifically engineered for outdoor environments. It is designed to enhance any UniFi Cloud Gateway or UniFi Gateway with reliable cellular connectivity. It supports dual SIM, with a secondary physical or eSIM, enabling seamless failover for critical applications. There is (1) 2.5G Ethernet port for LAN connectivity and 802.3at PoE power input (maximum power consumption is 14.5 W).

It has enhanced weatherproofing, featuring a rugged, weather-resistant enclosure rated at IPX6 for protection against harsh conditions. For greater protection against the elements, upgrade to an IP67 rating using the included cable-gland door kit. In addition, the UniFi 5G Max Outdoor features a built-in high-gain directional antenna. It delivers stronger, more consistent performance in outdoor environments by improving signal reception and extending coverage.

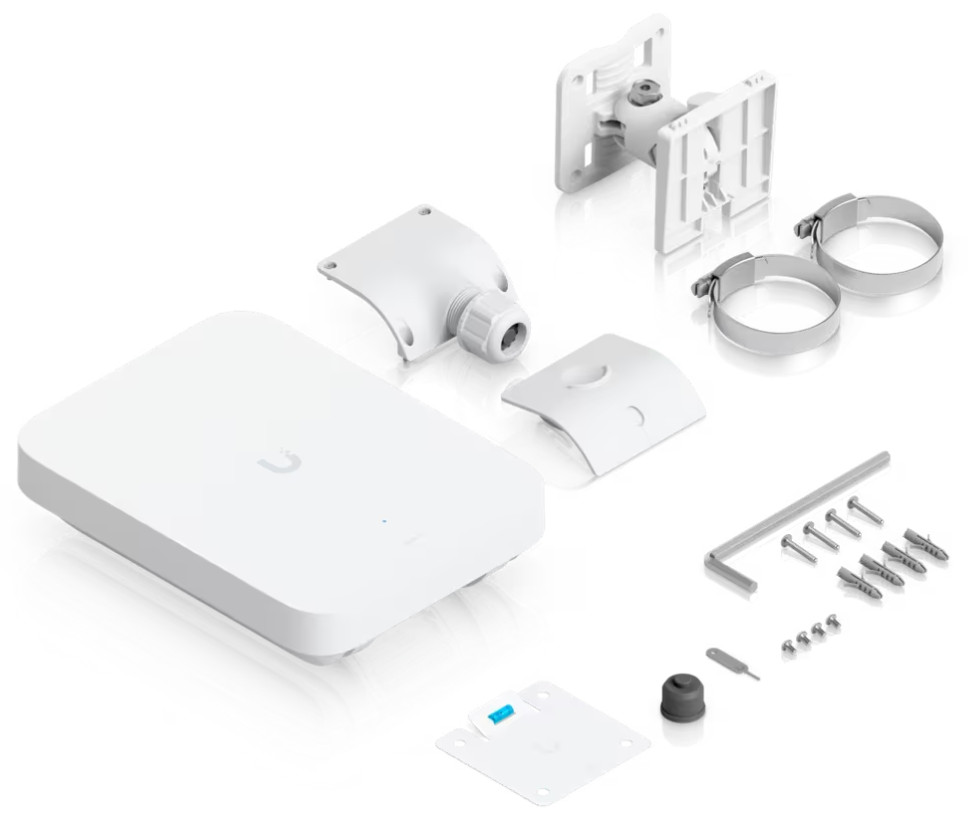

Package contents

  • Outdoor modem with antenna

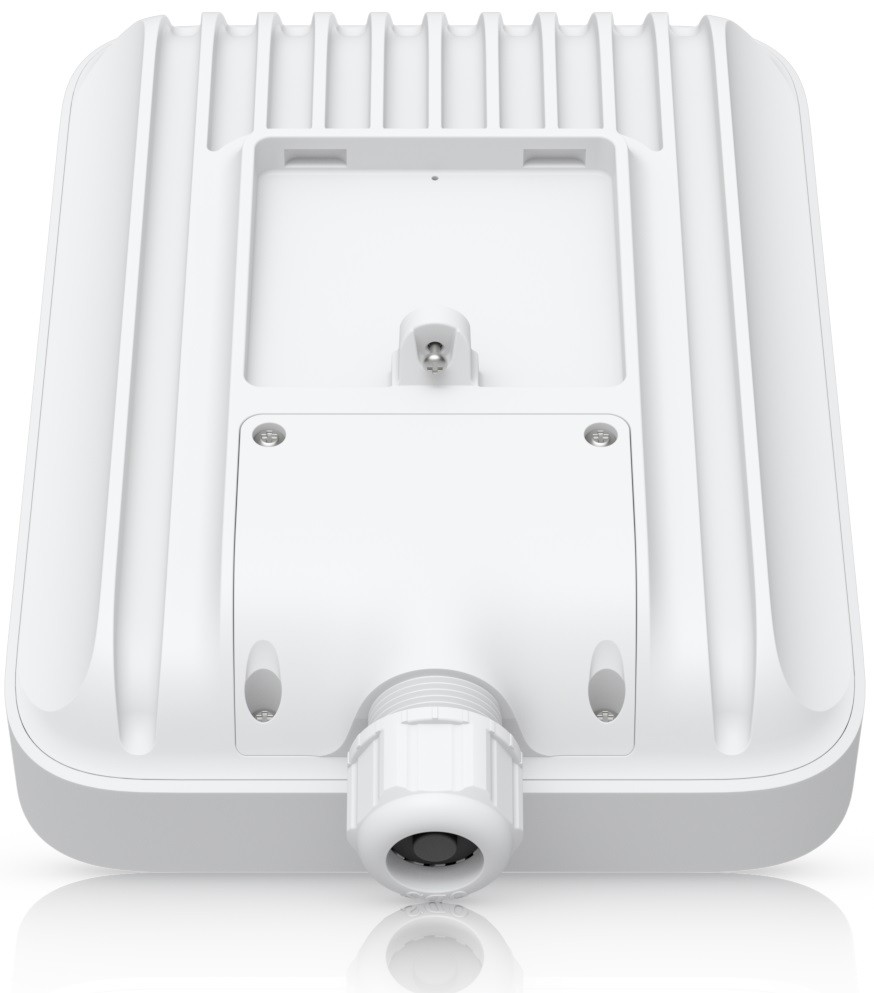

  • Cable-gland door IP67 kit

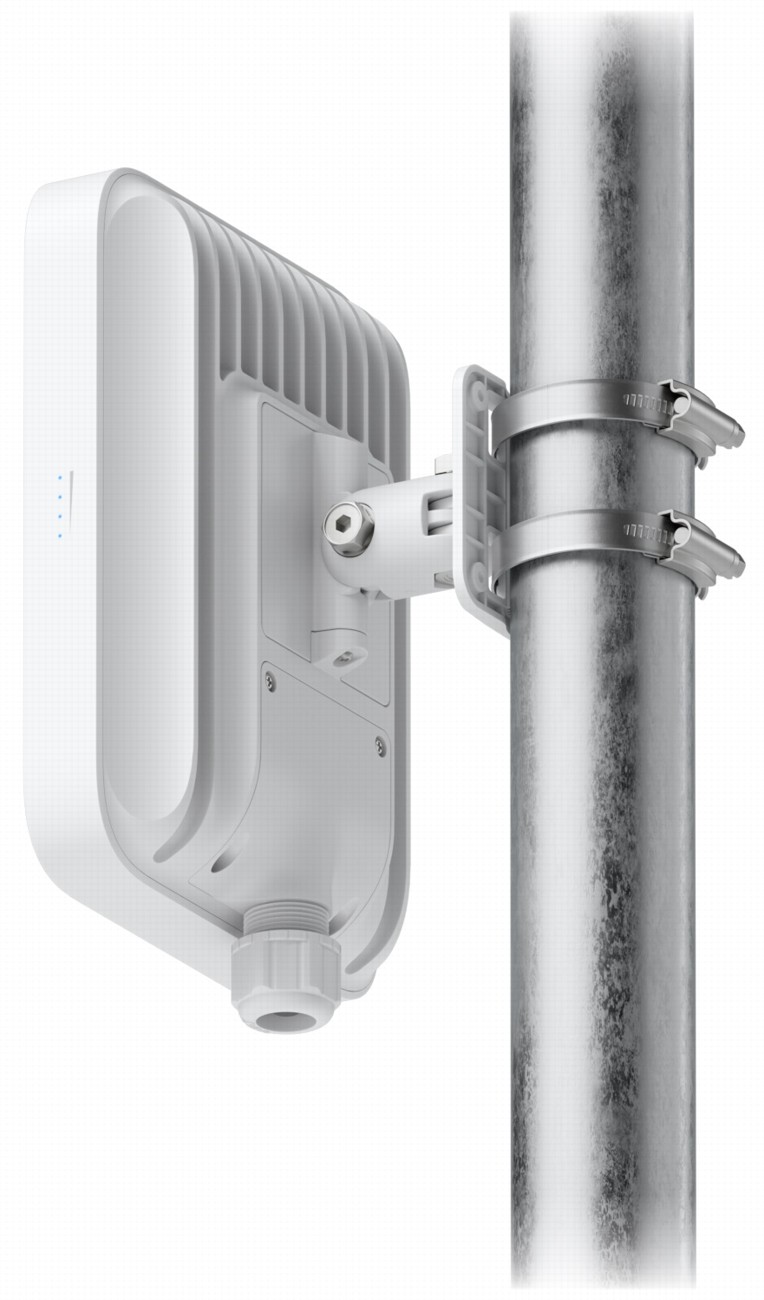

  • (2) Mounting metal strap
  • Antenna bracket
  • Screws and wall plugs kit
  • Tools
  • Drilling template

Download

https://dl.ui.com/qig/u5g-max-outdoor/#index
Download QSG
https://techspecs.ui.com/unifi/integrations/u5g-max-outdoor#datasheet
Download Datasheet

Technical parameters

LAN ports
Power over Ethernet
802.3at
Design
Outdoor
Operating mode
Cellular Modem
Type of antenna
Built-in
Integrated 4G/LTE radio part
Yes
Power type
PoE
4G/LTE bands support
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (4) 1700 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (12) 700 MHz, (42) 3500 MHz, (43) 3700 MHz, (17) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (39) 1900 MHz, (28) 700 MHz, (66) 1700 MHz, (71) 600 MHz, (13) 700 MHz, (18) 850 MHz, (19) 850 MHz, (32) 1500 MHz, (34) 2000 MHz, (14) 700 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n79) 4700 MHz, (n66) 1700 MHz, (n71) 600 MHz, (n26) 850 MHz, (n2) 1900 MHz, (n12) 700 MHz, (n13) 700 MHz, (n14) 700 MHz, (n18) 850 MHz, (n25) 1900 MHz, (n30) 2300 MHz, (n48) 3500 MHz
LAN speed
(1) 100/1000/2500Mbps
LAN ports 2.5G
1
Max. power consumption [W]
14,5
Buttons
Reset
Operating temperature [°C]
-40 up to 65
Width [mm]
165
Height [mm]
220
Depth [mm]
67
SIM slot
Yes
SIM slots quantity
2
IPv6 support
Yes
