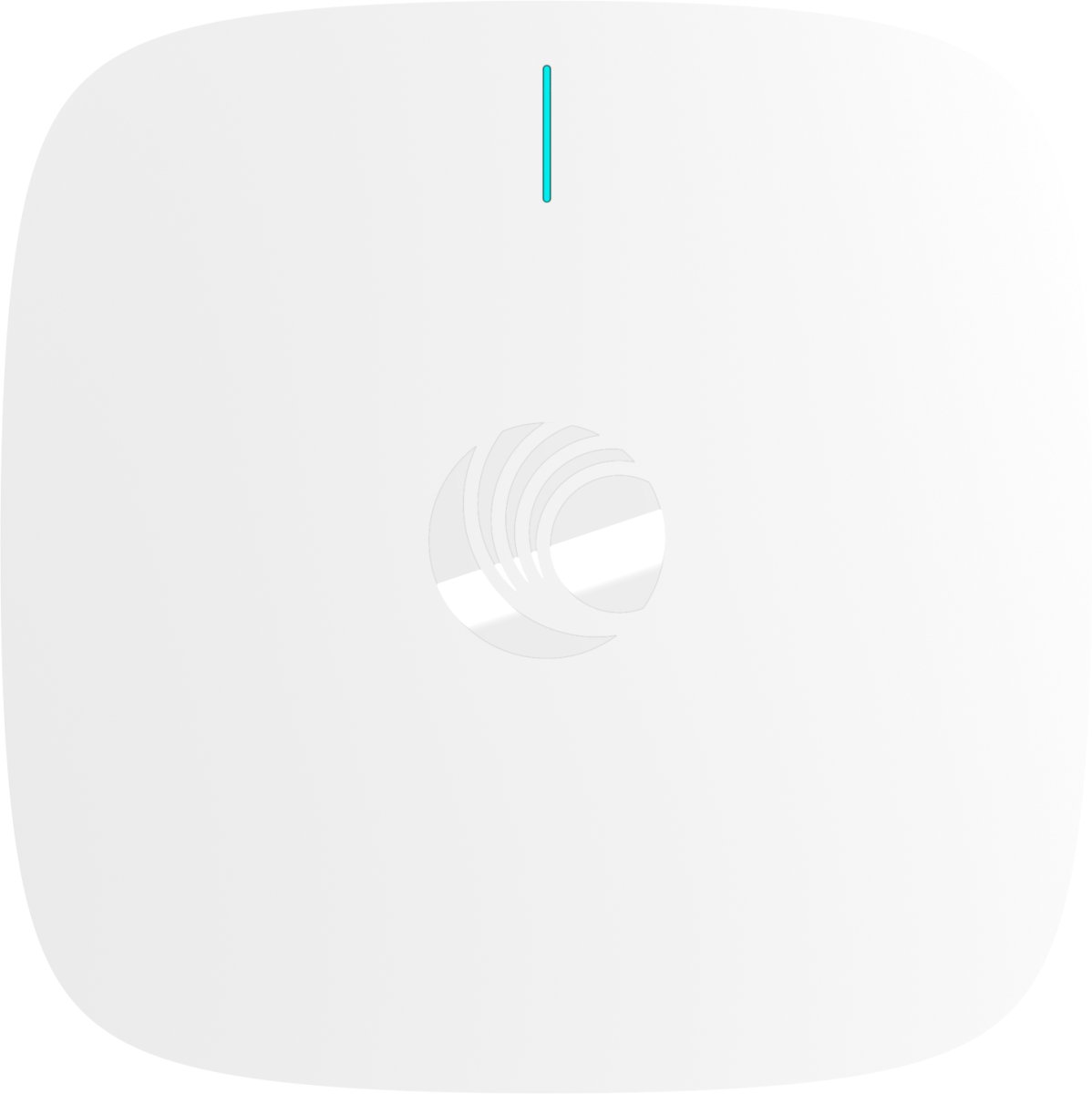

Cambium Networks X7-55X Tri-band Wi-Fi 7 indoor Access Point

Cambium Networks X7-55X Tri-band Wi-Fi 7 indoor Access Point
Your price incl. VAT (20.0%)
1,846.48 EUR
❌ The item is not available. There is no option to order.
Delivery No confirmed delivery date
Cambium Networks
Manufacturer
Product number
X7-55X-0A00-EU
Product Code
RL030.298
Warranty
60 months

Product description

The Cambium Networks’ X7-55X Wi-Fi 7 Indoor Access Point (AP) with its software definable third radio is designed to deliver high density and cutting-edge performance with flexibility for current and future demands at a price point suitable for any market. Power your network with the latest Wi-Fi technology. The IoT radio is suited to support BLE, Zigbee, Matter or Thread and accommodate for any IoT requirement.

Free online tool for designing your Cambium Wi-Fi network

Link to Wi-Fi Designer:

Key features

  • Tri-radio/Tri-band Wi-Fi 7
  • 6 GHz (4x4), 5 GHz (4x4), 2.4 GHz (2x2)
  • Up to 17.9 Gbps aggregate data rate
  • 5 GbE uplink port
  • LPI (low power indoor) mode
  • Passpoint 3.0
  • IOT radio to support many protocols
  • Managed by cnMaestro™
  • 60 months warranty

X7-55X operates using Cambium’s cnMaestro Network Management, accessible on both cloud and on-premises platforms. Aligned with Cambium’s ONE Network, cnMaestro facilitates the management of all devices through a user- friendly interface, streamlining control from backhaul to edge devices. This enables you to start managing your network right away, reducing training and troubleshooting time.

Download

https://download.discomp.cz/Cambium/Datasheet/Cambium_Networks_data_sheet_WiFi-7_X7-55X_AP.pdf
Download Datasheet

Technical parameters

LAN ports
Power over Ethernet
802.3bt
Maximum modulation
4096 QAM
Operating mode
Access Point
Management
Web management, Cambium cnMaestro cloud
Wireless frequency
2.4 + 5 + 6 GHz (triple band)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11be, 802.11ax
MU-MIMO
Yes
Hotspot 2.0
Yes
Transmission speed - 5GHz [Mb/s]
5760
Transmission speed - 2.4GHz [Mb/s]
574
Transmission speed - 6GHz [Mb/s]
11520
Tx power 2.4GHz [dBm]
25
Tx power 5GHz [dBm]
26
Tx power 6GHz [dBm]
26
Security
WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
4 x 4
6GHz MIMO
4 x 4
Type of antenna
Built-in
Purpose
Indoor
Roaming
Yes
Antenna gain [dBi]
6
LAN ports
1
LAN speed
(1) 100M/1G/2.5G/5G
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
33
USB ports 2.0
1
Buttons
Reset
Operating temperature [°C]
0 up to 50
Weight [g]
1600
Width [mm]
240
Height [mm]
50
Depth [mm]
240
USB
Yes
IPv6 support
Yes
