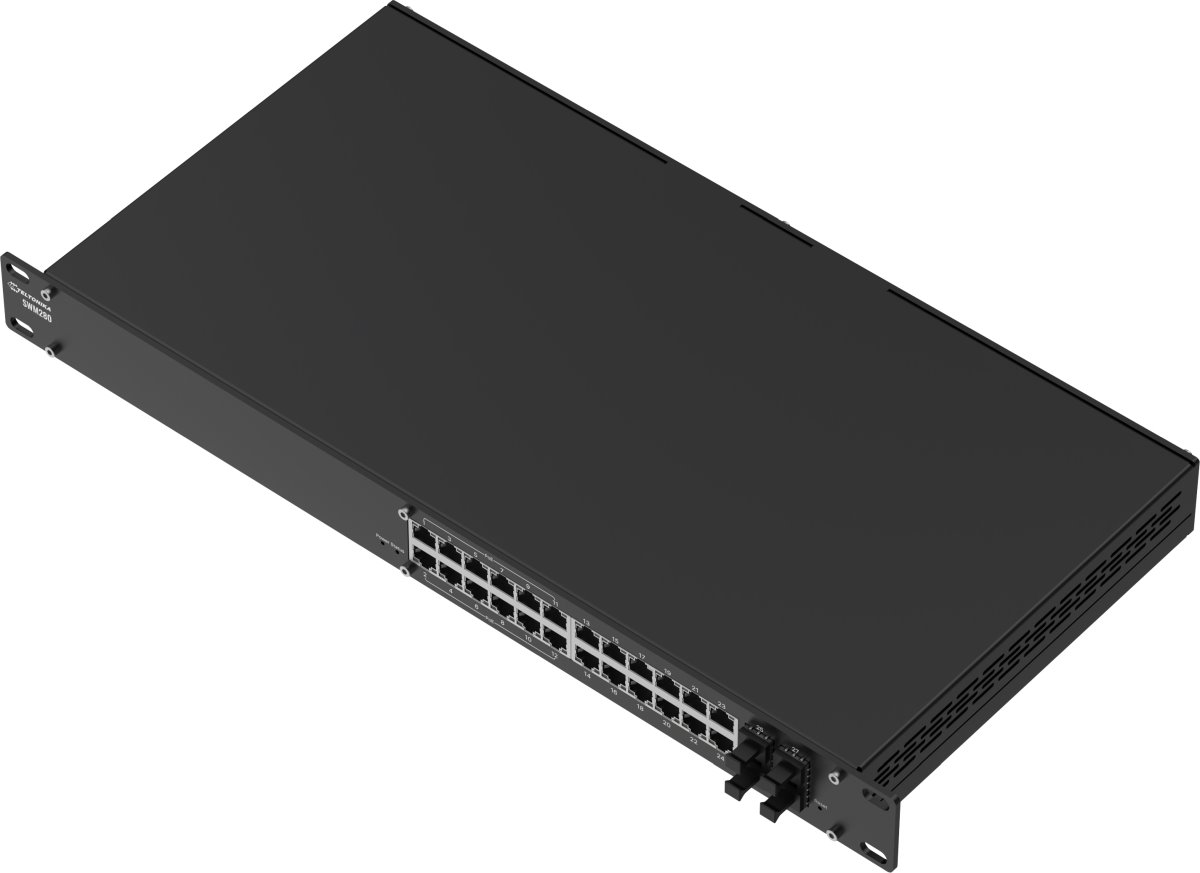

Teltonika SWM280 Industrial Managed Switch, 24x GLAN, 4x SFP, Falf PoE Switch
Your price incl. VAT (20.0%)
282.91 EUR
Ordered for stock
Planned Delivery Date by Courier to you 01-10-2025
You have a choice of 3 variants
Product description
The SWM280 is a powerful L2 managed switch with L3 features for advanced network control. Designed for high-performance connectivity, this 24-port switch combines 12 PoE+ ports, 12 Gigabit Ethernet ports, and 4 SFP ports. The PoE+ supply up to 30 W per port and a total power budget of 300 W. The SWM280 supports PROFINET & other industrial protocols, enabling flexibility over management and power supply.
FREE 2 years of RMS Management!
Key features
- PoE+: Deliver power and data through 12 PoE+ ports with up to 30W per port
- L2+: Advanced routing protocols, VLAN segmentation, and TPM 2.0 security
- Cloud-enabled: Shipped with 2 years of RMS Management
- Protocols: Profinet, MRP, and EtherNet/IP for mixed industrial environments

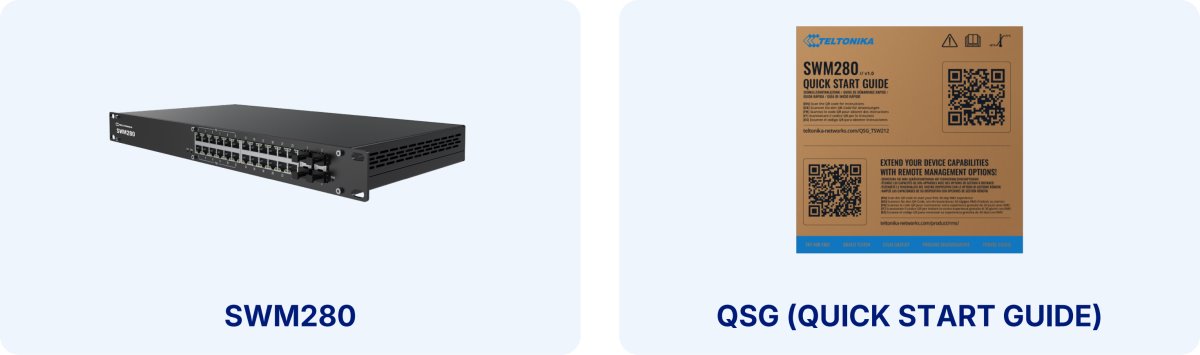

Package contents
- Device
- QSG (Quick Start Guide)
Download
Technical parameters
LAN ports
Jumbo frame [Bytes]
10000
Design
Rackmount
Packet forwarding rate [Mpps]
83.33
Switchning capacity [Gbps]
56
MAC address table
8000
Web management
Yes
Management
SSH, Teltonika RMS, Web management
Features
L2+, QoS, VLAN
Power type
Mains power (230V)
Operating system
TSWOS (OpenWrt based Linux OS)
Fans
No
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
4
Optical interfaces
(4) 1000Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
12
PoE budget [W]
300
Max. power consumption [W]
25
Chassis design
Metal
Power via connector/terminal
100-240 V AC~50/60 Hz
Buttons
Reset
Operating temperature [°C]
0 up to 50
Depth [mm]
234
Width [mm]
483
Height [mm]
44
Default IP address
192.168.1.2
Default login and password
admin / (preset password, see label/engraving)
