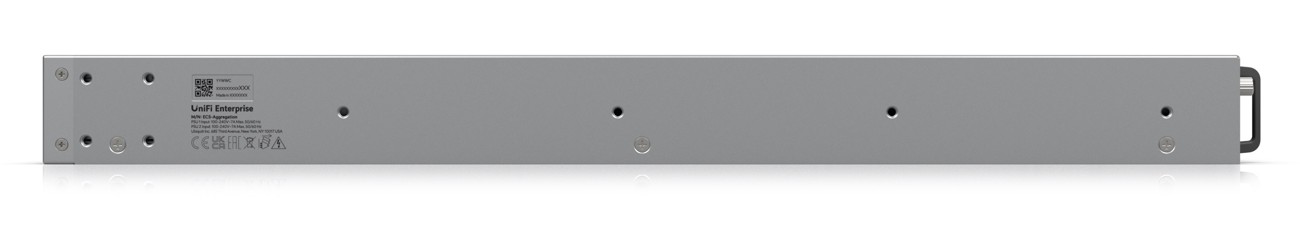

Ubiquiti ECS-Aggregation - UniFi Enterprise Campus Aggregation switch

Ubiquiti ECS-Aggregation - UniFi Enterprise Campus Aggregation switch
Your price incl. VAT (20.0%)
3,138.18 EUR
Ordered for stock
Delivery Planned Delivery Date by Courier to you 10-09-2025
Ubiquiti
Manufacturer
Product number
ECS-Aggregation
Product Code
RL029.942
Warranty
24 months

Product description

Notice: The sale of this item is subject to manufacturer approval and is available only as part of a project. To purchase the product, a request must be submitted through your primary sales contact. Without approval and a project, the item cannot be supplied.

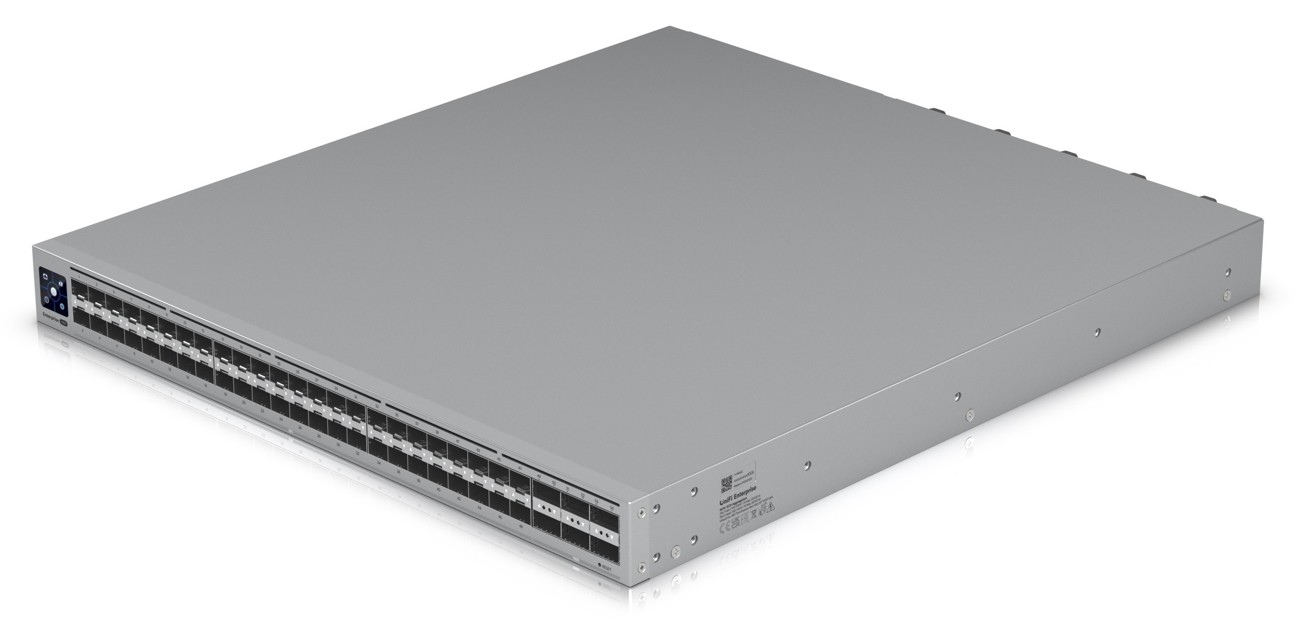

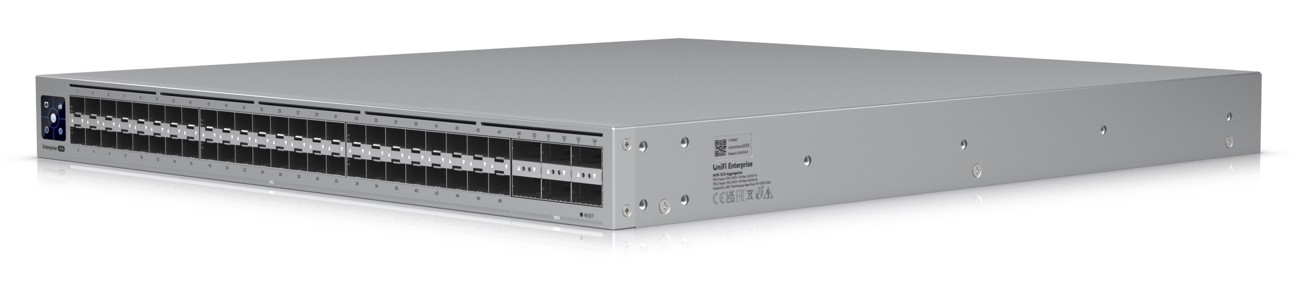

Ubiquiti UniFi Enterprise Campus Aggregation is a device from the Enterprise series designed for enterprise environments.

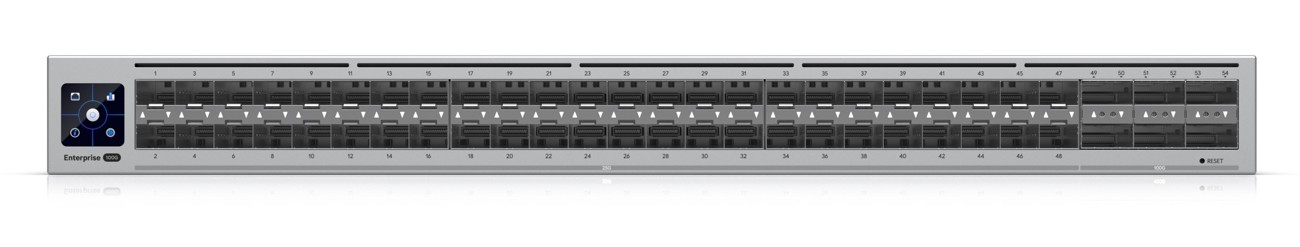

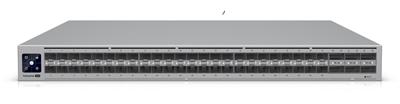

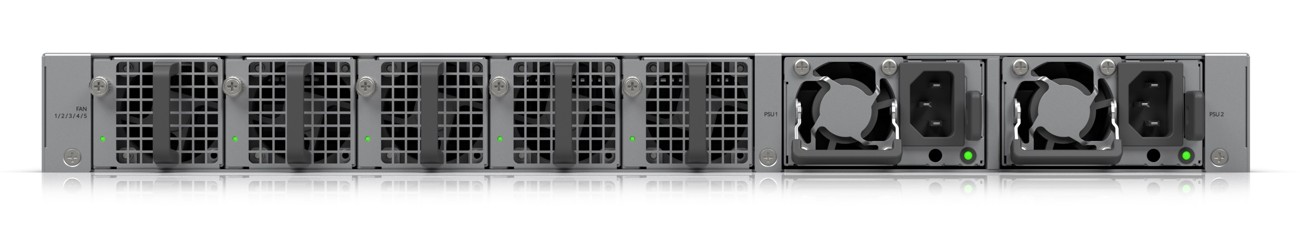

This aggregation switch with MC-LAG support is designed for high-availability installations. It features dual hot-swap power supplies with 550W each and five hot-swap fans. It offers 48x SFP28 ports for connecting access switches and 6x QSFP28 ports for uplink.

Centralized Management

UniFi devices are centrally managed using the UniFi Network Server application. The application is available for download on Windows / Linux / macOS, or a standalone hardware controller can be purchased. The application is also included in selected UniFi routers.

Package Contents

  • Device

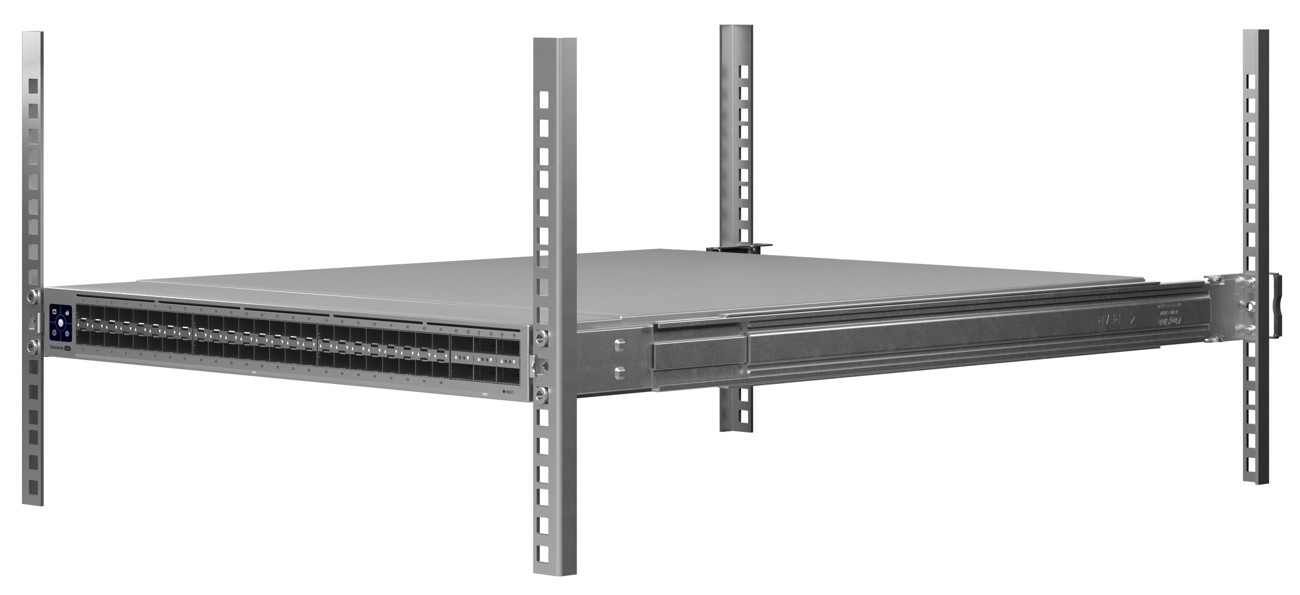

  • (2) Rack-mount rails
  • (2) 550W hot-swap power supplies
  • (5) Hot-swap fans
  • (2) Power cables
  • (2) Rack-mount brackets
  • Mounting kit

Download

https://dl.ui.com/qig/ecs-aggregation/#index
Download Installation Guide
https://techspecs.ui.com/unifi/switching/ecs-aggregation#datasheet
Download Datasheet

Technical parameters

LAN ports
Switchning capacity [Gbps]
3600
MAC address table
128000
Packet forwarding rate [Mpps]
2400
Design
Rackmount
Management
UniFi Network
Features
L3, L2
Power type
Mains power (230V)
Fans
Yes
SFP28 cages
48 (10G/25G support)
QSFP28 cages
6 (40G/100G support)
Optical interfaces
(6) 40G/100G + (48) 10G/25G
Redundant power supply
Yes
Max. power consumption [W]
340
Chassis design
Metal
Buttons
Reset
Operating temperature [°C]
-5 up to 40
Depth [mm]
496
Width [mm]
442
Height [mm]
44
Default IP address
Dynamic from DHCP
Default login and password
Is set by the user at the first startup
Other features
Touchscreen
