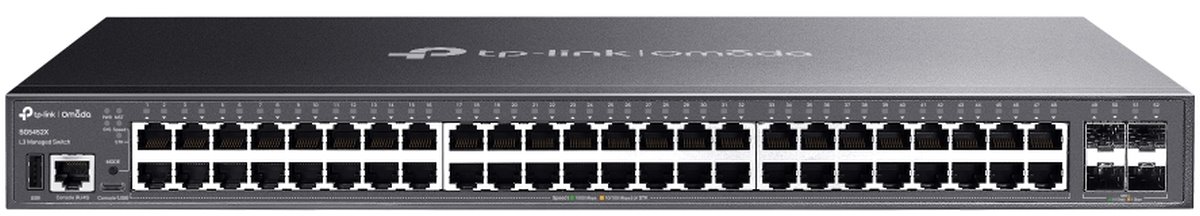

TP-Link SG5452X - Omada 48-Port Gigabit Stackable Lite L3 Managed Switch with 4× 10G SFP+ Slots
Your price incl. VAT (20.0%)
855.06 EUR
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 01-04-2026
You have a choice of 2 variants
10.53 EUR excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
13.70 EUR excl. VAT
417.70 EUR excl. VAT
786.27 EUR excl. VAT
6.32 EUR excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
13.70 EUR excl. VAT
Product description
Omada SG5452X is a dependable entry-level L3 managed switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts with 48× gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452X offers a reliable networking solution for SMEs, and ISPs.
Key features

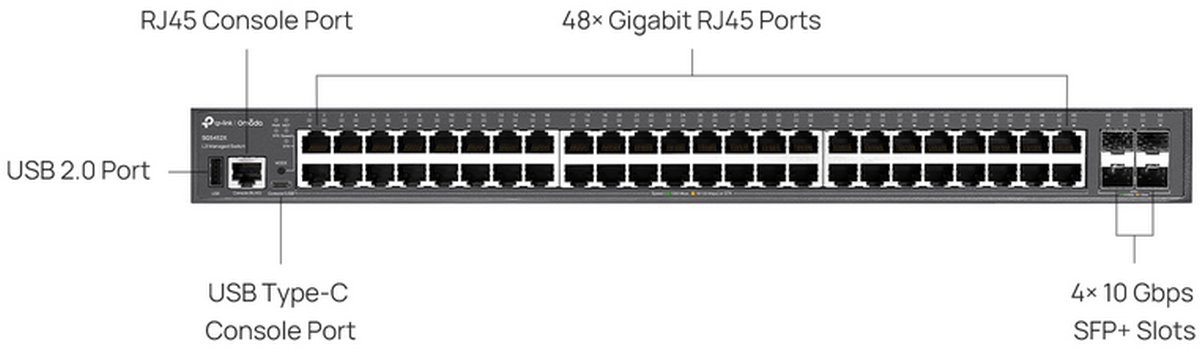

- 48× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 4× 10 Gbps SFP+ slots
- Physical stacking up to 4 units for built-in redundancy and performance
- L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
- Security strategies: ACL, Port Security, DoS Defend, 802.1X
- ERPS supports rapid protection and recovery in a ring topology
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON

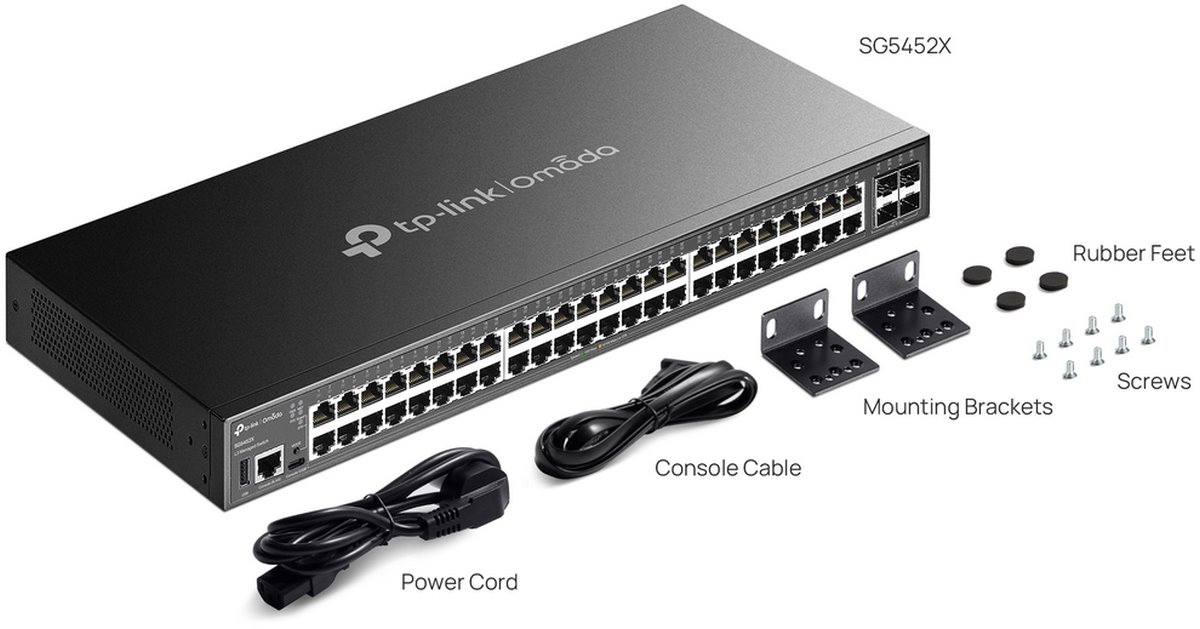

Package contents
Download
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
176
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
131
Web management
Yes
Management
Web management, Omada controller
Features
L3, VLAN, QoS, Physical stacking, DHCP snooping
Power type
Mains power (230V)
Fans
No
LAN speed
(48) 10/100/1000Mbps
Max. LAN ports speed
1G
RJ45 ports 1G
48
SFP+ cages
4
Optical interfaces
(4) 10Gbps
Max. power consumption [W]
35
Chassis design
Metal
USB ports 2.0
1
Power via connector/terminal
100-240 V AC~50/60 Hz
Buttons
Switch mode
Operating temperature [°C]
-5 up to 45
Width [mm]
440
Height [mm]
44
Depth [mm]
220
Default IP address
192.168.0.1
Default login and password
admin / admin
