Grandstream HT814 FXS ATA gateway
Your price incl. VAT (20.0%)
105.88 EUR
✅ Availability in an external Partner
Planned Delivery Date by Courier to you 17-12-2025
51.39 EUR excl. VAT
49.91 EUR excl. VAT
Product description
The HT814 is an advanced 4-port VoIP gateway with 4 FXS ports and an integrated Gigabit NAT router.
Key features
- Supports 2 SIP profiles through 4 FXS ports and dual Gigabit ports
- Includes a built-in NAT router which can handle routing speeds up to 100MBps
- TLS and SRTP security encryption technology to protect calls and accounts
- Automated provisioning options include TR-069 and XML config files
- Supports 3-way voice conferencing
- Failover SIP server automatically switches to secondary server if main server loses connection
- Supports T.38 Fax for creating Fax-over-IP
- Supports a wide range of caller ID formats
- Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning

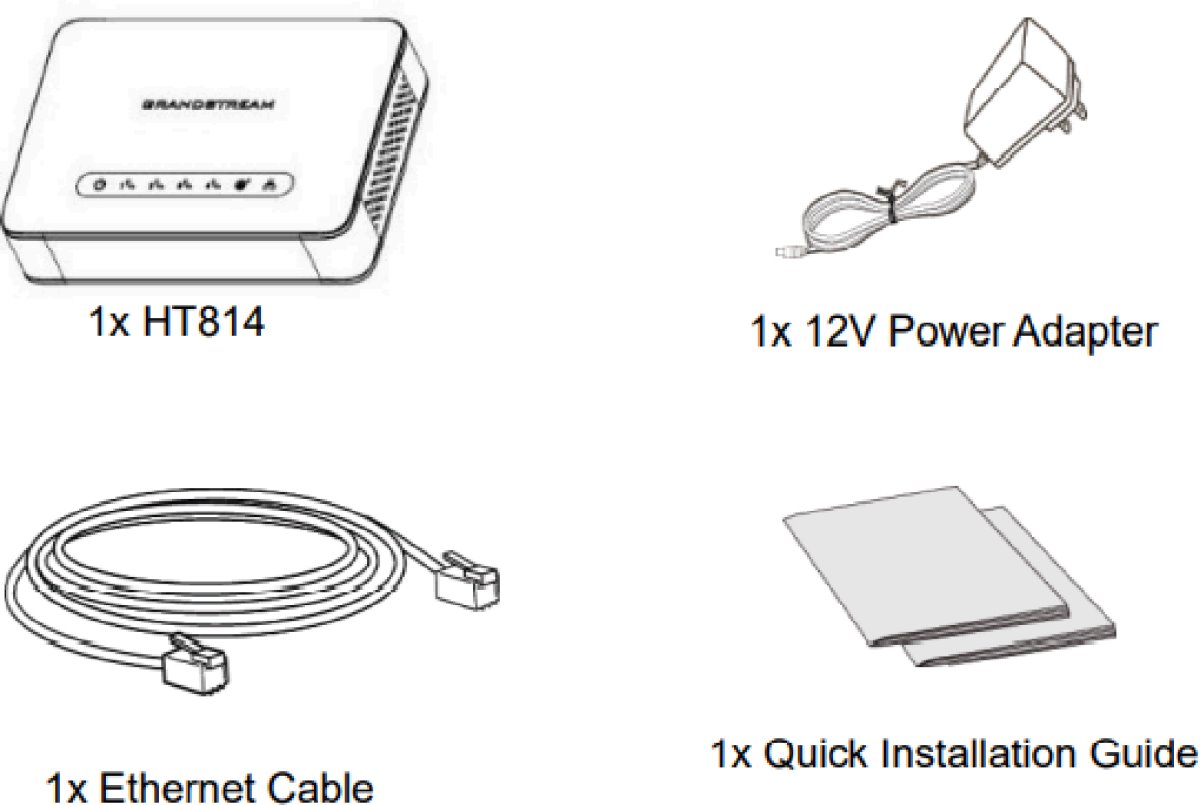

Package contents
- Device
- 12V Power adapter
- Ethernet cable
- Quick Installation Guide
Download
Technical parameters
LAN ports
Number of SIP lines
2
VoIP protocols
SIP
Codecs
G.722, iLBC
Management
Web management, SSH
LAN ports
2
LAN speed
(2) 10/100/1000Mbps
Output Voltage [V]
12
Power via connector/terminal
12V / 1A
Buttons
Reset
Operating temperature [°C]
0 up to 50
Weight [g]
290
Width [mm]
130
Height [mm]
29
Depth [mm]
90
