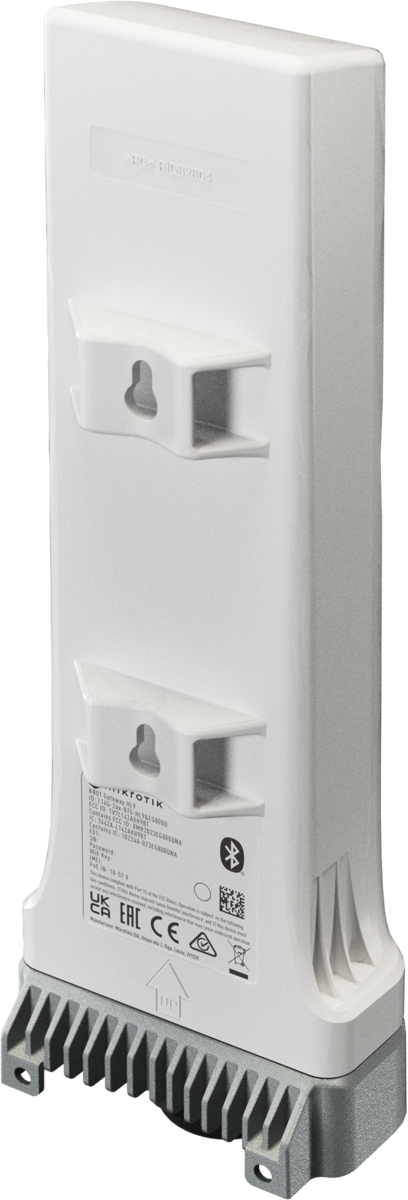

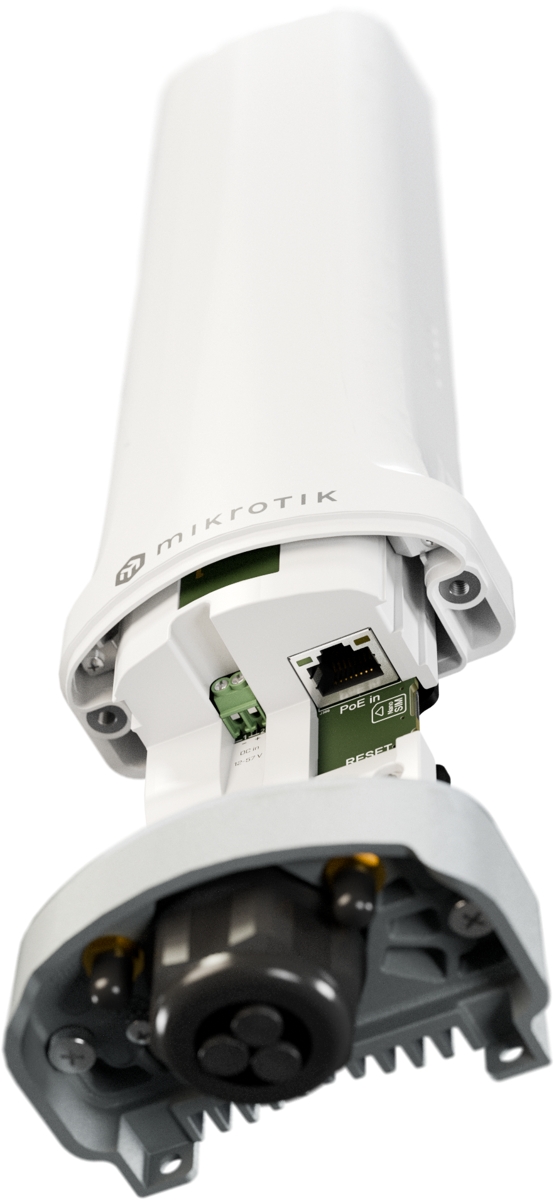

MikroTik L14G-2ax-BT5-HL9&EG800Q, KNOT Gateway HL9

Power over Ethernet

802.3af, 802.3at

Protection class

IP66

Design

On the wall, On the mast

Operating mode

AP Router, Cellular router

Wireless frequency

2.4 GHz, LTE, 915 MHz, Bluetooth, GNSS

WiFi standards

802.11ax, 802.11b/g, 802.11n, 802.11ah

Type of antenna

Built-in

Integrated 4G/LTE radio part

Yes

Power type

PoE, DC terminal

4G/LTE bands support

(12) 700 MHz, (13) 700 MHz, (2) 1900 MHz, (4) 1700 MHz, (5) 850 MHz, (66) 1700 MHz

Operating system

RouterOS v7 - L4

LAN speed

(1) 10/100/1000Mbps

LAN ports 1G

1

Gigabit LAN

Yes

PoE type

PoE-In (only)

RJ45 ports 1G

1

Max. power consumption [W]

9

Power via connector/terminal

12 .. 57V DC

Operating temperature [°C]

-40 up to 50

Width [mm]

88

Height [mm]

254

Depth [mm]

57

CPU

IPQ-5010

CPU frequency [MHz]

800

CPU cores

2

SIM slot

Yes

SIM slots quantity

1

IPv6 support

Yes

Internal storage [MB]

128

RAM [MB]

256

GPS modul

Yes
