Ubiquiti Network Video Recorder Instant Kit, recording device with 4 cameras

Описание на продукт

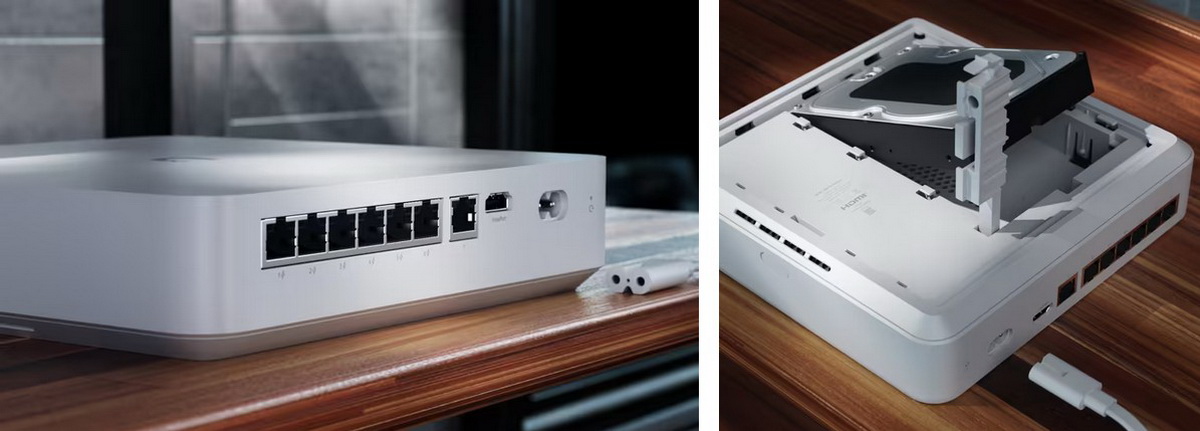

UniFi Protect UNVR Instant is sold as a recording device kit including a 1TB 3.5'' HDD and 4 cameras UVC G5 Turret Ultra. It is possible to connect up to 15 cameras in HD resolution, 8 cameras in 2K resolution or 6 cameras in 4K to the UNVR. UNVR is is equipped 1 x GbE RJ45 uplink port and 6x GbE PoE RJ45 downlink ports with support PoE power supply 802.3af which is using for cameras connection. PowerSupply of NVR is 230V AC from the mains and its consumption without connected accessories and cameras is 9 W. Cameras UVC G5 Turret Ultra with resolution MP (2688 x 1512) are equipped with fixing lens, which has field of view 102,4° horizontally and 54,9° vertically. The cameras have microphone and 10/100Mbps Ethernet port, which serves to power the camera via POE 802.3af or passive POE with supported voltage range 37 - 57 V DC.

Key Features

• UNVR with 4 cameras with 2K resolution
• Storage Capacity 3,5" HDD 1 TB (included)
• Mounting Wall, ceiling mount (included)
• Connection camera 10/100 MbE RJ45 port

Package contents

• Device
• 4 x camera G5 Turret Ultra
• 1 x 3,5" HDD with capacity 1 TB
• Mounting pad
• Mounting accessories

Свали

https://techspecs.ui.com/unifi/cameras-nvrs/unvr-instant-kit#datasheet

Datasheet
