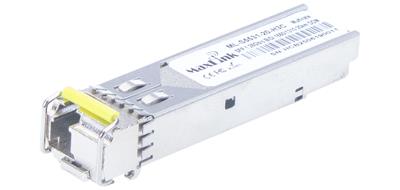

MaxLink 1.25G SFP optical HP modul, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDM, H3C komp.
Нов
Вашата цена с ДДС (20.0%)
7.21 EUR
✅ В наличност < 10 Бр.
Планирана Дата Доставка на Куриер до Вас 17-09-2025
Имате избор от 2 варианта
MaxLink 1.25G SFP optical HP module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20km, 1x LC connector, DDM, H3C comp.ML-S3155-20-H3C
4.60 EUR без ДДС
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тукMaxlink ML-S5531-20-H3C is a 1.25G SFP WDM module with a Tx 1550 / Rx 1310 wavelength, a single LC connector, and a maximum transmission distance of 20km over single-mode optical fiber. The SFP module supports monitoring (DDM).
The LC connector in the SFP module uses UPC polishing.
H3C Compatibility
The modules are compatible with 3Com/HP/H3C A-series switches (A5120/5500/5800/5900/7500/10500 and others), as well as with H3C S-series switches.
Технически параметри
LAN ports
Compatibility
H3C
Tx power [dBm]
-9 up to -3
Format
SFP
For cable type
Single Mode
Optical Connectors
(1) LC
Transmission speed
1 Gbps
Wavelength - Tx/Rx [nm]
1550 / 1310
Distance [km]
20
Transfer type
WDM
DDMI - diagnostics
Yes
Polishing type
UPC
Receiver sensitivity [dBm]
-23
Operating temperature [°C]
0 up to 70
