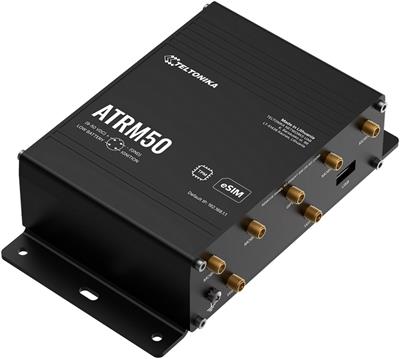

Teltonika ATRM50 5G Router for Transportation, M12 connectors
Вашата цена с ДДС (20.0%)
768.94 EUR
Поръчан за склад
Планирана Дата Доставка на Куриер до Вас 17-09-2025
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тукThe ATRM50 is a rugged 5G router built for transportation, featuring 4× M12 Gigabit Ethernet ports and M12 power input for durable, secure connections. It delivers ultra-high cellular speeds up to 3.4 Gbps and supports dual SIM with eSIM™ for seamless failover. Certified to EN 45545-2 and EN 50155 standards, the ATRM50 is engineered to meet the rigorous safety and reliability requirements of railway systems—while also being a strong fit for other demanding transportation environments. The router comes with GNSS, an integrated mounting bracket, and is compatible with RMS for efficient on-site and remote management.
Key features

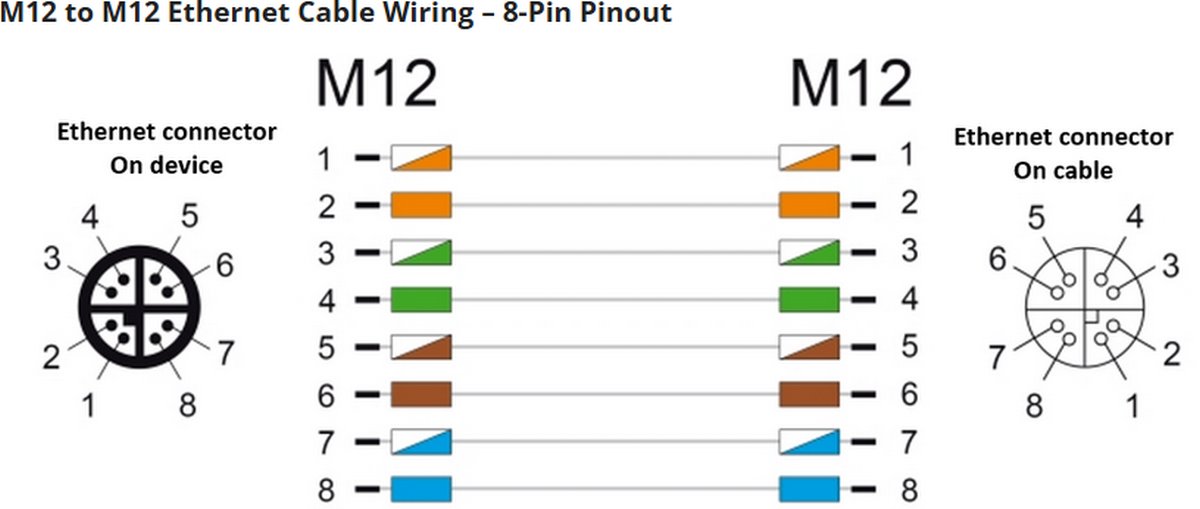

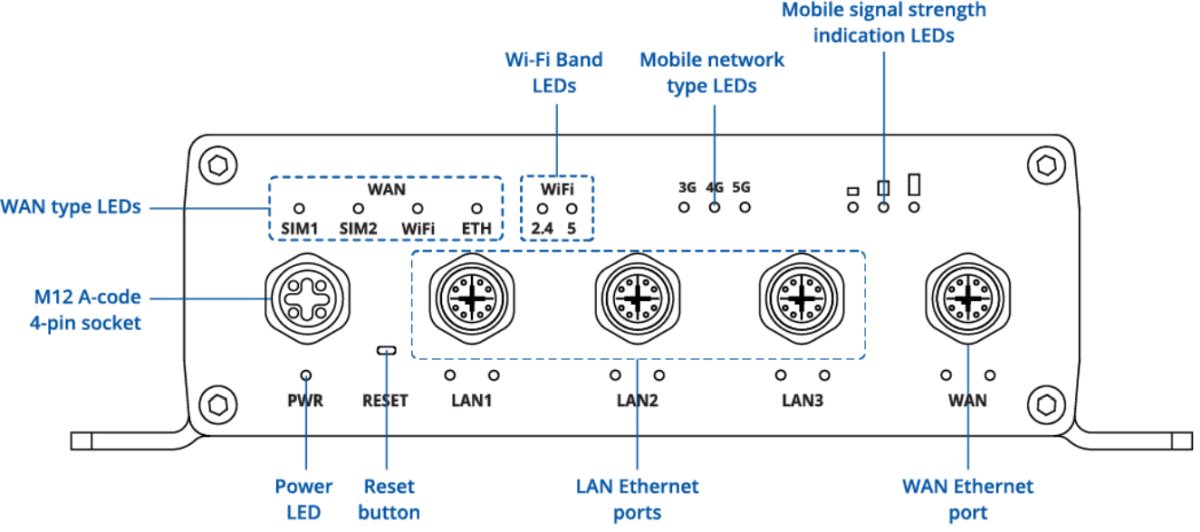

- M12 CONNECTORS: 4 × M12 X-coded Gigabit Ethernet ports, 1 × M12 A-coded power input
- 5G: Ultra-high cellular speeds of up to 3.4 Gbps
- DUAL SIM & eSIM™: With auto failover, backup WAN and other switching scenarios
- CERTIFICATES: EN 45545-2 and EN 50155

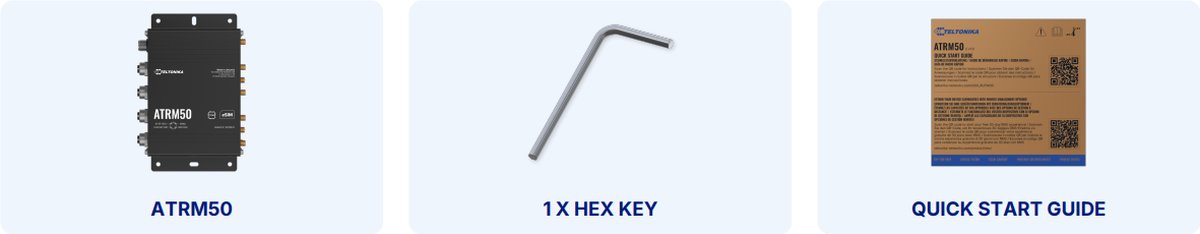

Package contents
Свали
Технически параметри
LAN ports
WAN speed
(1) 10/100/1000Mbps
Protection class
IP30
Design
Desktop, Industry
Supported VPN
PPTP, L2TP, IPSec, OpenVPN, WireGuard, ZeroTier, GRE, Tinc
Operating mode
Client, AP Router, Access Point, Cellular router
Management
Web management, SSH, Teltonika RMS
Wireless frequency
2.4 + 5 GHz (dual band), LTE, 3G (GSM), 4G (GSM), 5G (GSM)
WiFi standards
802.11n, 802.11ac, 802.11b/g, 802.11ac - wave2
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
866
Transmission speed - 2.4GHz [Mb/s]
300
Security
WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
7
RF connectors
(2) RSMA female, (5) SMA female
Purpose
Indoor
Integrated 4G/LTE radio part
Yes
Power type
M12 A code 4-pin male connector
4G/LTE bands support
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (71) 600 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n7) 2600 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n71) 600 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN ports
3
LAN speed
(3) 10/100/1000Mbps
Max. power consumption [W]
16
Power via connector/terminal
9 .. 50V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
550
Width [mm]
167
Height [mm]
46
Depth [mm]
112
CPU
MIPS1004Kc
CPU frequency [MHz]
880
SIM slot
Yes
SIM slots quantity
2
IPv6 support
Yes
Default IP address
192.168.1.1
Default login and password
admin / (preset password, see label/engraving)
GPS modul
Yes
