Mimosa C6 - DEMO
използвано
Вашата цена с ДДС (20.0%)
1,337.70 EUR
✅ В наличност < 10 Бр.
Планирана Дата Доставка на Куриер до Вас 02-07-2025
Описание на продукт
Продуктът е напълно функционален и използван на изложение. Може да не съдържа пълни аксесоари или оригинална опаковка.
Това е автоматичен превод. Оригиналния текст може да видите тукThe product has original package, it is complete, but it was used on the exhibition.

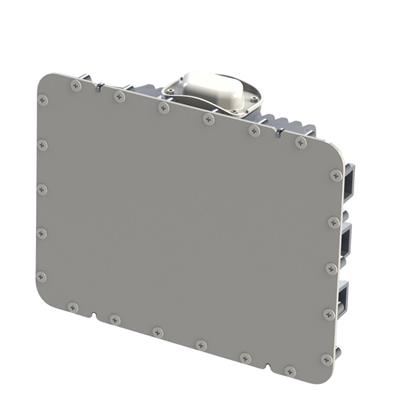

The Mimosa C6 is an outdoor client unit in a rugged chassis with high resistance to surrounding interference, IP67 rating, and an integrated 4x4 MIMO antenna with a 14 dBi gain (up to 20dBi with beamforming). The advanced antenna array with beamforming allows the unit to function even in challenging Non-Line-Of-Sight conditions. Thanks to these features, the unit can achieve speeds of up to 2500 Mbps at 160 MHz and operate in the frequency range of 5150 to 6425 MHz. For network connection, it is equipped with a Gigabit Ethernet port supporting passive PoE 50V. The maximum power consumption of the unit is 35W.
Key Features
- Advanced antenna array with beamforming for Non-Line-of-Sight scenarios
- Support for 6 GHz channels - 5150 to 6425 MHz
- Durable aluminum chassis, IP67 rating, operating temperature -40 to +55°C
- 4 x 4 MIMO, 2500 Mbps, 1024 QAM, 160 MHz
- High output power 24 dBm
- Wireless protocol WiFi Interop
- Powered via passive PoE (50V)
Свали
Технически параметри
LAN ports
Power over Ethernet
50V DC
F/B ratio [dB]
30
Cross-Pol Isolation [dB]
20
Protection class
IP67
Frequency range [MHz]
5150 - 6425
Maximum modulation
1024 QAM
Operating mode
Client
Wireless frequency
5 GHz
WiFi standards
Mimosa SRS, WiFi Interop
Transmission speed - 5GHz [Mb/s]
2402
Tx power 5GHz [dBm]
24
Elevation beam width (-6dB) [°]
15
Azimuth beam width (-6dB) [°]
90
5GHz MIMO
4 x 4
Type of antenna
Built-in
Purpose
Outdoor
Antenna gain [dBi]
14
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
35
Operating temperature [°C]
-40 up to 55
Weight [g]
2500
Width [mm]
275
Height [mm]
215
Depth [mm]
80
