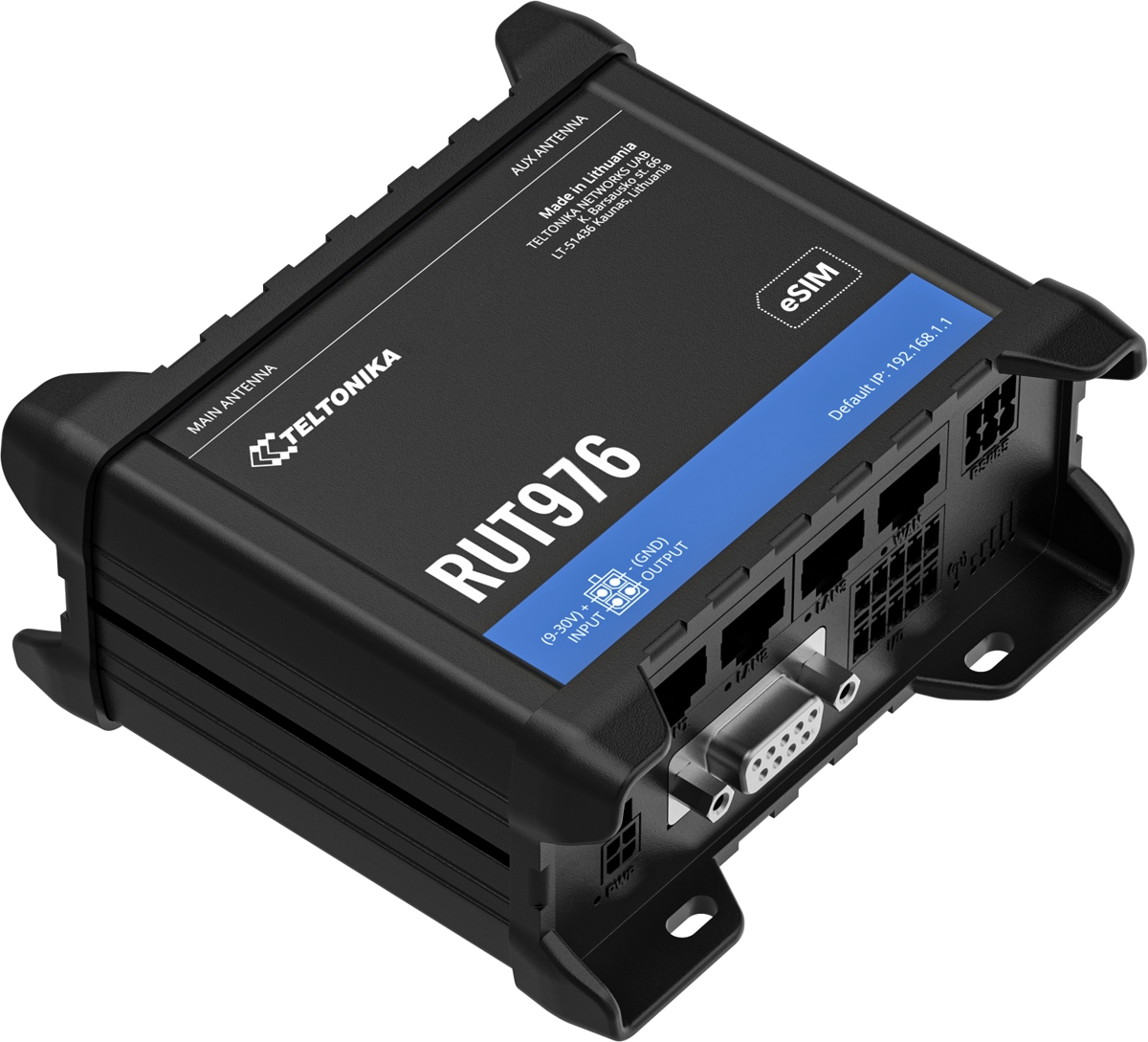

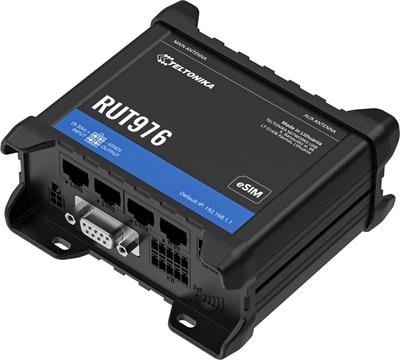

Teltonika RUT976, Industrial 5G RedCap Wi-Fi 4 router, eSIM
Your price incl. VAT (20.0%)
379.39 EUR
Ordered for stock
No confirmed delivery date
You have a choice of 2 variants
Product description

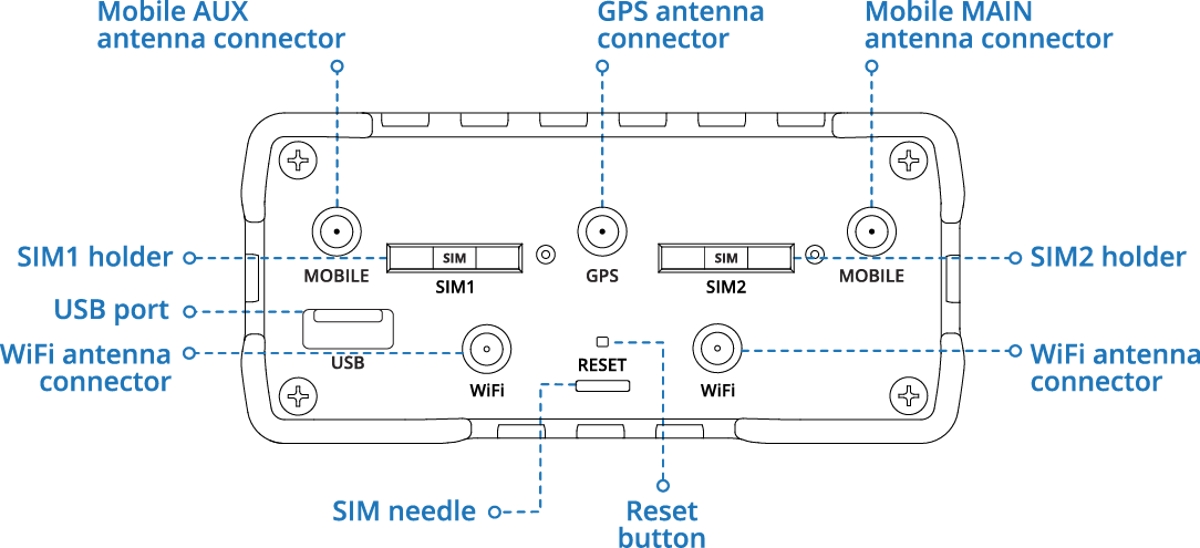

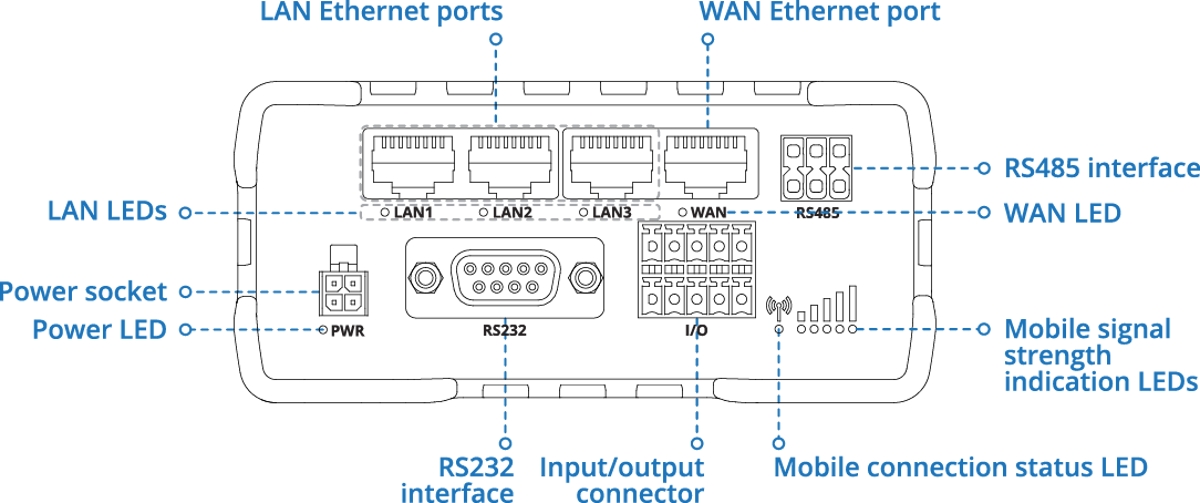

The Teltonika RUT976 is an industrial 5G RedCap (Reduced Capability) Wi-Fi 4 router with WAN and SIM failover, (4) 10/100Mbps ports (3x LAN, 1x WAN), 2.4GHz Wi-Fi 4 delivering throughput of up to 300Mbps, (1) RS232 and (1) RS485 serial interfaces, (1) 10-pin I/O terminal block, (3) SMA female connectors for (2) external 5G antennas and (1) GNSS antenna, (2) RP-SMA female connectors for external Wi-Fi antennas, (2) mini SIM slots and eSIM support.
The router is equipped with a modem supporting 5G RedCap and 4G, with data rates of up to 223Mbps downlink and 123Mbps uplink. Power can be supplied via the 4-pin DC connector (9-30 V) or passive PoE (9-30 V) on the LAN1 port.
Package contents
- Device
- (2) Mobile antennas
- (2) Wi-Fi antennas
- GNSS antenna
- SIM adapter kit
- Patch cable, 1.5m
- Power adapter 9V/1A
- Terminal blocks
Download
Technical parameters
LAN ports
Power over Ethernet
9 .. 30V DC
Operating mode
AP Router, Cellular router
Wireless frequency
2.4 GHz, LTE, GNSS, 5G (GSM)
WiFi standards
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]
300
Type of antenna
Detachable
RF connectors
(3) SMA female, (2) RP-SMA female
Power type
PoE, 4-pin automotive
Operating system
RutOS (OpenWrt based Linux OS)
Serial port
RS-232, RS-485
Width [mm]
110
Height [mm]
50
USB
Yes
RAM [MB]
128
