Teltonika TSW100 Industrial Unmanaged Switch
Нов
Вашата цена с ДДС (20.0%)
61.96 EUR
Поръчан за склад
Планирана Дата Доставка на Куриер до Вас 01-10-2025
Описание на продукт
Това е автоматичен превод. Оригиналния текст може да видите тукTSW100 is the first unmanaged industrial switch from Teltonika Networks. It offers 5 gigabit ports, four of which are PoE out 802.3af and 802.3at.
The total power budget is 120W (30W/port). Power is supplied via an industrial 4-pin connector in the range of 7 - 58V.
The device features a robust aluminum body and with additional kits, it can be mounted on a DIN rail or flat surfaces.
Note that TSW100 PoE ports works properly when switch is powered using PSU, which can supply 44-57 VDC. If TSW100 switch is powered with voltages ranging from 7 VDC to 43 VDC, it will work as standard switch, without PoE capabilities.
Key features

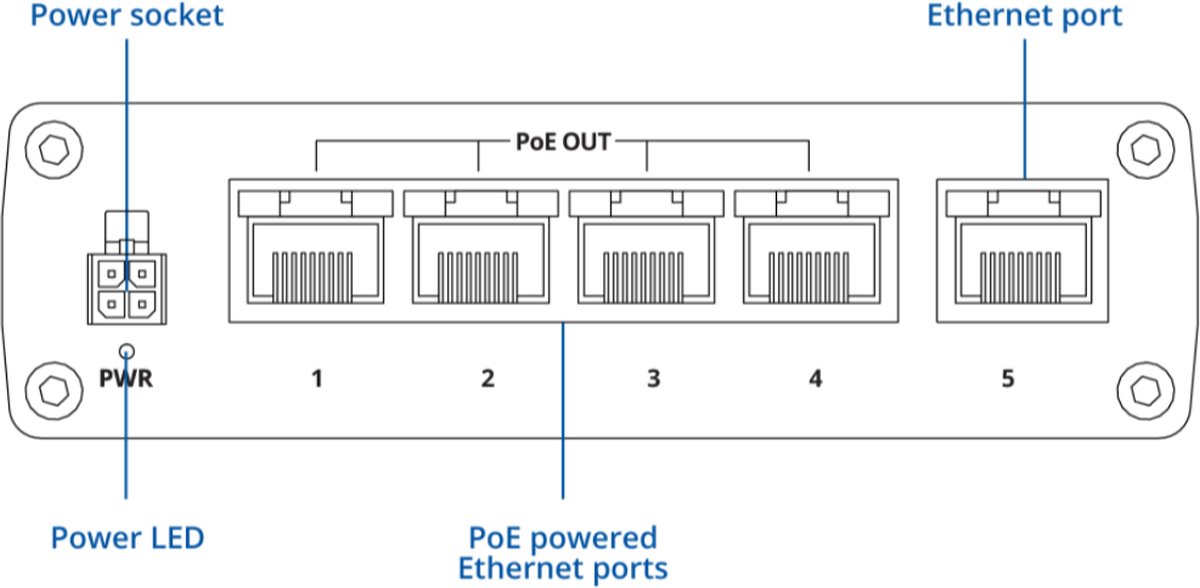

- POE+: 4 x PoE+ ports with 802.3af and 802.3at support
- POWER BUDGET: Total power budget at PSE up to 120 W
- ETHERNET: 5 x Gigabit Ethernet with speeds up to 1000 Mbps
- MOUNTING: DIN rail and surface mounting options

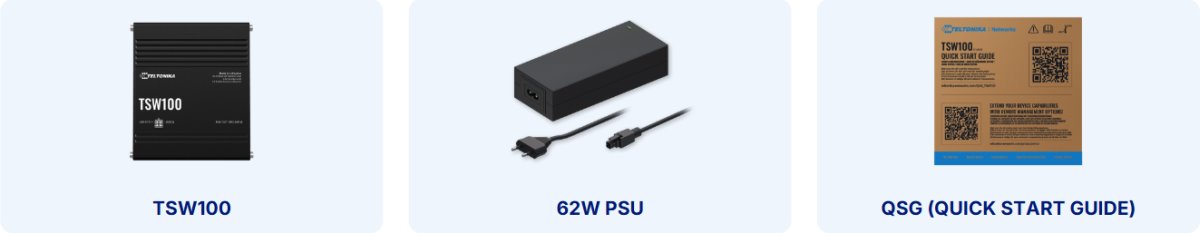

Package Contents
Свали
Технически параметри
LAN ports
Design
Industry, DIN rail
Switchning capacity [Gbps]
10
Jumbo frame [Bytes]
9216
MAC address table
2000
Power type
4-pin automotive
Fans
No
LAN ports
5
LAN speed
(5) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
PoE-Out standards
802.3af, 802.3at
PoE Out ports
4
PoE budget [W]
120
Max. power consumption [W]
130
Chassis design
Metal
Power via connector/terminal
7 .. 57V DC
Operating temperature [°C]
-40 up to 75
Weight [g]
350
Width [mm]
115
Height [mm]
32
Depth [mm]
101
