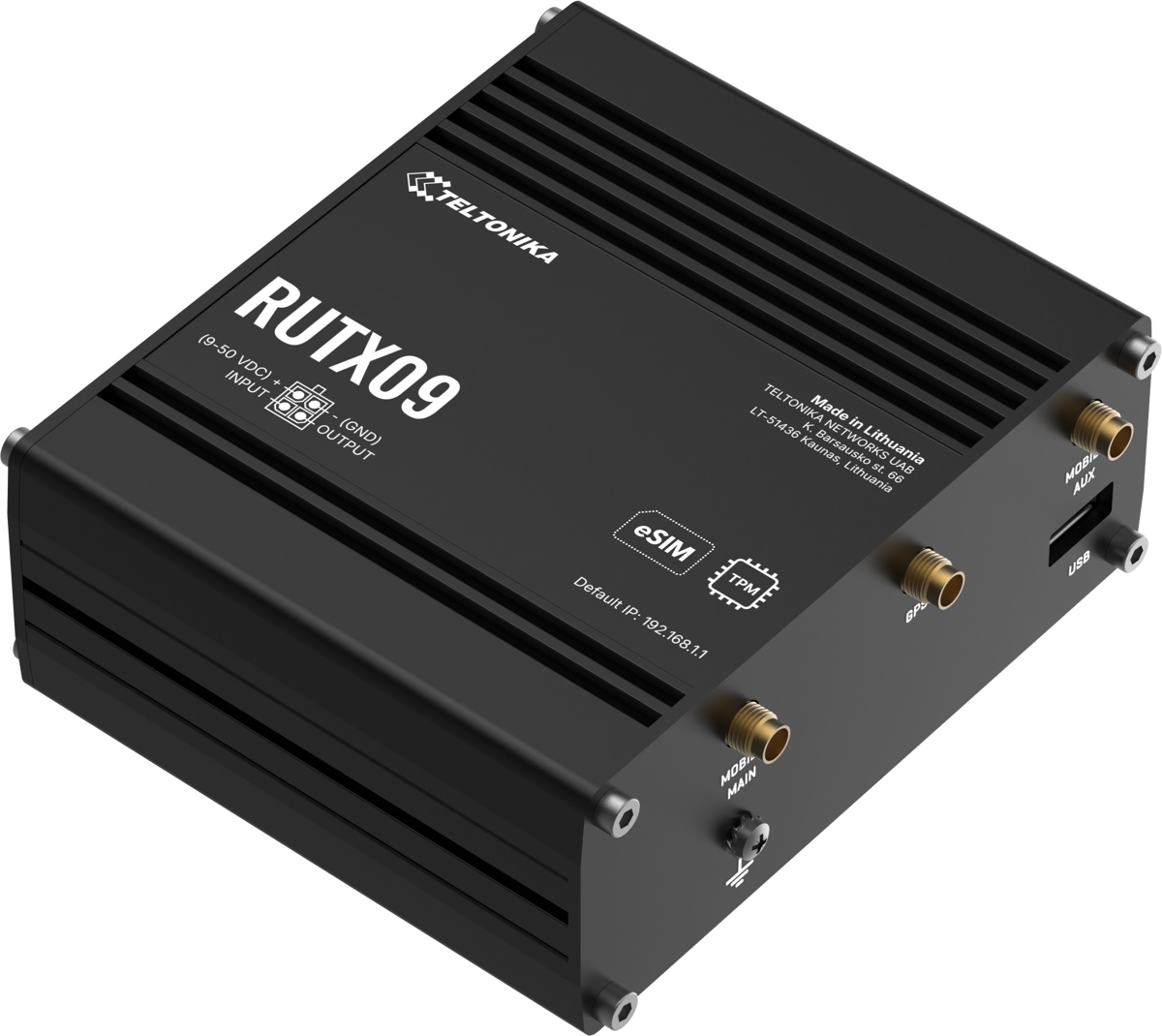

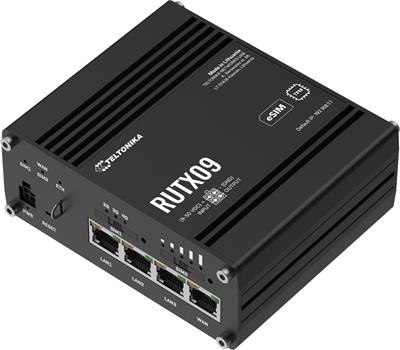

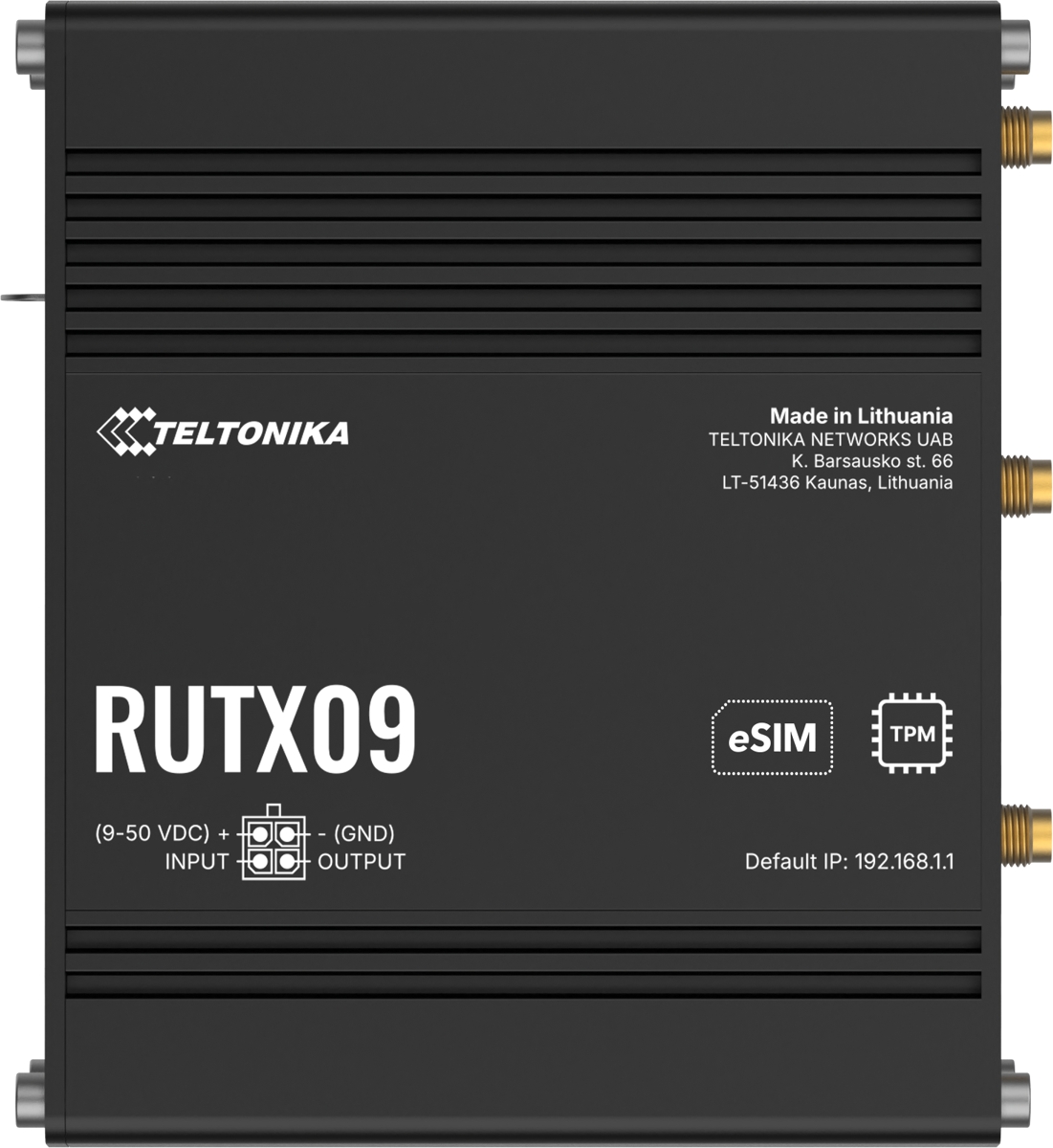

Teltonika RUTX09, Industrial 4G router, eSIM
Your price incl. VAT (20.0%)
322.26 EUR
Ordered for stock
No confirmed delivery date
You have a choice of 2 variants
Product description

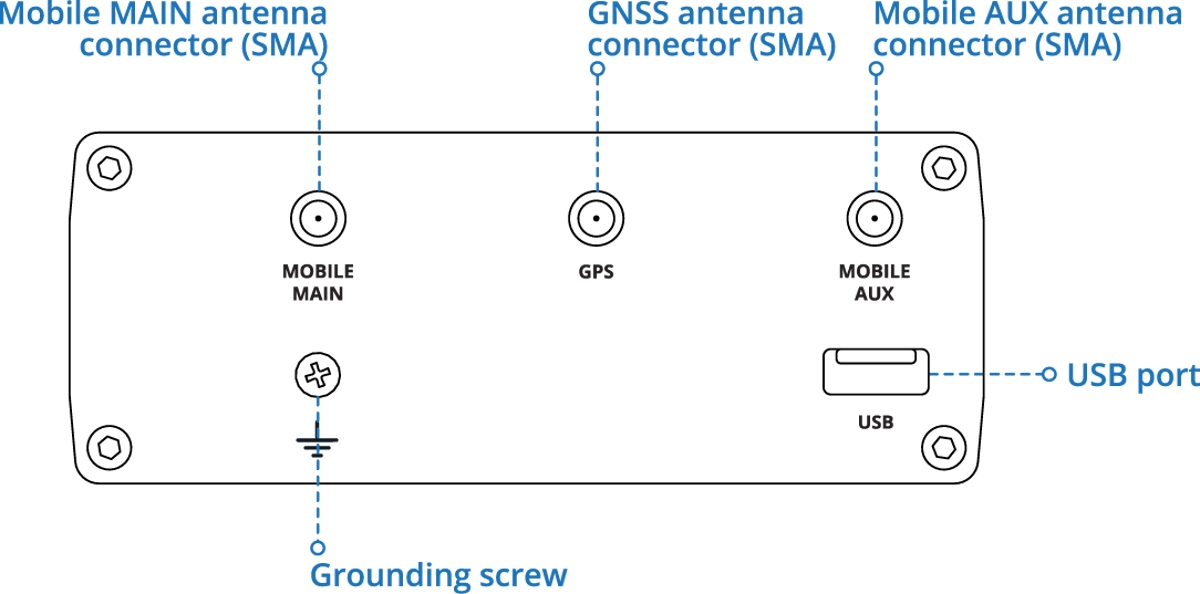

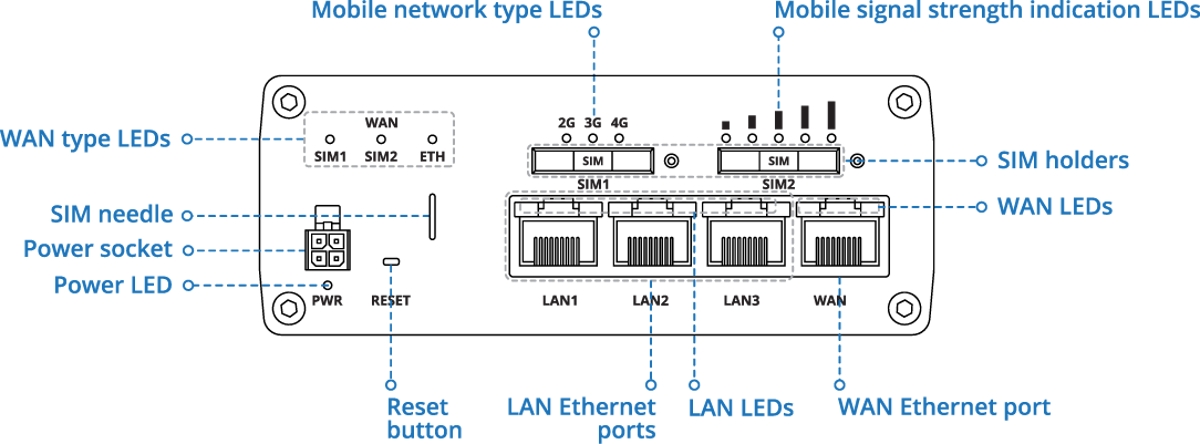

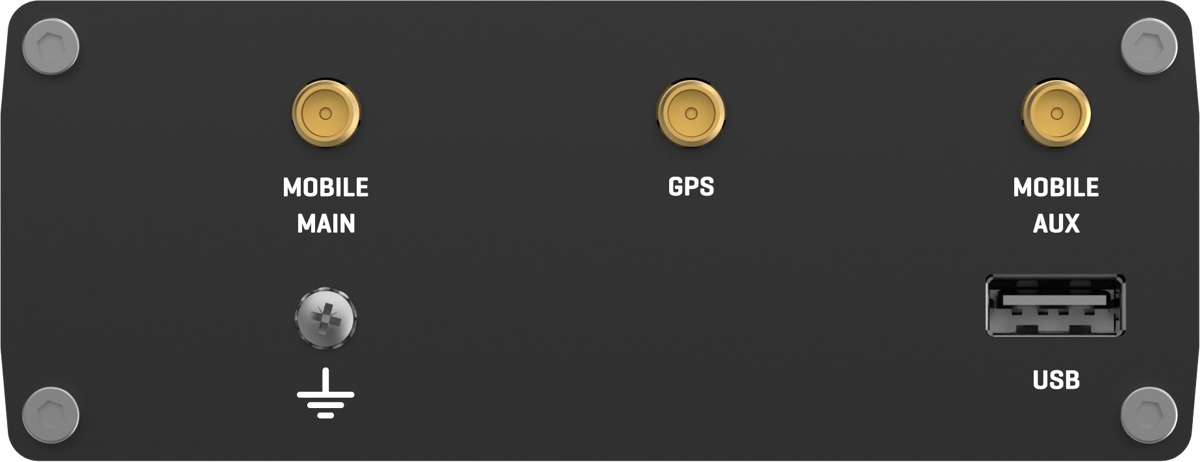

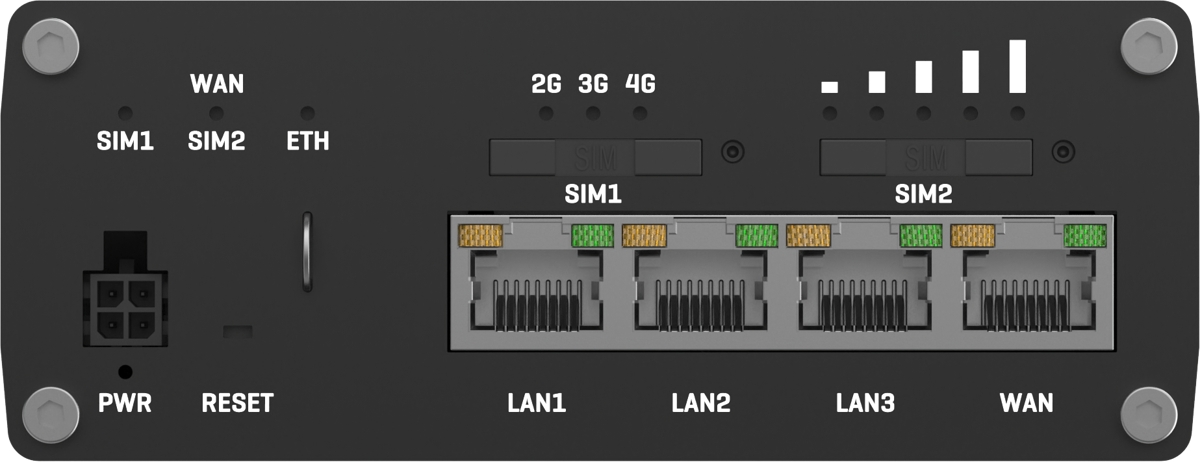

The Teltonika RUTX09 is an industrial 4G LTE router with WAN and SIM failover, (4) 1Gbps ports (3x LAN, 1x WAN), (3) SMA female connectors for (2) external 4G antennas and (1) GNSS antenna, (2) mini SIM slots and eSIM support.
The router is equipped with a modem supporting 4G LTE Cat. 6 and 3G, with data rates of up to 300Mbps downlink and 50Mbps uplink. Power can be supplied via the 4-pin DC connector (9-50 V) or passive PoE (9-50 V) on the LAN1 port.
Package contents
- Device
- (2) Mobile antennas
- GNSS antenna
- SIM adapter kit
- Patch cable, 1.5m
- Power adapter 12V/1.5A
Download
Technical parameters
LAN ports
Power over Ethernet
9 .. 50V DC
Operating mode
Cellular router
Wireless frequency
LTE, GNSS, 3G (GSM)
Type of antenna
Detachable
Detachable antennas
3
RF connectors
(3) SMA female
Power type
PoE, 4-pin automotive
Operating system
RutOS (OpenWrt based Linux OS)
LAN speed
(4) 10/100/1000Mbps
Max. power consumption [W]
9
Power via connector/terminal
9 .. 50V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
455
Width [mm]
115
Height [mm]
44
Depth [mm]
95
CPU
ARM Cortex A7
USB
Yes
IPv6 support
Yes
Default IP address
192.168.1.1
RAM [MB]
256
Default login and password
admin / (preset password, see label/engraving)
