TP-Link ER701-5G-Outdoor, 5G gateway

TP-Link ER701-5G-Outdoor, 5G gateway
Your price incl. VAT (20.0%)
0.00 EUR
Ordered for stock
Delivery No confirmed delivery date
TP-Link
Manufacturer
Product number
ER701-5G-Outdoor
Product Code
RL031.007
Warranty
36 months

Product description

The TP-Link ER701-5G-Outdoor is an outdoor 5G gateway with (1) 2.5G PoE-In port, (2) nano SIM slots, SIM failover, IP66 protection and easy app-guided alignment for the best signal. It is equipped with a modem supporting 5G, 4G LTE and 3G networks, with data rates of up to 7.01Gbps downlink and 1.25Gbps uplink, and uses 4x4 MIMO technology. It supports local management via Wi-Fi.


TP-Link ER701-5G-Outdoor Banner

Package contents

  • Device
  • Wall/pole/window mounts
  • Mounting accessories
  • Passive PoE injector
  • Patch cable

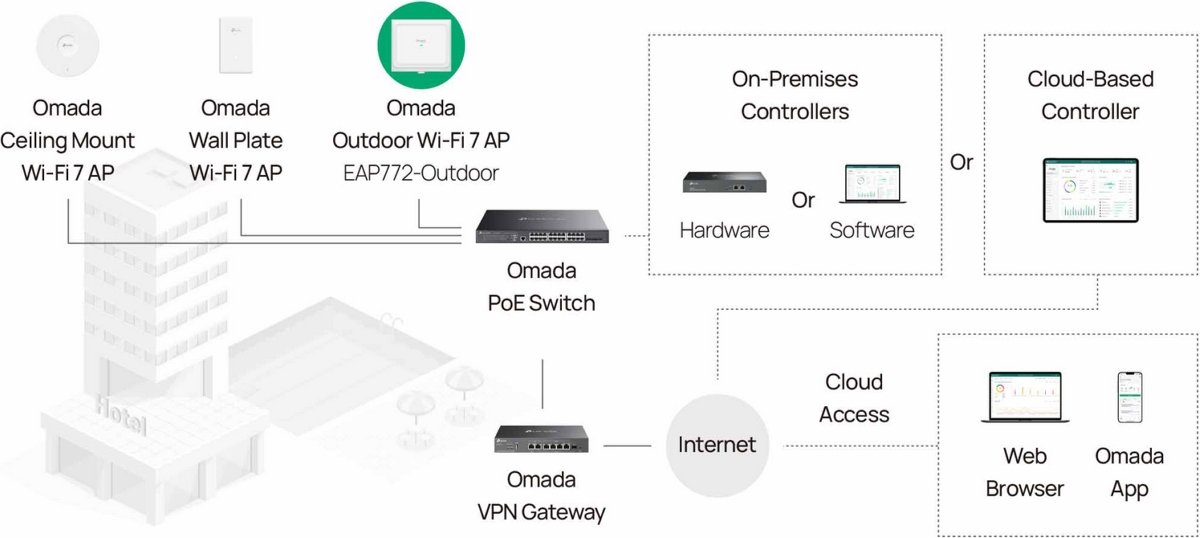

The easy way to centralized management

The Omada Software Defined Networking (SDN) platform integrates network devices, including Access Points, Switches, Gateway Routers, and provides 100% centralized cloud management. Omada creates a highly scalable network, including control from a single interface. It provides seamless wireless and wired connectivity, ideal for use in hospitality, education, retail, offices and more.

TP-Link Omada SDN Banner

Download

https://download.discomp.cz/TP-LINK/Datasheets/ER701-5G-Outdoor(EU)_Datasheet.pdf
Download Datasheet
https://download.discomp.cz/TP-LINK/Userguides/7100001623_ER701-5G-Outdoor-QIG.pdf
Download Quick Install Guide

Technical parameters

LAN ports
Power over Ethernet
802.3at, 48V DC
Protection class
IP66
Design
On the wall, On the mast
Operating mode
Cellular router
Wireless frequency
2.4 GHz, LTE, 3G (GSM), 5G (GSM)
WiFi standards
802.11n, 802.11b/g
Transmission speed - 2.4GHz [Mb/s]
150
Security
WPA-PSK/WPA2-PSK
2.4GHz MIMO
1 x 1 SISO
Type of antenna
Built-in
Internal antennas
10
Purpose
Outdoor
Integrated 4G/LTE radio part
Yes
4G/LTE bands support
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (26) 850 MHz, (28) 700 MHz, (32) 1500 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n26) 850 MHz
LAN speed
(1) 100/1000/2500Mbps
LAN ports 2.5G
1
Gigabit LAN
Yes
PoE type
PoE-In (only)
RJ45 ports 2.5G
1
Max. power consumption [W]
15
Buttons
Reset
Operating temperature [°C]
-30 up to 60
Width [mm]
110
Height [mm]
183
Depth [mm]
36
SIM slot
Yes
SIM slots quantity
2
RAM [MB]
2048
