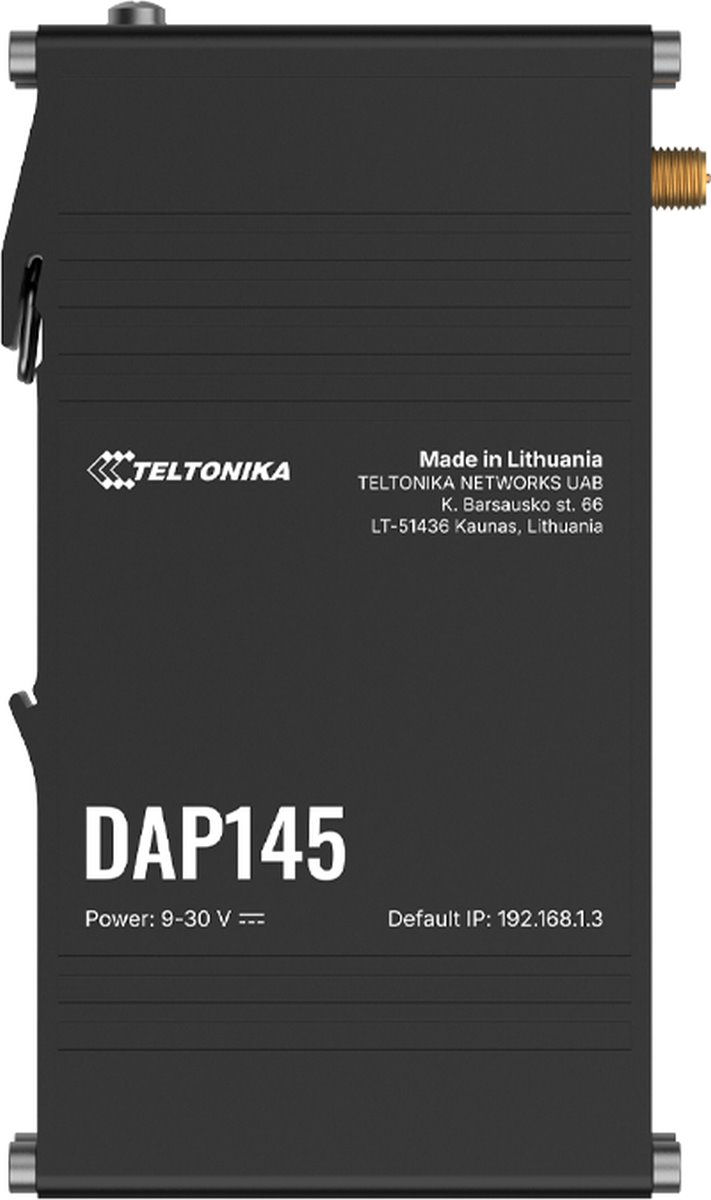

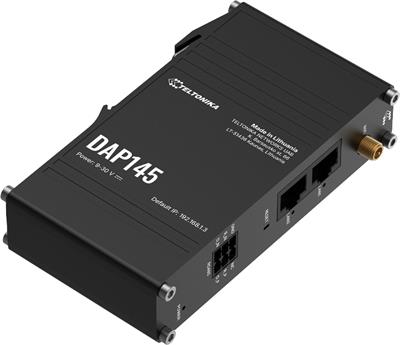

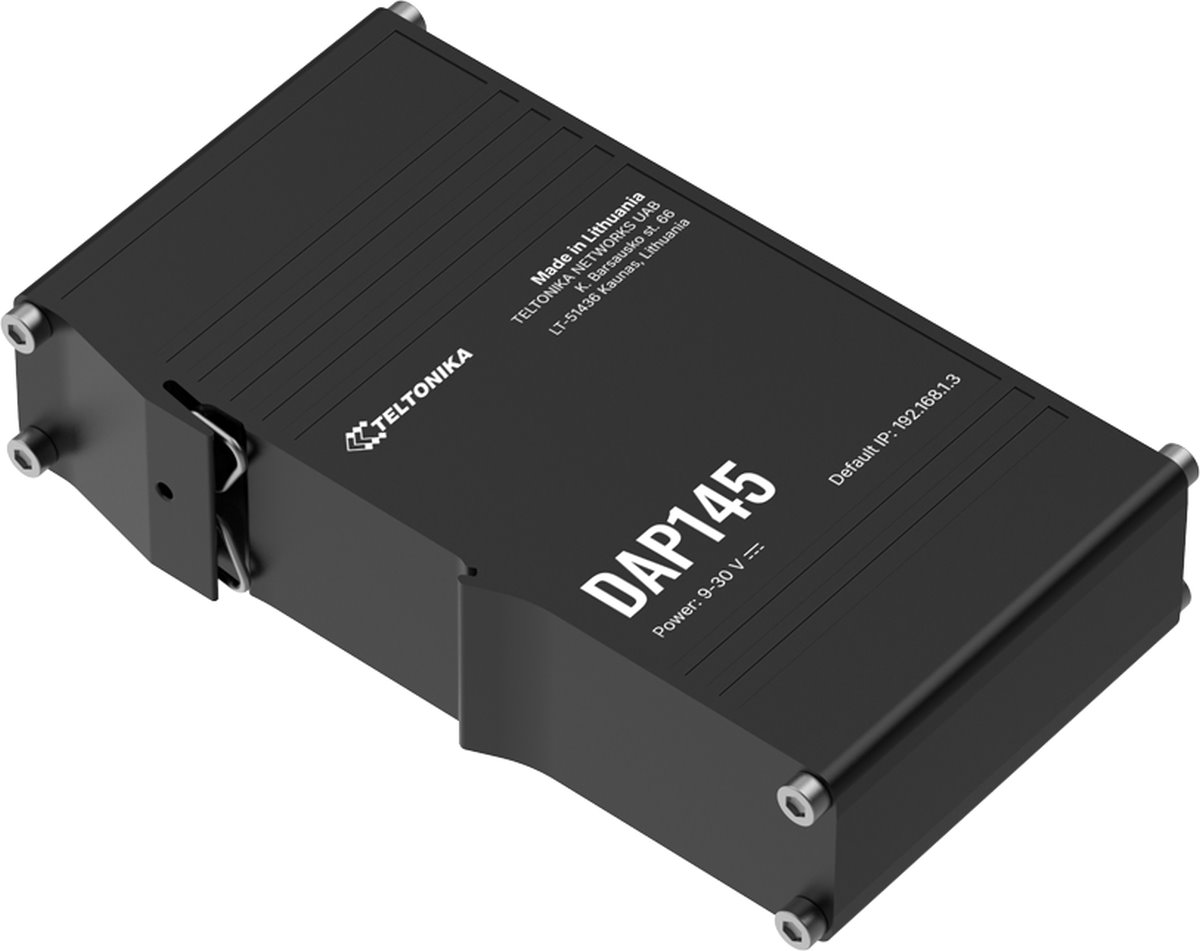

Teltonika DAP145 - Industrial Wireless Access Point
Your price incl. VAT (20.0%)
66.83 EUR
Ordered for stock
Planned Delivery Date by Courier to you 03-12-2025
Product description
The DAP145 is an industrial Wi-Fi access point with RS485 communication engineered for utilities, machine builders, and system integrators. It enables connecting wired industrial devices to modern IP networks without extensive cabling. The device functions as an access point or client (STA/Mesh/Fast roaming) and provides direct serial-to-IP bridging via its native RS485 port. Advanced RutOS tools like Data to Server and industrial protocol support facilitate secure data collection to the cloud, all managed remotely via the RMS platform.
Key features

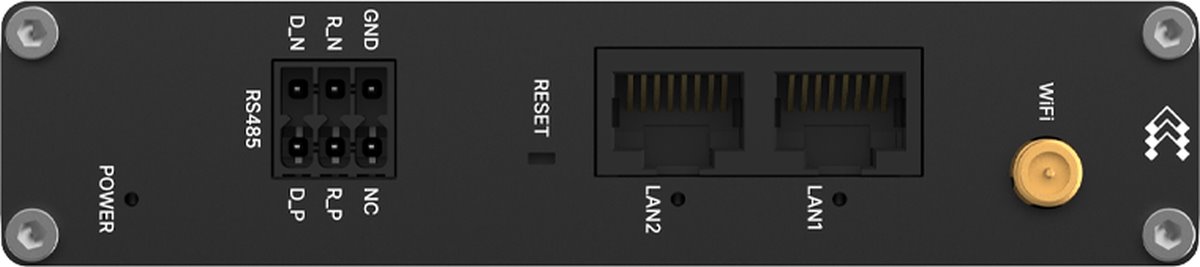

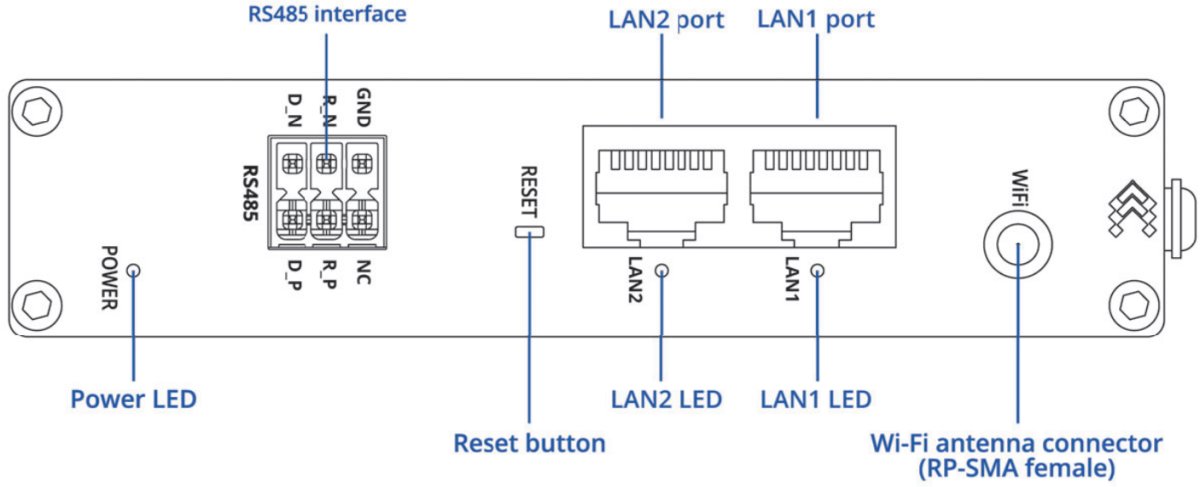

- Wi-Fi and RS485 Bridging: Bridge RS-485 devices to IP with Serial-over-IP and Modbus
- Flexible Wi-Fi modes: Mesh, STA, and Fast Roaming for coverage extension, backhaul, and industrial asset mobility
- Cloud-Ready Data Collection: Collect and convert industrial data with Data to Server tool and native protocol support

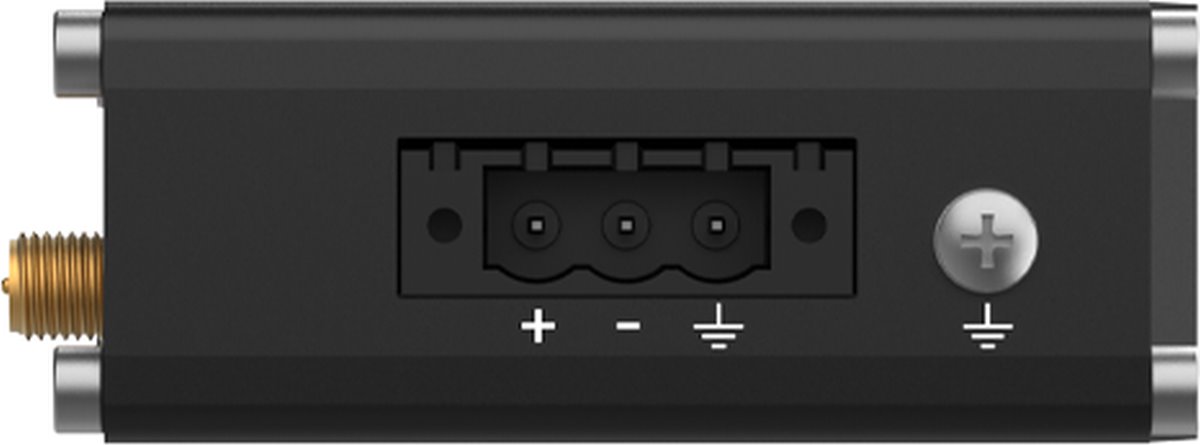

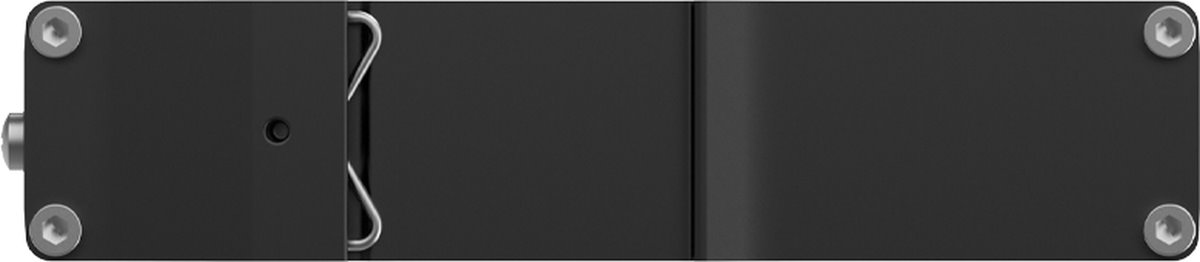

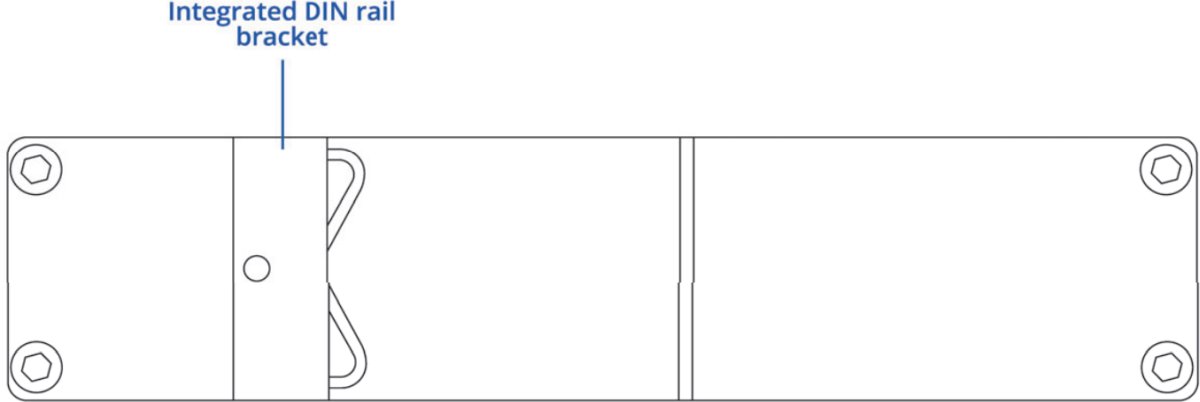

- Designed for Industry: Narrow footprint with integrated DIN rail mounting and top-entry terminal block power

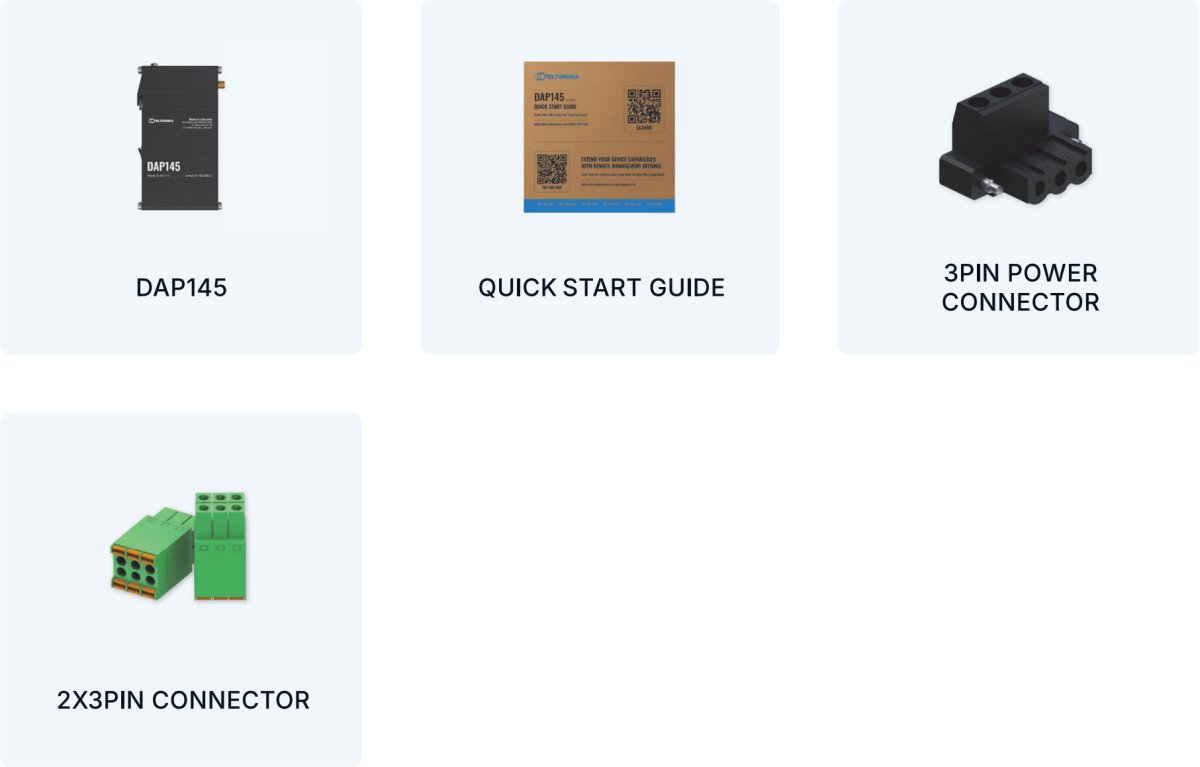

Package contents
- Device

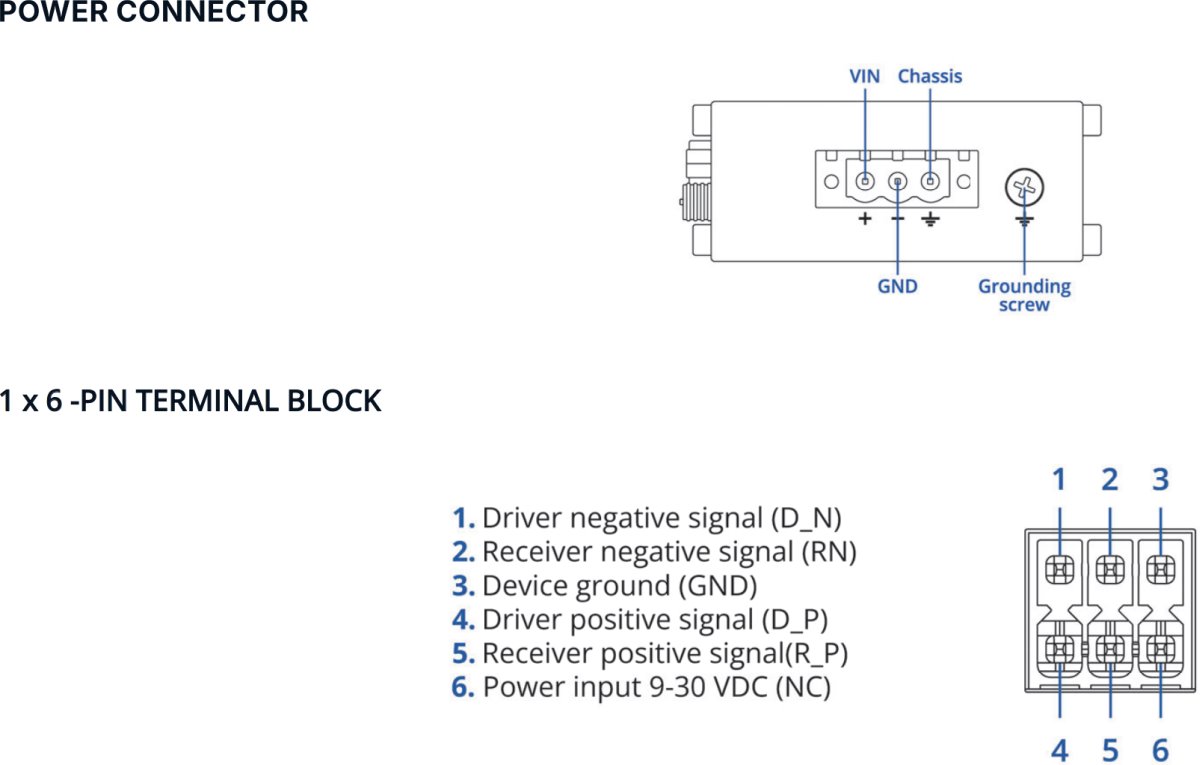

- 3PIN power connector
- (2) 3PIN connector
- Quick Start Guide
Download
Technical parameters
LAN ports
Power over Ethernet
9 .. 30V DC
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11n, 802.11b/g
RF connectors
(1) RP-SMA female
Operating system
RutOS (OpenWrt based Linux OS)
LAN ports
1
Serial port
RS-485
CPU
Mediatek, 580 Mhz, MIPS 24KEc
RAM [MB]
128
