Product description
The GWN7820 series are Layer 3 multi-gigabit managed PoE switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable.
Key features
- (8) 2.5G ports, 2 SFP+ ports
- Smart power control to support dynamic PoE/PoE+ and PoE++
- Supports deployment in IPv6 and IPv4 networks
- Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
- ACL filtering of data packets by configuring matching rules, processing operations, and time schedules, and provides flexible security access control policies
- Built-in QoS allows for prioritization of network traffic
- Management options include: Embedded controller; GDMS Networking and GWN Manager, Grandstream’s free cloud and on-premise network management platform; CLI management; GWN router
- Supports stacking for easy management on one interface while creating redundant backup between multiple devices

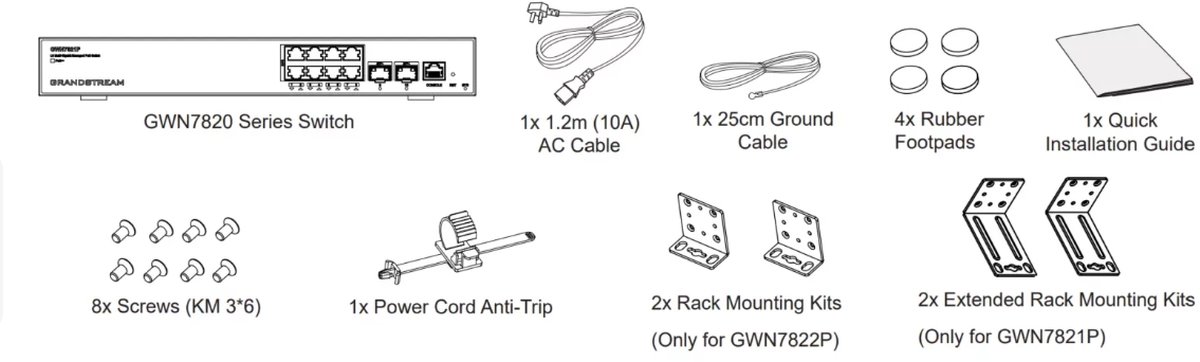

Package contents
Download
Technical parameters
LAN ports
Design
On the wall, Desktop, Rackmount
Switchning capacity [Gbps]
80
Packet forwarding rate [Mpps]
59,5
Web management
Yes
Management
Web management, SSH, Telnet, Cloud (GDMS)
Features
L3, VLAN, QoS, DHCP snooping
Power type
Mains power (230V)
Fans
Yes
LAN ports
8
LAN speed
(8) 100/1000/2500 Mbps
Max. LAN ports speed
2.5G
PoE type
PoE-Out (only)
RJ45 ports 2.5G
8
SFP+ cages
2
Optical interfaces
(2) 10Gbps
PoE-Out standards
802.3af, 802.3at, 802.3bt
Redundant power supply
Yes
PoE Out ports
8
PoE budget [W]
240
Chassis design
Metal
Power via connector/terminal
100-240 V AC~50/60 Hz
Buttons
Reset
Operating temperature [°C]
0 up to 45
Weight [g]
1900
Width [mm]
330
Height [mm]
44
Depth [mm]
175
Default IP address
192.168.0.254
Default login and password
admin / (preset password, see label/engraving)
