Product description
The goods have been unpacked, may not be in the original packaging, or the packaging may be damaged. However, the goods are complete and without any damage.
Product condition: New, broken original packaging seal, full warranty.
N-SW is very simple non managable PoE switch with 4x Gigabit LAN with passive PoE powering.

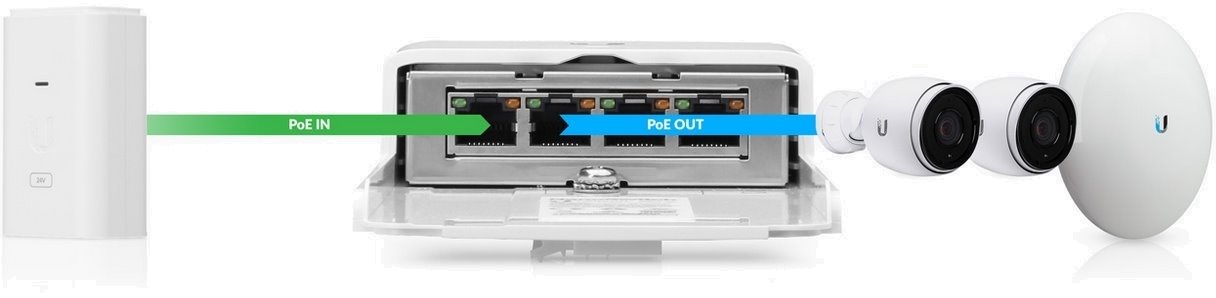

PoE Passthrough

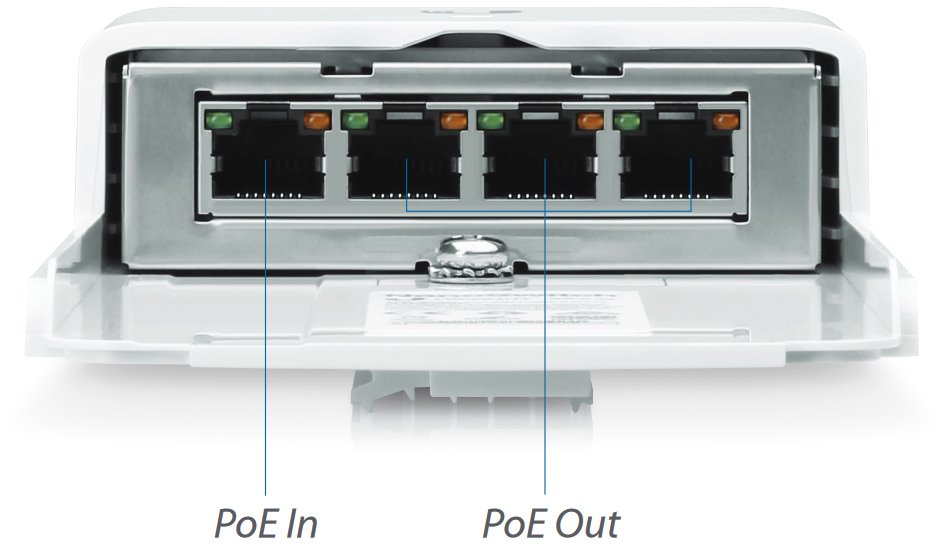

PoE In — RJ45 port supports 10/100/1000 Ethernet connections, and supports passive 24V, 2-pair PoE to power the switch.
PoE Out — RJ45 ports support 10/100/1000 Ethernet connections, and the three passive 24V, 2-pair PoE ports provide up to 24W PoE output.

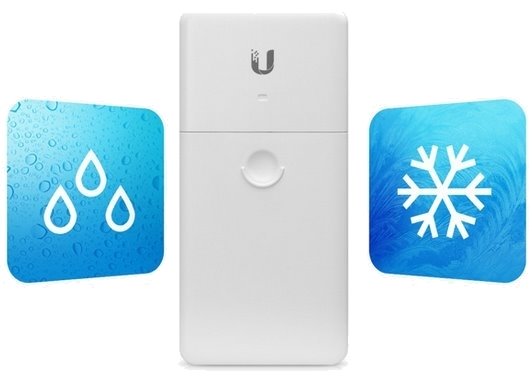

Designed for Outdoor Durability
The NanoSwitch features an outdoor weatherproof form factor. Operating Temperature: -30 to 70° C (-22 to 158° F).
Package contains
- Device
- Screw
- (2) Metal ring
Download
Technical parameters
LAN ports
Power over Ethernet
21 .. 26V DC
Design
Outdoor
Switchning capacity [Gbps]
4
Power type
PoE
Fans
No
LAN ports
4
LAN speed
(4) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out + PoE-In
PoE-Out standards
Passive 24V
PoE Out ports
3
PoE budget [W]
24
Max. power consumption [W]
1,5
Chassis design
Plastic
Operating temperature [°C]
-30 up to 70
Width [mm]
94
Height [mm]
196
Depth [mm]
32
