JIROUS JRMC-680-80 - Parabolic Antenna with Mount for 80GHz Band

Your price incl. VAT (20.0%)

420.42 EUR

❌ The item is not available. There is no option to order.

No confirmed delivery date

Add to Cart

Manufacturer

Jirous

Product number

JRMC-680-80

Product Code

RL028.391

Warranty

23 months

Having a question?

• Related products

Anti-icing spray WX2100WX2100

37.15 EUR excl. VAT

•
• Download

Product description

Description:

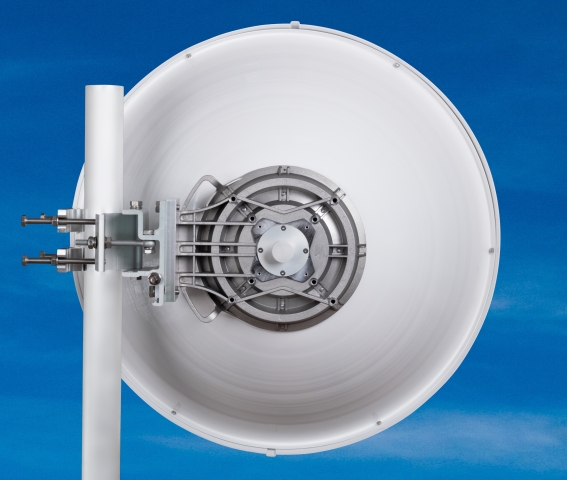

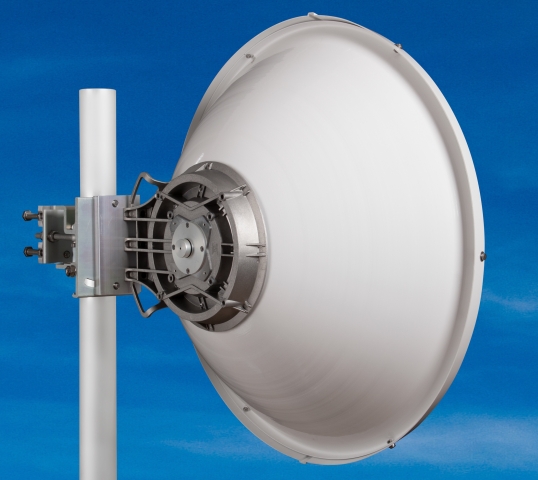

Deep parabolic antenna with high interference resistance and strong mechanical durability

High isolation between adjacent links

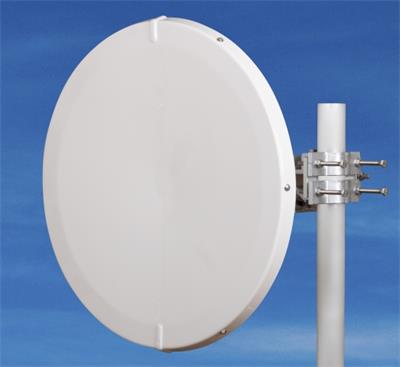

Radome included in the package

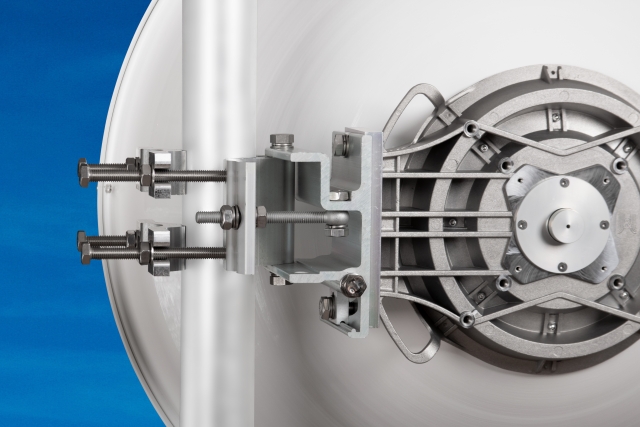

Heavy-duty JDMW-910 mount with extra fine elevation and azimuth adjustment

Supports both right and left mounting

Extreme wind resistance

Supported Radio Unit Interfaces:

Overview of compatible adapters for various units (must be ordered separately):

Racom – no adapter required

Ceragon, Cambium

Aviat

Mimosa B-11

Siklu

Ubiquiti AF-11

Remec, Wavelab, Zenith

Summit Development

Ericsson

SIAE

Alcoma

Other adapters available on request

Technical Specifications:

Frequency range: 71 – 86 GHz

Gain at lower frequency: 50.7 ± 1.4 dBi

Gain at upper frequency: 51.6 ± 1.4 dBi

Beamwidth (-3 dB): 0.4°

Front-to-back ratio: ? 67 dB

ETSI EN 302-217-4-2 v1.5.1: Class 3

US FCC: Cat. A

Polarization: Depends on radio unit installation; linear – horizontal and vertical

Reflector: 680 mm diameter – aluminum alloy, powder-coated

Radome: UV-stabilized plastic

Connection: 3.2 mm waveguide

Pole mount: O 40 – 120 mm

Operational wind speed: max. 180 km/h

Survival wind speed: max. 240 km/h

Download

https://download.discomp.cz//Jirous/Datasheets/jrmc-680-80_302.pdf

Datasheet

Technical parameters

LAN ports

Polarization

V or H

Designed for mast diameter [mm]

40 up to 120

Wind load [km/h]

240

Radom

Yes

Frequency range [MHz]

71000 - 86000

Antenna gain [dBi]

51

Material

Aluminum alloy

Weight [g]

5200

Width [mm]

800

Height [mm]

800

Depth [mm]

350
